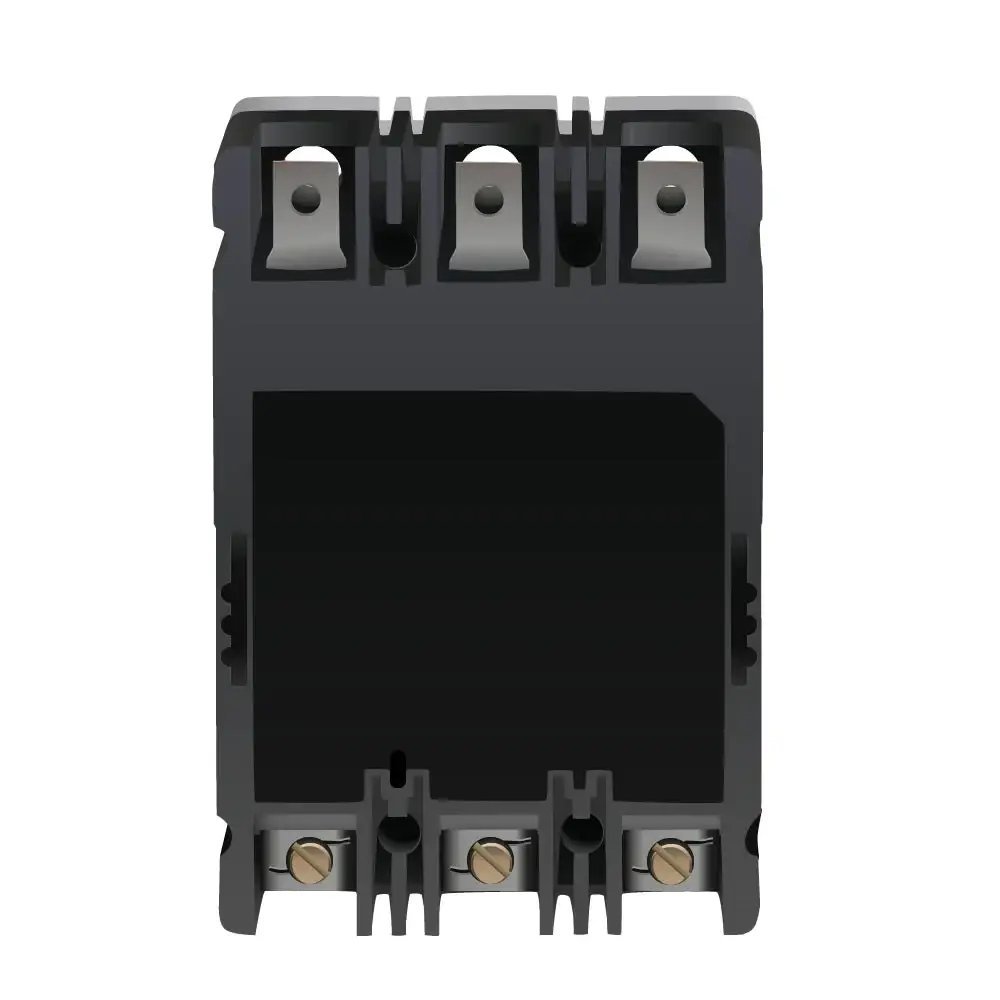

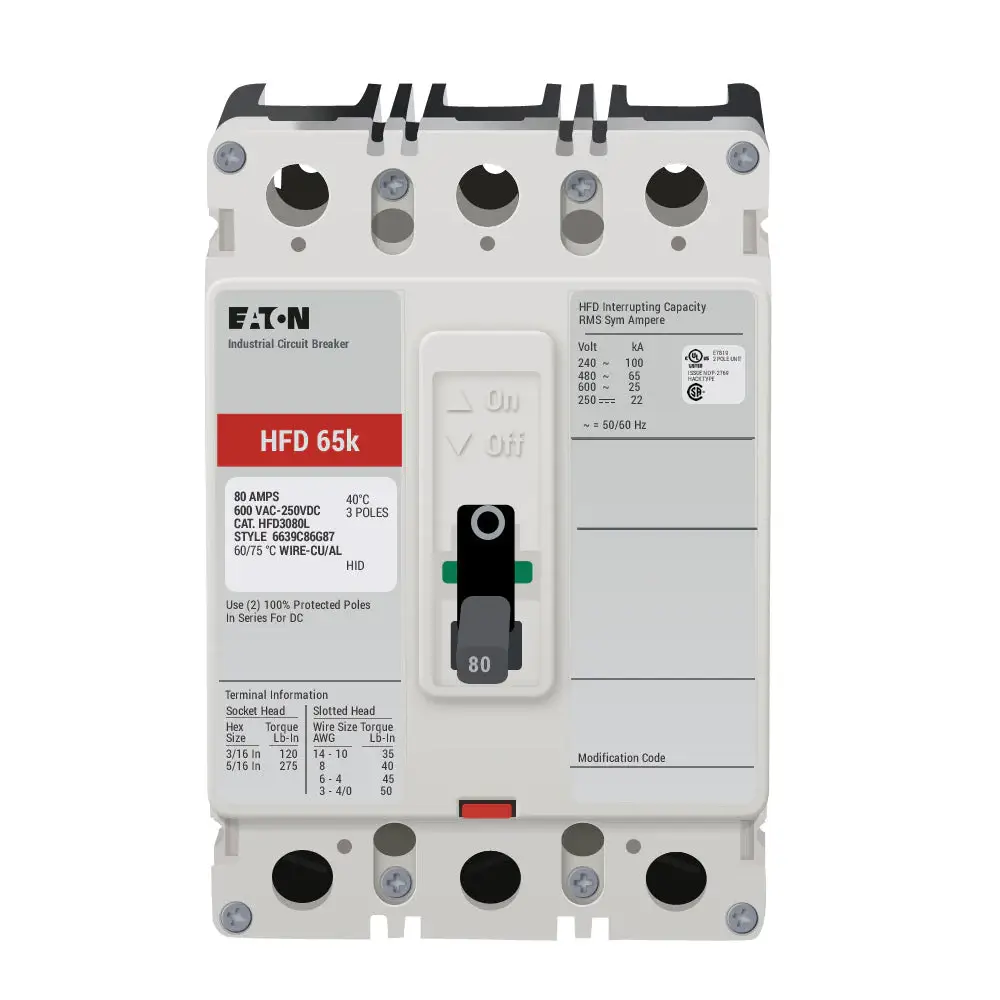

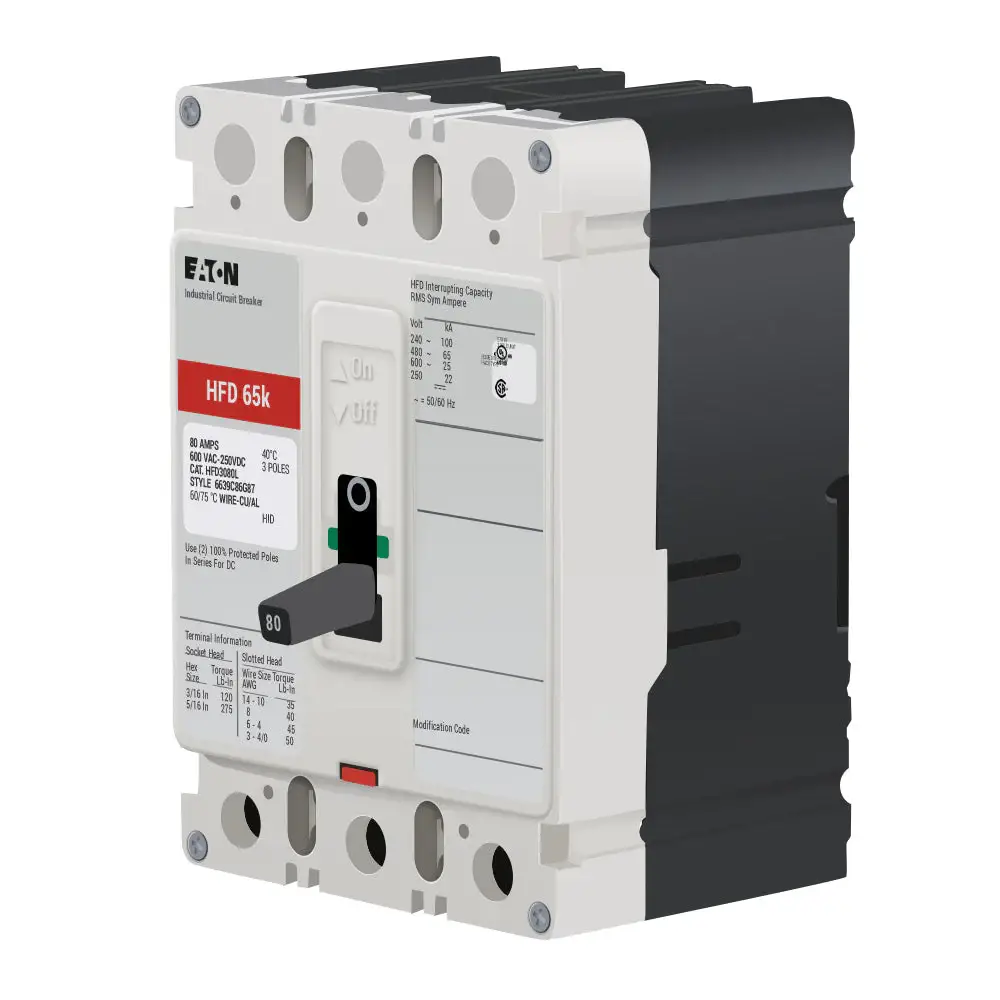

FavoriteHFD3080 – Eaton – Moded Case Circuit Breaker Feed Thru – 80 Amp – 3 Pole – 600 Volt
$910.99
Description
The Eaton HFD3080 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 80 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 100kAIC at 240VAC, 65kAIC at 480VAC, 25kAIC at 600VAC. The HFD3080 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Type | Molded Case- Thermal Magnetic |
| Frame Type | FD |
| Voltage Rating | 600 Volt AC at 50/60 Hertz- 250 Volt DC |
| Maximum AC Voltage Rating | 600 Volt |
| Maximum DC Voltage Rating | 250 Volt |
| Current Rating | 80 Amp at 40 Deg C |
| Number of Poles | 3 |
| Interrupting Rating | 100 Kiloamp at 240 Volt AC at 50/60 Hertz- 65 Kiloamp at 480 Volt AC at 50/60 Hertz- 25 Kiloamp at 600 Volt DC- 22 Kiloamp at 250 Volt DC |
| Terminal Type | Standard Pressure Load |
| Size | 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height |
| Approval | UL 489- CSA C22.2 |
| Model | C- HFD |
| Additional Information | Includes Load Terminal- Applicable Standard NEMA AB1- AS 2184- BS 4752- IEC 157-1- SABS 156- SEV 157-1- VDE 0660 |
| Features/Benefits | All Eaton’s F-Frame Circuit Breakers are HACR Rated- All F-Frame Circuit Breakers are Suitable for Reverse Feed Use |
Additional information
| Weight | 5 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
