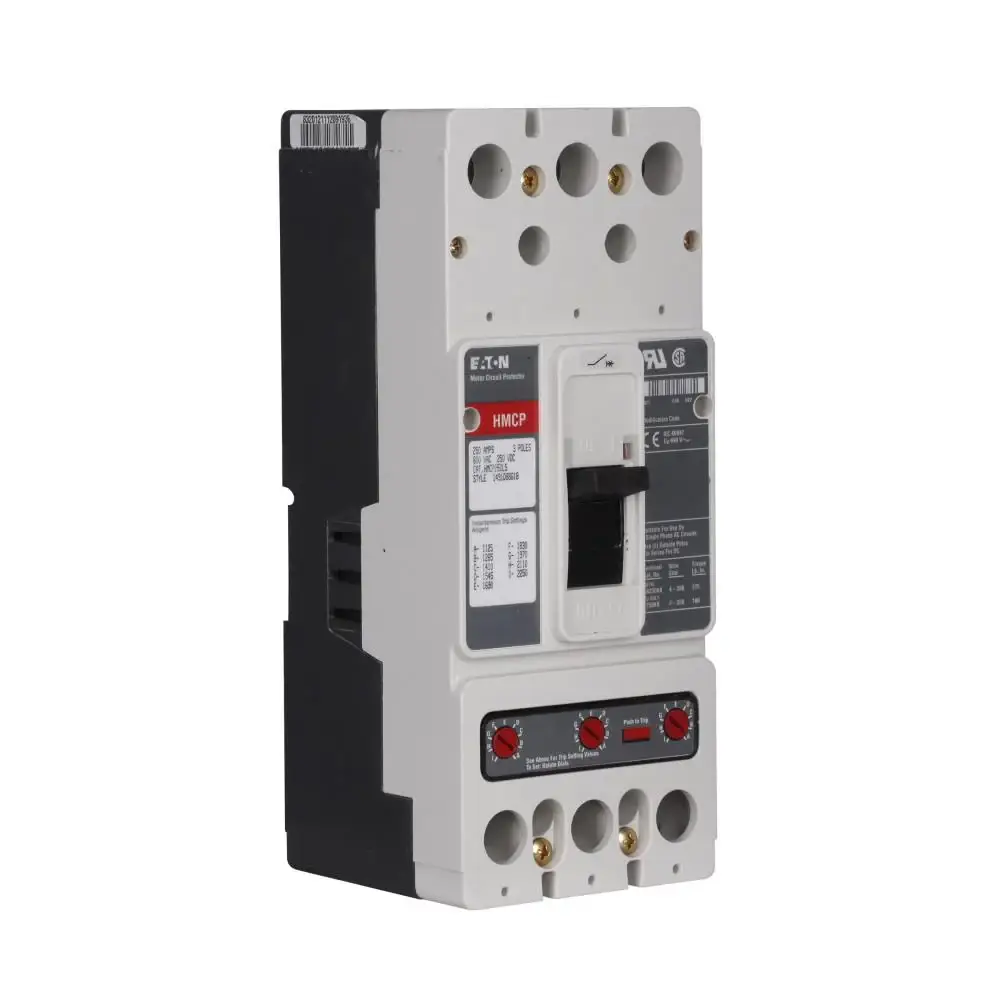

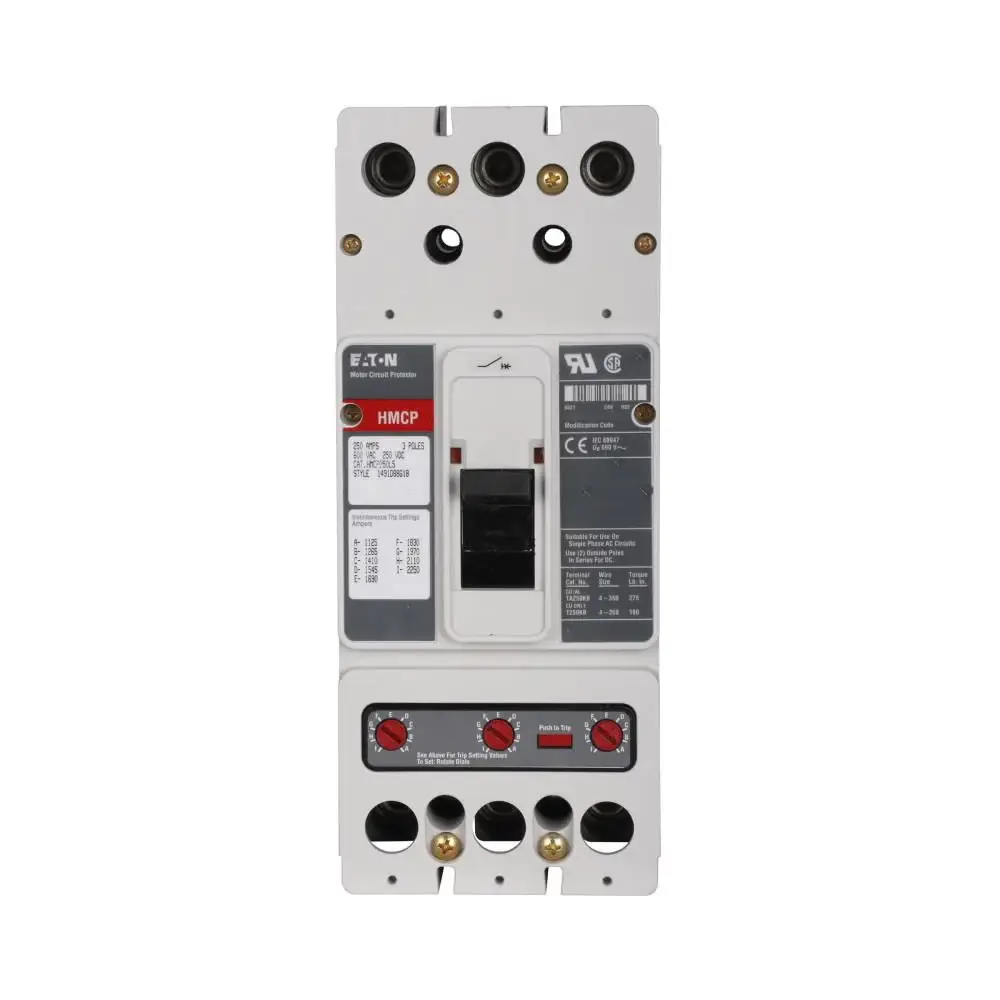

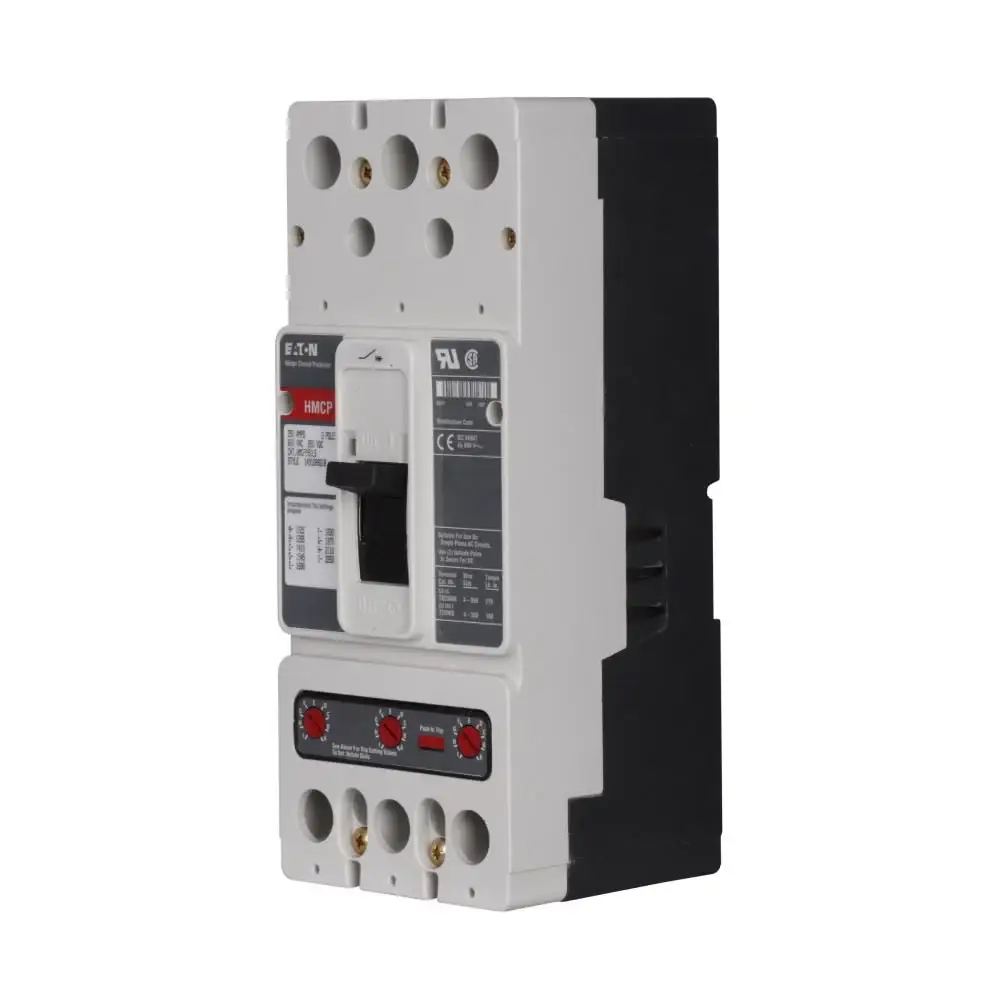

HMCP250W5C – Eaton – Molded Case Circuit Breaker Feed-Thru – 250 Amp – 3 Pole – 600 Volt

SKU: HMCP250W5C Categories: , ,

$1,439.99

Description

The Eaton HMCP250W5C is a 3 Pole magnetic molded case circuit breaker with a current rating of 250 Amps and a voltage rating of 600V. It has an interrupting rating of 35kA@480V. The HMCP250W5C has a feed-thru connection type and includes I – instantaneous functions.

Specifications

Type Molded Case- Magnetic
Frame Type J
Voltage Rating 600 Volt AC- 250 Volt DC
Maximum AC Voltage Rating 600 Volt
Maximum DC Voltage Rating 250 Volt
Current Rating 250 Amp
Number of Poles 3
Trip Setting 1250 to 2500 Amp
Starter Size NEMA 5
Motor FLA 96.2 to 204 Amp
Terminal Type Non-Aluminum Line and Load Terminal
Size 4.06 Inch Width x 4.13 Inch Depth x 10 Inch Height
Approval UL 489- CSA C22.2- CE
Model C- HMCP
Additional Information RoHS/ATEX Compliant- Applicable Standard IEC 157-1
