FavoritePrice range: $479.99 through $874.99
| Brand | Square D |
| Series | FA |
| Amperage | 70 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | I-Line |
| Approval | UL, CSA |
| Interrupting Rating | 18kAIC at 480V |
| Frame Type | FA |
| Connection Type | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI – Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Length (in) | 4.13 |
| Width (in) | 4.5 |
| Height (in) | 6.4 |
| Standards | HACR |
| Temperature Rating | 40 °C |
| Mpn | FA36070 |

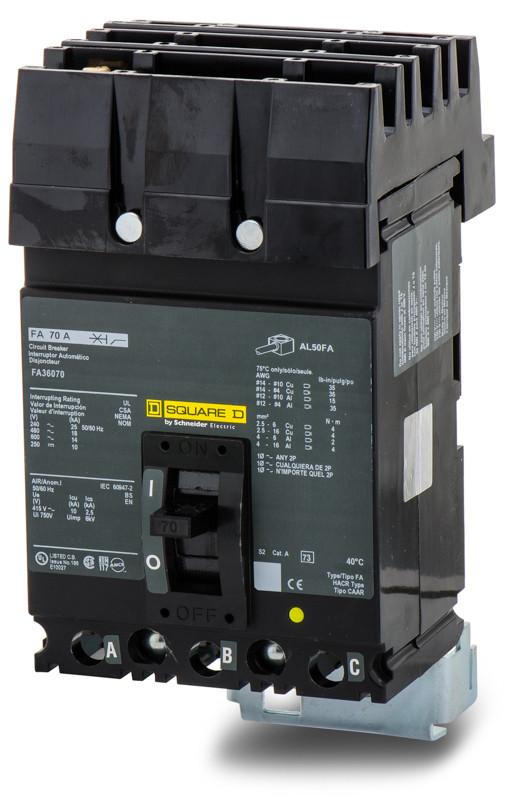

The Square D FA36070 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 70 Amps and a voltage rating of 600VAC. It has an interrupting rating of 18kAIC at 480V. The FA36070 has an I-Line style plug-in connection type and includes LI – long-time and instantaneous trip functions.
| Weight | 14 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
