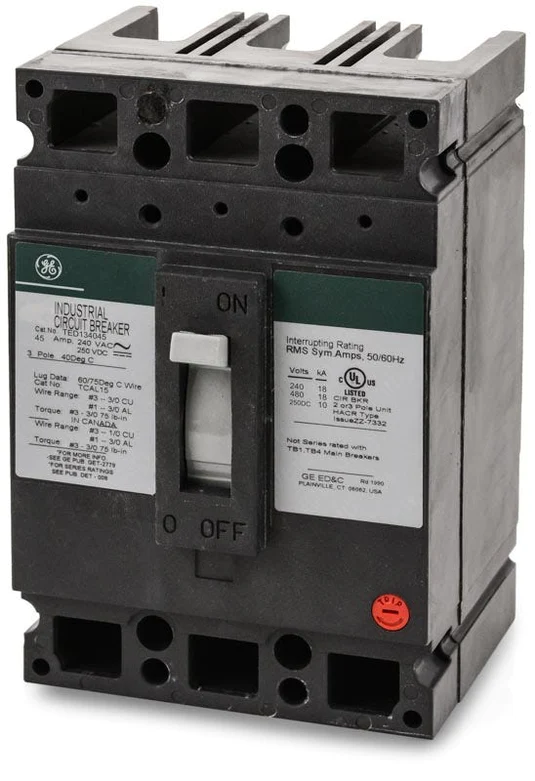

FavoriteTED134045WL – GE – Molded Case Circuit Breaker Feed-Thru – 45 Amp – 3 Pole – 480 Volt
$424.99
Description
The General Electric TED134045WL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 45 Amps and a voltage rating of 480VAC, 250VDC. It has an interrupting rating of 18kAIC@480V. The TED134045WL has a panel mounting type and includes long time and instantaneous trip functions.
Specifications
| Type | Thermal Magnetic |
| Frame Type | E150 |
| Voltage Rating | 120/240/277/480/600 Volt AC- 125/250/500 Volt DC |
| Maximum AC Voltage Rating | 600 Volt |
| Maximum DC Voltage Rating | 500 Volt |
| Current Rating | 45 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 14 Kiloamp at 600 Volt AC- 18 Kiloamp at 120/240/277/480 Volt AC- 10 Kiloamp at 125/250/500 Volt DC |
| Terminal Type | Copper/Aluminum Line and Load Lug |
| Approval | UL |
| Additional Information | Trip Function LI- Application HACR |
| Features/Benefits | The E150 Product Line Consist of Thermal Magnetic Circuit Breaker- Magnetic Circuit Breaker and Molded-Case Switch Rated up to 150 Amps and 600 Volts AC |
Additional information
| Weight | 8 lbs |
|---|---|
| Condition | New |
| GTIN |
