TED134150WL – GE – Molded Case Circuit Breaker Feed-Thru – 150 Amp – 3 Pole – 450 Volt

SKU: TED134150WL Categories: ,

$639.99$921.99

Description

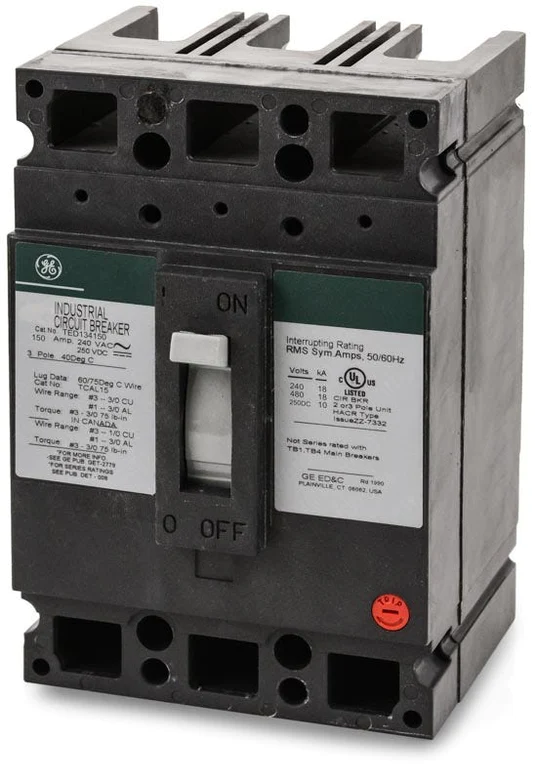

The General Electric TED134150WL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 150 Amps and a voltage rating of 600VAC, 500VDC. It has an interrupting rating of 18kA at 240/480VAC, 14kA at 600VAC, 10kA at 500VDC. The TED134150WL has a feed-thru connection type and includes LI – long time and instantaneous functions.

Specifications

Type Thermal Magnetic
Frame Type E150
Voltage Rating 120/240/277/480/600 Volt AC- 125/250/500 Volt DC
Maximum AC Voltage Rating 600 Volt
Maximum DC Voltage Rating 500 Volt
Current Rating 150 Amp
Number of Poles 3
Interrupting Rating 14 Kiloamp at 600 Volt AC- 18 Kiloamp at 120/240/277/480 Volt AC- 10 Kiloamp at 125/250/500 Volt DC
Terminal Type Copper/Aluminum Line and Load Lug
Approval UL
Additional Information Trip Function LI- Application HACR
Features/Benefits The E150 Product Line Consist of Thermal Magnetic Circuit Breaker- Magnetic Circuit Breaker and Molded-Case Switch Rated up to 150 Amps and 600 Volts AC
