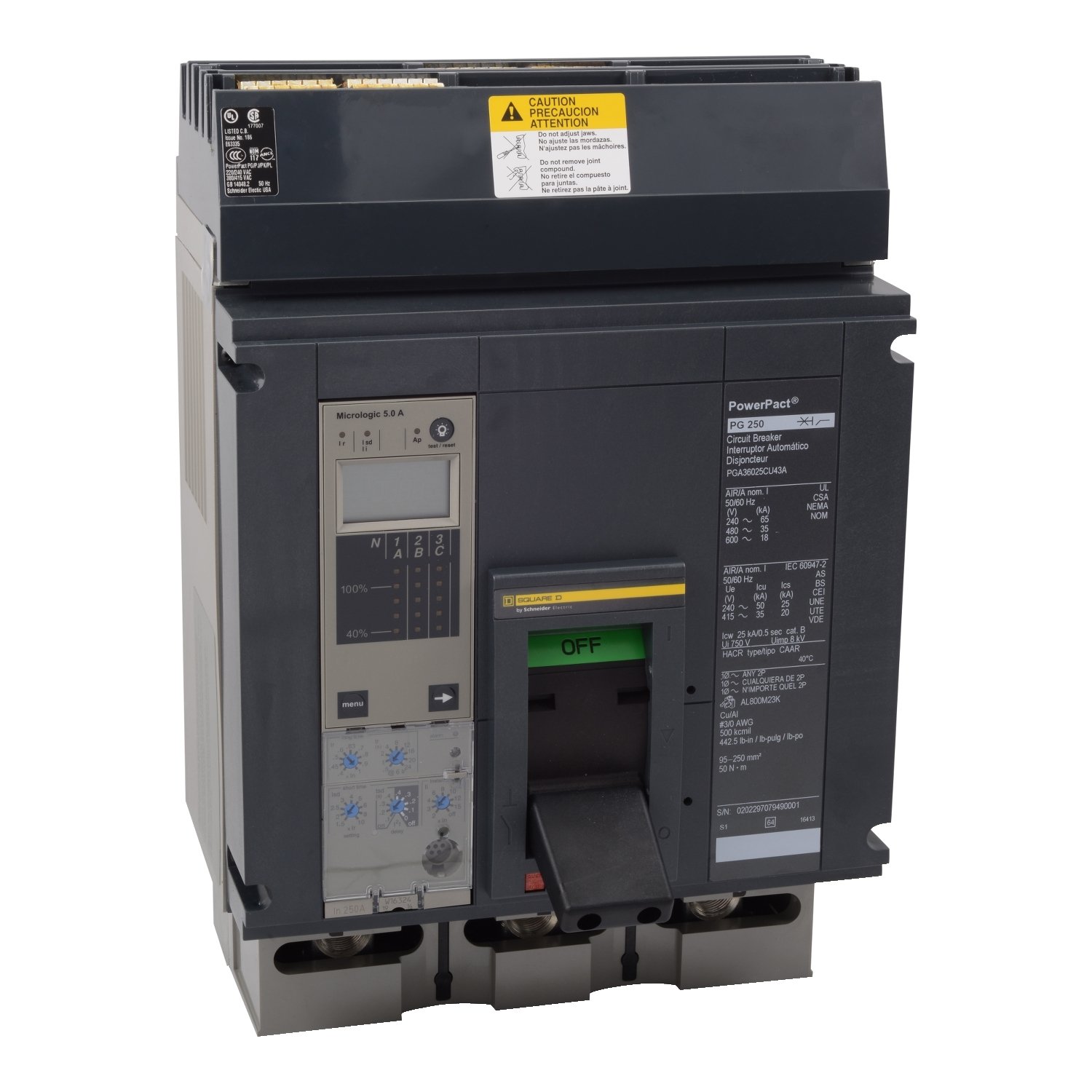

PGA36025CU43AE1 – Circuit breaker, PowerPacT P, 250A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 5.0A, 100%, ABC

SKU: PGA36025CU43AE1 Categories: ,



PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn’t have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 5.0A trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 250A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.


Range PowerPact
Product name PowerPact P
Product or Component Type Circuit breaker
Device Application Distribution
Line Rated Current 250 A
Number of Poles 3P
control type Toggle
Breaking capacity code G
Breaking capacity AIR 65 kA 240 V AC 50/60 Hz UL 489
AIR 35 kA 480 V AC 50/60 Hz UL 489
AIR 18 kA 600 V AC 50/60 Hz UL 489
Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2
Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage 600 V AC 50/60 Hz UL 489
Network Frequency 50/60 Hz
[Ics] rated service breaking capacity 25 kA 240 V AC 50/60 Hz IEC 60947-2
20 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV IEC 60947-2
Trip unit technology Electronic, ammeter, MicroLogic 5.0 A, LSI
Continuous current rating 100 %
[Ui] rated insulation voltage 750 V IEC 60947-2
Trip unit name MicroLogic 5.0 A
AWG gauge 3 x AWG 3/0…500 kcmil aluminium/copper
Local signalling 1 trip indicator green)
Mounting mode I-Line bracket)
Mounting Support Bracket
Electrical connection I-Line connection, line
Lugs, load
Terminal identifier AL800M23K
long time pick-up adjustment range 0.4…1 x Ir
mounting height 9 in (228.60 mm)
Tightening torque 442.54 (50 N.m) 0.15…0.37 in² (95…240 mm²) (3 x AWG 3/0…500 kcmil)
8.85…11.51 (1.0…1.3 N.m)
Number of slots 2 auxiliary switch OF plug-in)
1 alarm switch SD plug-in)
1 overcurrent trip switch SDE plug-in)
1 voltage release MN or MX plug-in)
Power wire stripping length 0.98 in (25 mm)
Height 12.86 in (326.64 mm)
Width 8.27 in (210.06 mm)
Depth 8.05 in (204.47 mm)
Net Weight 32 lb(US) (14.51 kg)
Quantity per Set 1
Phase connection ABC
circuit breaker application HACR rated
