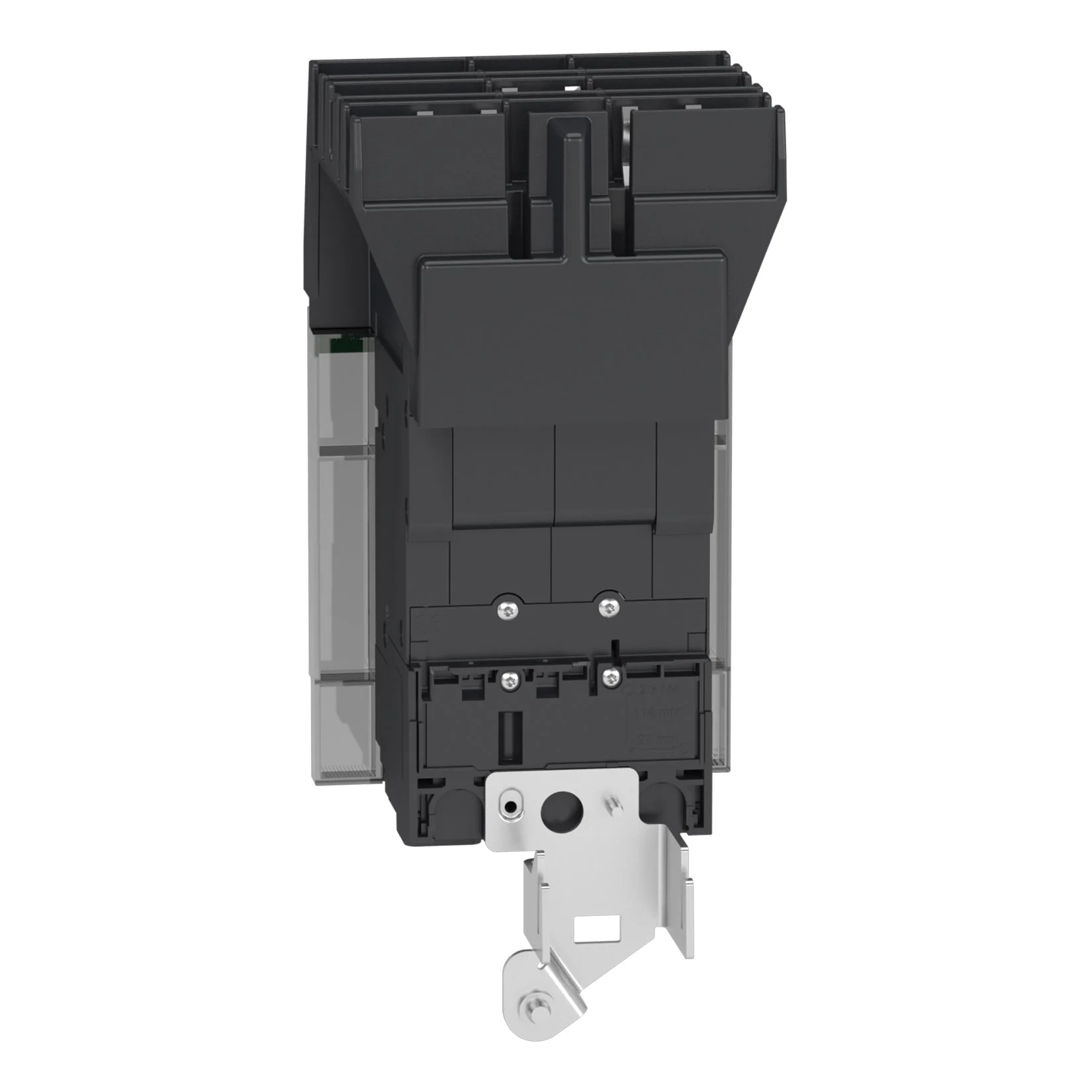

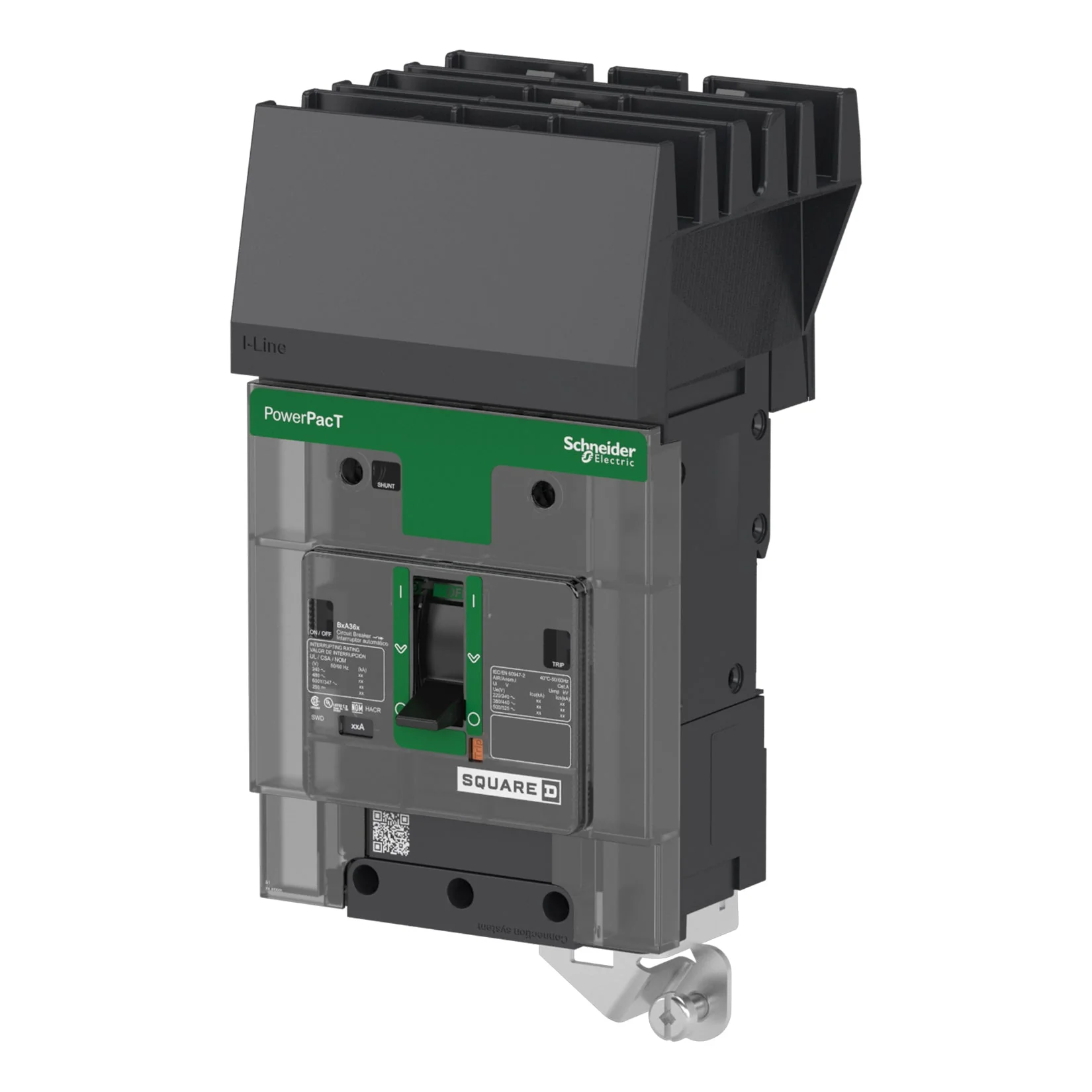

BJA36030 – Square D – Molded Case Circuit Breaker I-Line Plug-In – 30 Amp – 3 Pole – 600 Volt

SKU: BJA36030 Categories: , ,

$834.99

Description

Square D 3 pole circuit breaker features a thermal magnetic molded case for extra protection. The circuit breaker has a current rating of 30 amps with a voltage rating of 600 v. It has an interrupt rating of 100 kA 208Y/120 V AC 50/60 Hz UL 489, 100 kA 240 V AC 50/60 Hz UL 489, 65 kA 480/277 V AC 50/60 Hz UL 489, 65 kA 480 V AC 50/60 Hz UL 489, 25 kA 600Y/347 V AC 50/60 Hz UL 489, 50 kA 250 V DC UL 489.

Specifications

Type Thermal Magnetic
Frame Type B
Voltage Rating 600 Star/347 Volt AC 50/60 Hertz- 250 Volt DC
Maximum AC Voltage Rating 347 Volt
Maximum DC Voltage Rating 250 Volt
Current Rating 30 Amp
Number of Poles 3
Interrupting Rating 25 Kiloamp at 600 Star/347 Volt- 50 Kiloamp at 250 Volt DC
Terminal Type I-Line Connection Line Lug Load
Size 3.19 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
Approval UL- CSA- CE
Brand Name PowerPact™
Model BJ
Additional Information RoHS/REACH Compliant- Trip Setting 480 Amp (Hold)- 720 Amp (Trip)- Mounting Type I-Line- Control Type Toggle- Terminal Wire Size 14 to 2/0 AWG (Copper/Aluminum)- Continuous Current Rating 80 Percent- Phase Connection Type ABC- Operation Ambient Air Temperature Rating -13 to 158 Deg F- Application Distribution- Applicable Standard EAC- NOM- IEC- CCC- NEMA AB1- EN/IEC 60947-2/60947-5-1- NMX J-266- GB 14048.2
Features/Benefits This Powerpact B-Frame Circuit Breaker Provides Thermal Magnetic Circuit Protection with a Breaking Capacity of 25 Kiloamp at 600Y/347 Volt AC- All Powerpact B-Frame Circuit Breakers are Equipped with Dual Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product
