8536SFO1V02S – Square D – Electric Motor Starters 135 Amp – 3 Pole – 600 Volt

SKU: 8536SFO1V02S Categories: , , ,

$2,849.99

Description

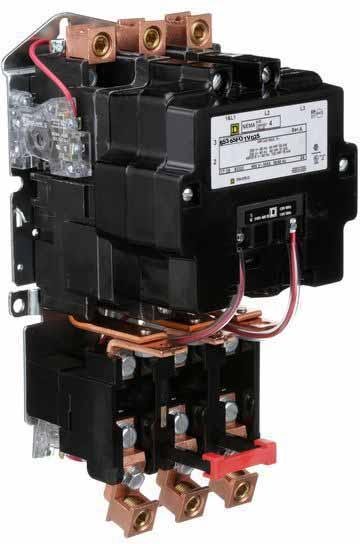

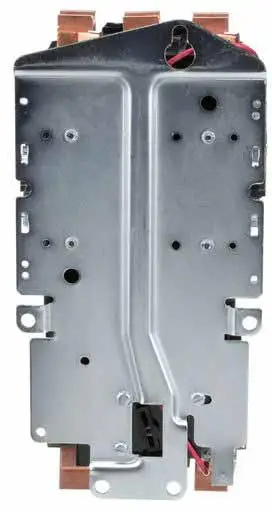

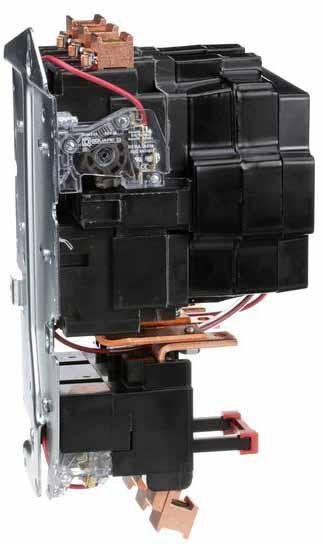

The Square D 8536SFO1V02S is a 3 Pole starter with a current rating of 135 Amps and a voltage rating of 600VAC. It has a coil volts of 110V at 50Hz, 120V at 60Hz. The 8536SFO1V02S has a surface mounting type and it is used for full voltage starting and stopping of AC squirrel cage motor applications.

Specifications

Type Full Voltage- Non-Reversing- Separate Control Circuit
Power Rating/Voltage 40 HP at 200 Volt AC- 50 HP at 230 Volt AC- 100 HP at 460/575 Volt AC- 600 Volt AC (Maximum)
Current Rating 135 Amp (Rated)- 10 Kiloamp (SCCR)
Phase 3
Coil Voltage 110/120 Volt AC 50/60 Hertz
Size NEMA 4
Enclosure Type Open
Overloads Melting Alloy
Construction Standard NEMA
Model 8536
Additional Information REACH Compliant- Overall Dimension 6 Inch Width x 6.5 Inch Depth x 12.88 Inch Height- Number of Poles 3- Terminal Type Screw Clamp- Approval UL- CSA
Features/Benefits Type S Magnetic Starters are Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors- This Non-Reversing NEMA Motor Starter has a Melting Alloy Type Overload Relay that Uses Type B Thermal Units to Sense Over Current Conditions- REACH Compliant
