In stock

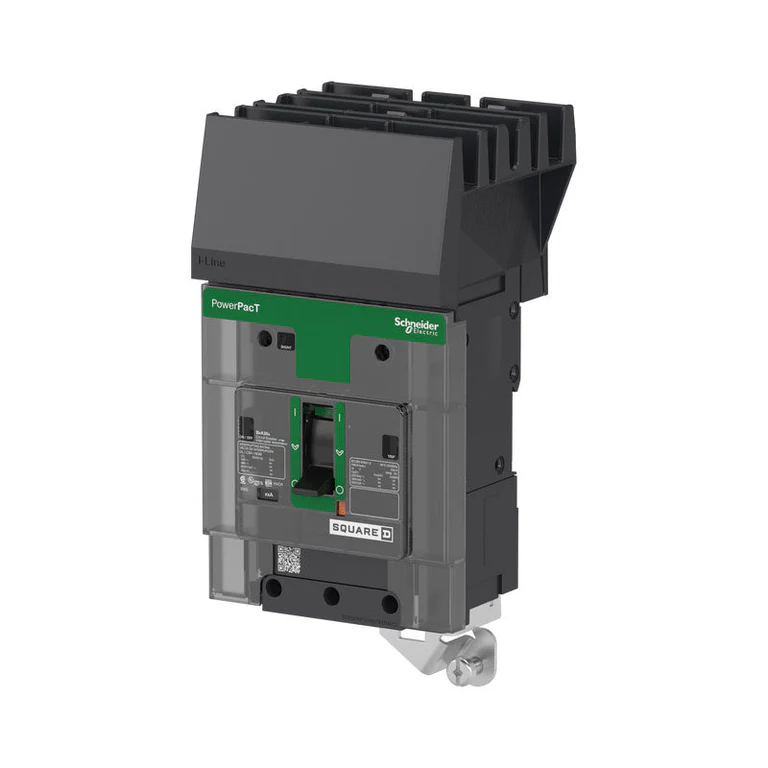

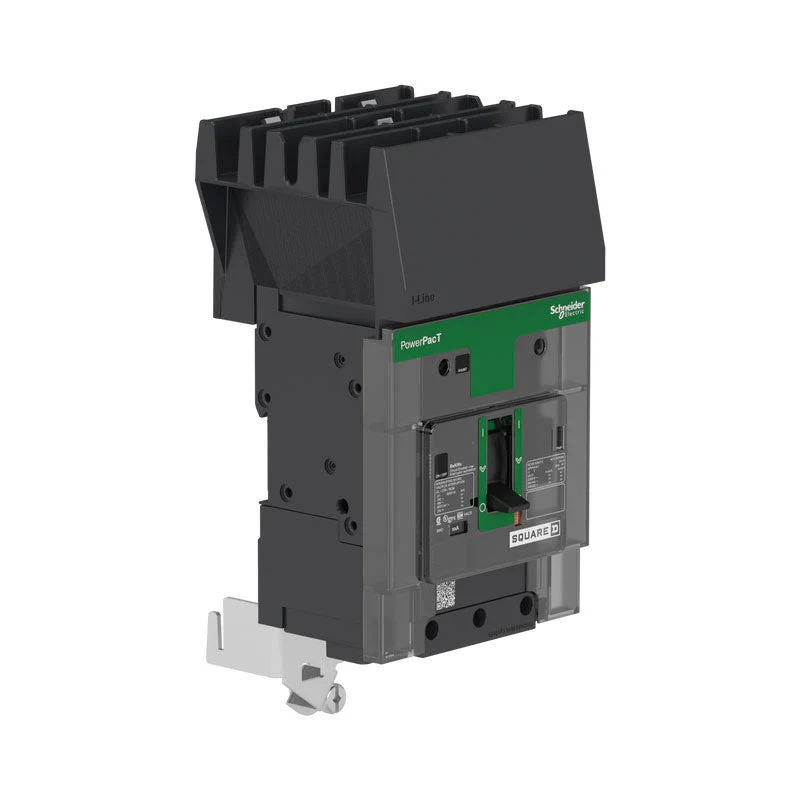

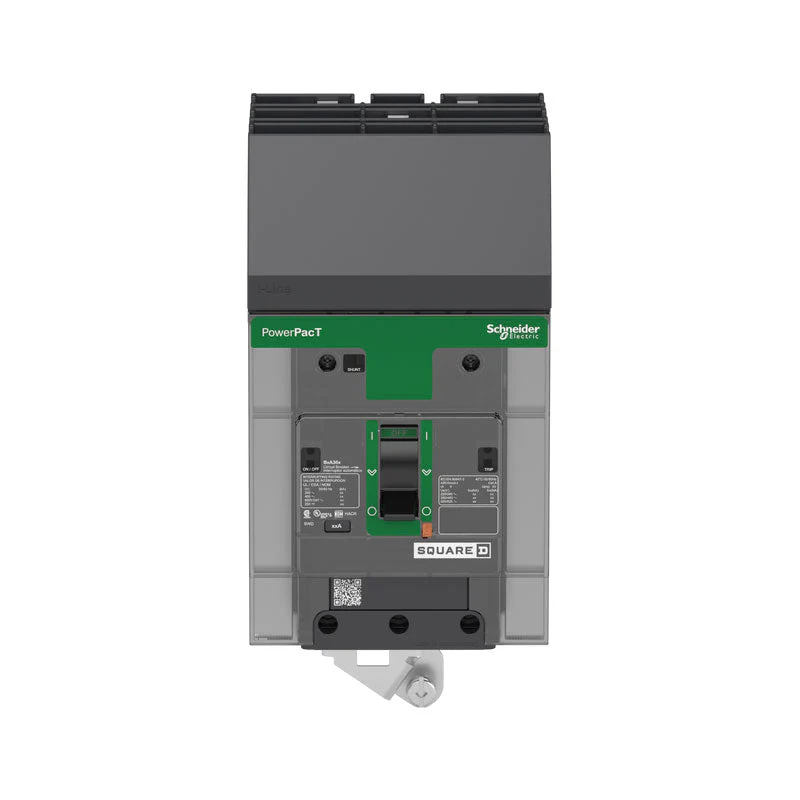

FavoriteBGA36050 – Square D – Molded Case Circuit Breaker I-Line Plug-In – 50 Amp – 3 Pole – 600 Volt
$494.99
Description
The Square D BGA36050 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 50 Amps and a voltage rating of 600Y/347VAC. It has an interrupting rating of 35kAIC at 480V. The BGA36050 has an I-Line mounting type and includes long time and instantaneous trip functions.
Specifications
| Type | Thermal Magnetic |
| Frame Type | B |
| Voltage Rating | 600 Star/347 Volt AC 50/60 Hertz- 250 Volt DC |
| Maximum AC Voltage Rating | 347 Volt |
| Maximum DC Voltage Rating | 250 Volt |
| Current Rating | 50 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 18 Kiloamp at 600 Star/347 Volt- 20 Kiloamp at 250 Volt DC |
| Terminal Type | I-Line Connection Line Lug Load |
| Size | 3.19 Inch Width x 3.5 Inch Depth x 5.39 Inch Height |
| Approval | UL- CSA- CE |
| Brand Name | PowerPact™ |
| Model | BG |
| Additional Information | RoHS/REACH Compliant- Trip Setting 480 Amp (Hold)- 720 Amp (Trip)- Mounting Type I-Line- Control Type Toggle- Terminal Wire Size 14 to 2/0 AWG (Copper/Aluminum)- Continuous Current Rating 80 Percent- Phase Connection Type ABC- Operation Ambient Air Temperature Rating -13 to 158 Deg F- Application Distribution- Applicable Standard EAC- NOM- IEC- CCC- NEMA AB1- EN/IEC 60947-2/60947-5-1- NMX J-266- GB 14048.2 |
| Features/Benefits | This Powerpact B-Frame Circuit Breaker Provides Thermal Magnetic Circuit Protection with a Breaking Capacity of 18 Kiloamp at 600Y/347 Volt AC- All Powerpact B-Frame Circuit Breakers are Equipped with Dual Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product |
Additional information
| Weight | 4 lbs |
|---|---|
| Condition | New |
| GTIN |
