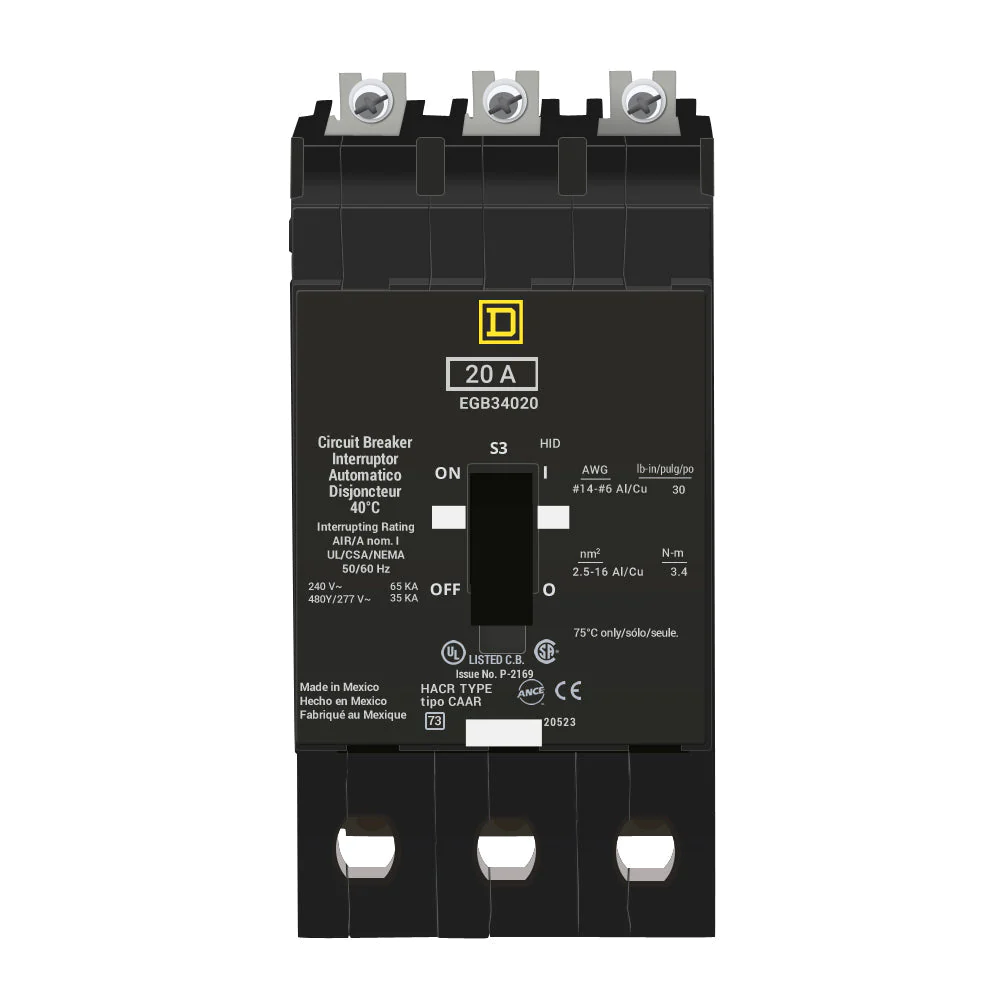

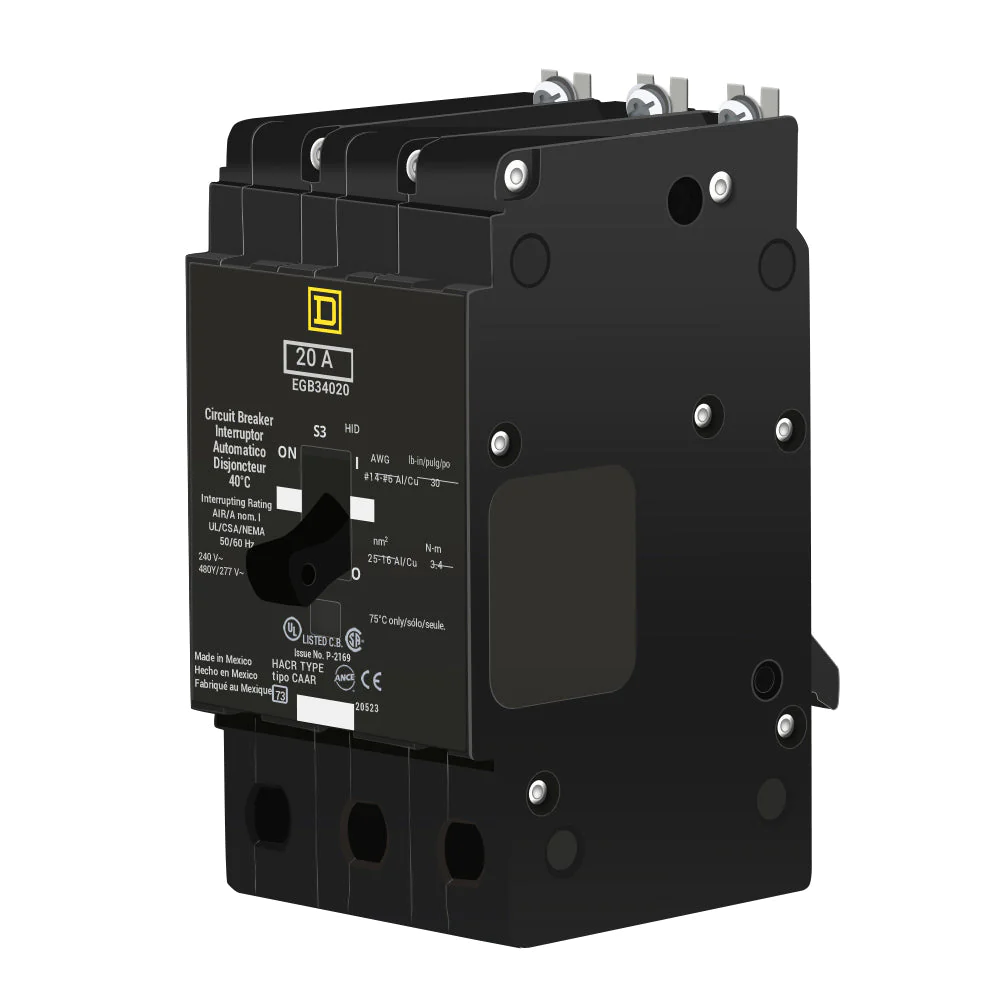

EGB34020 – Square D – Molded Case Circuit Breaker Bolt-On – 20 Amp – 3 Pole – 480 Volt

SKU: EGB34020 Categories: ,

$319.99

Description

Schneider Electric / Square D Bolt-On Circuit Breaker Its Compact And Easy to Install Three poles thermal-magnetic circuit breaker has a current rating of 20 Amps at 40 deg c and voltage rating of 120/240/277 Vac it has an interrupt current rating of 65 Kiloampere At 120/240 Vac it accommodates aluminum/copper wire of size 14 to 6 Awg miniature circuit breaker has mounting bolts to hold the breaker in place circuit breaker is Ul listed and Csa certified.

Specifications

Type Thermal Magnetic- Branch- Miniature
Voltage Rating 480 Star/277 Volt AC
Current Rating 20 Amp
Number of Poles 3
Interrupting Rating 35 Kiloamp at 480 Star/277 Volt AC
Trip Setting 270 Amp (Hold)- 875 Amp (Trip)
Installation Bolt-ON
Application Lighting
Used On NF Merchandised Panelboard
Approval UL (CANADA and US)
Model EGB
Additional Information RoHS/REACH Compliant- Overall Dimension 2.94 Inch Width x 4.05 Inch Depth x 5.66 Inch Height- Frame Type E- Terminal Type Lug Aluminum- Terminal Wire Size 12 to 6 AWG (Aluminum)- 14 to 6 AWG (Copper)- Operation Ambient Air Temperature Rating 104 Deg F
Features/Benefits Short Circuit/Overload Protection- HACR Rated- RoHS/REACH Compliant- Mercury-Free
