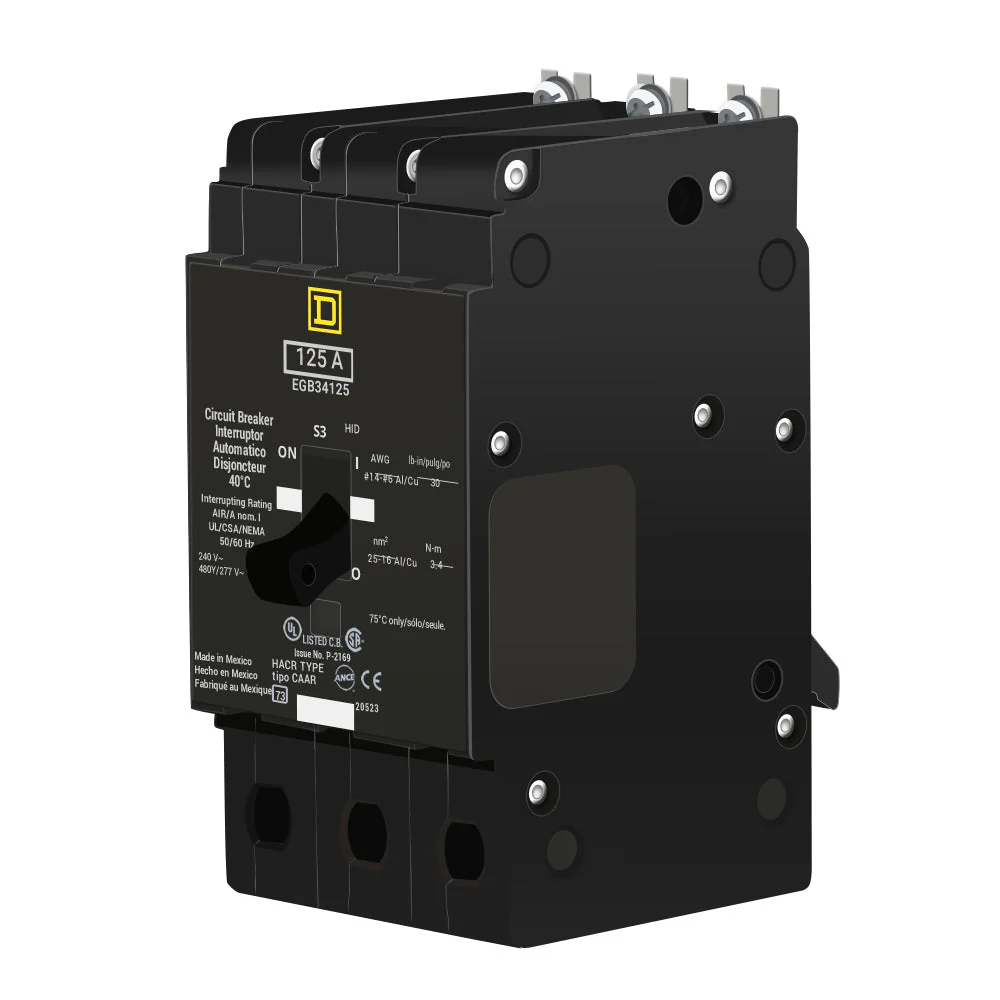

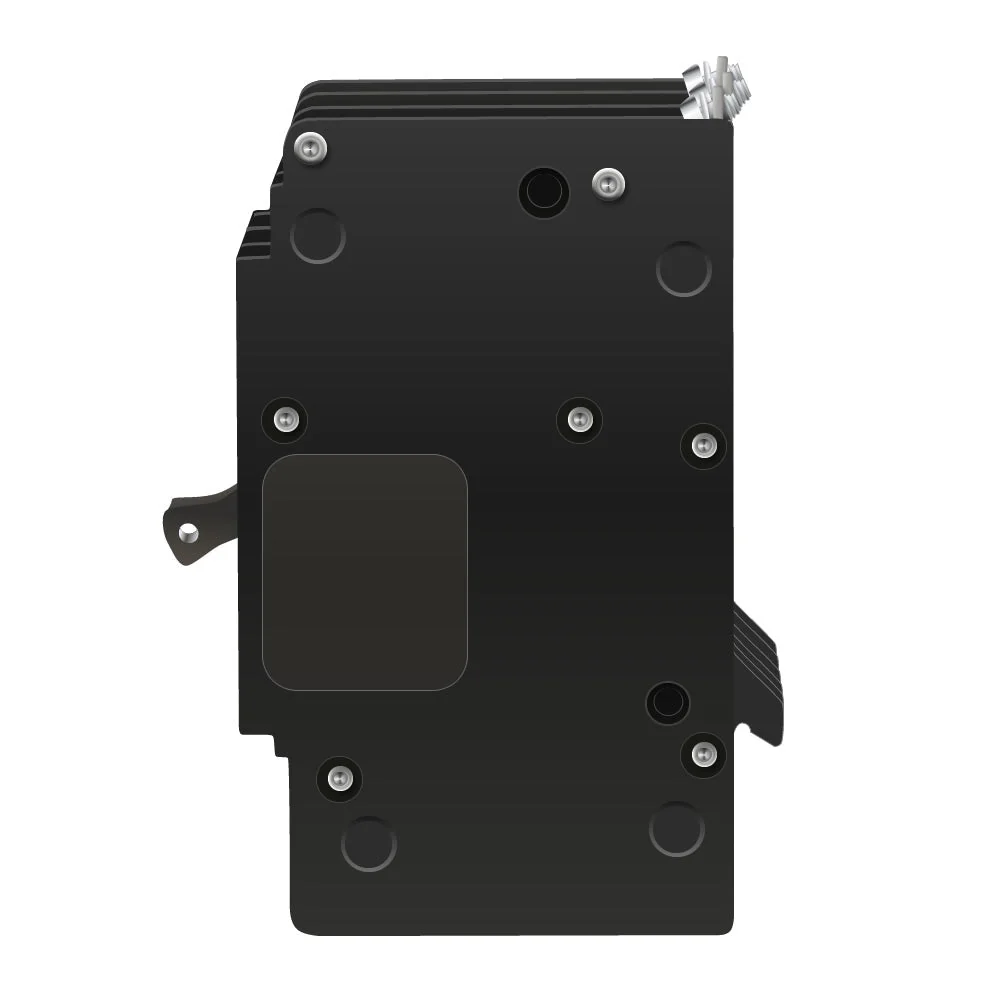

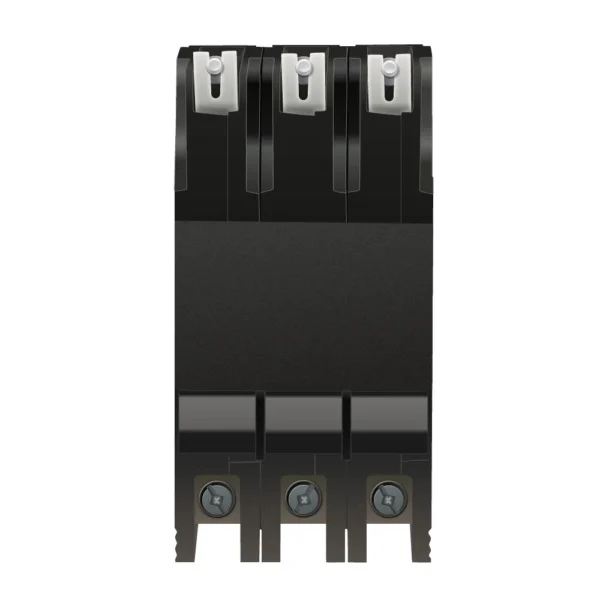

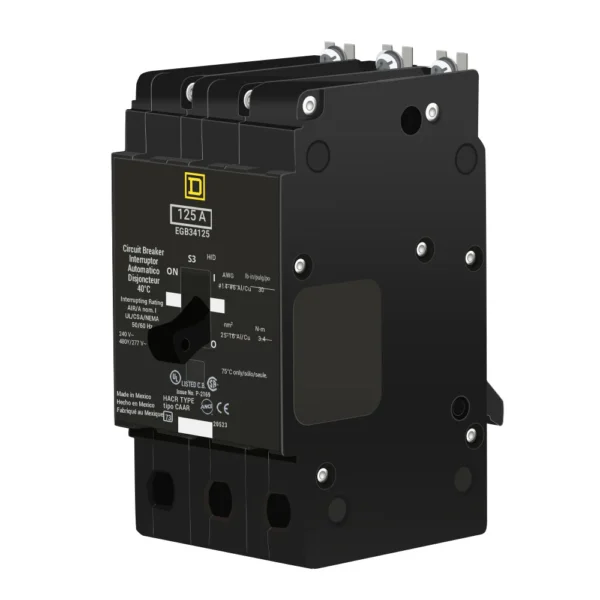

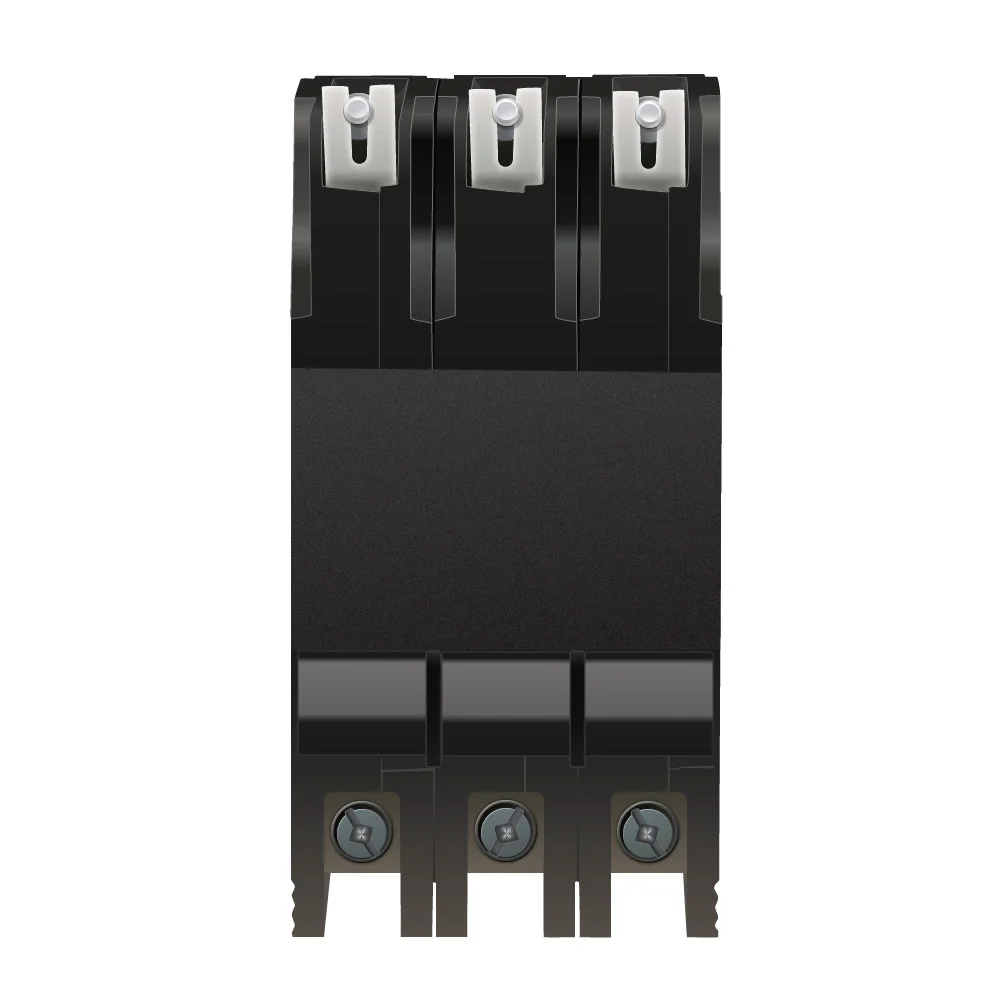

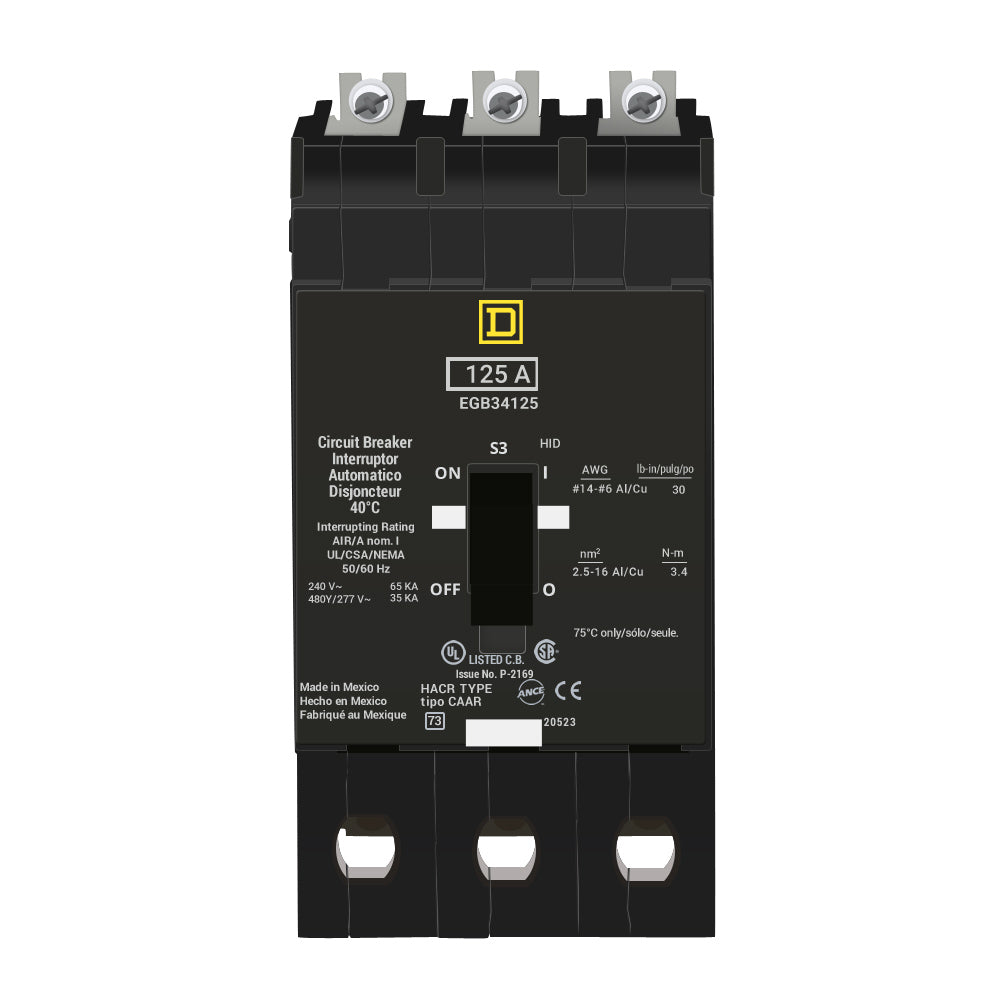

FavoriteEGB34125 – Square D – Molded Case Circuit Breaker Bolt-On – 125 Amp – 3 Pole – 480 Volt
$944.99
Description
The Square D EGB34125 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 125 Amps and a voltage rating of 480Y/277VAC. It has an interrupting rating of 35kAIC at 480Y/277VAC. The EGB34125 has a bolt-on connection type and includes LI - long-time and instantaneous trip functions.
Specifications
| Type | Thermal Magnetic- Branch- Miniature |
| Voltage Rating | 480 Star/277 Volt AC |
| Current Rating | 125 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 35 Kiloamp at 480 Star/277 Volt AC |
| Trip Setting | 1000 Amp (Hold)- 2300 Amp (Trip) |
| Installation | Bolt-ON |
| Application | Lighting |
| Used On | NF Merchandised Panelboard |
| Approval | UL (CANADA and US) |
| Model | EGB |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 2.94 Inch Width x 4.05 Inch Depth x 5.66 Inch Height- Frame Type E- Terminal Type Lug Aluminum- Terminal Wire Size 12 to 2/0 AWG (Aluminum)- 14 to 2/0 AWG (Copper)- Operation Ambient Air Temperature Rating 104 Deg F |
| Features/Benefits | Short Circuit/Overload Protection- HACR Rated- RoHS/REACH Compliant- Mercury-Free |
Additional information
| Weight | 4 lbs |
|---|---|
| Condition | New |
| GTIN |
