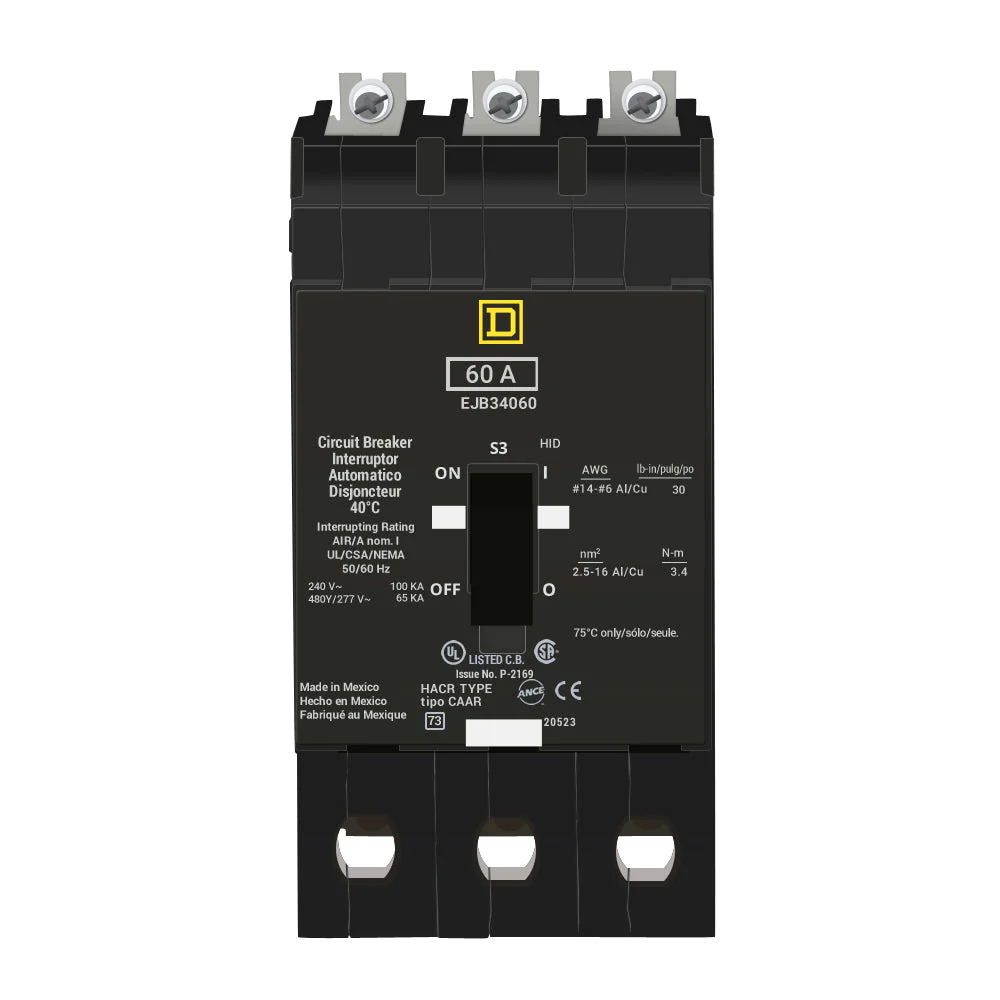

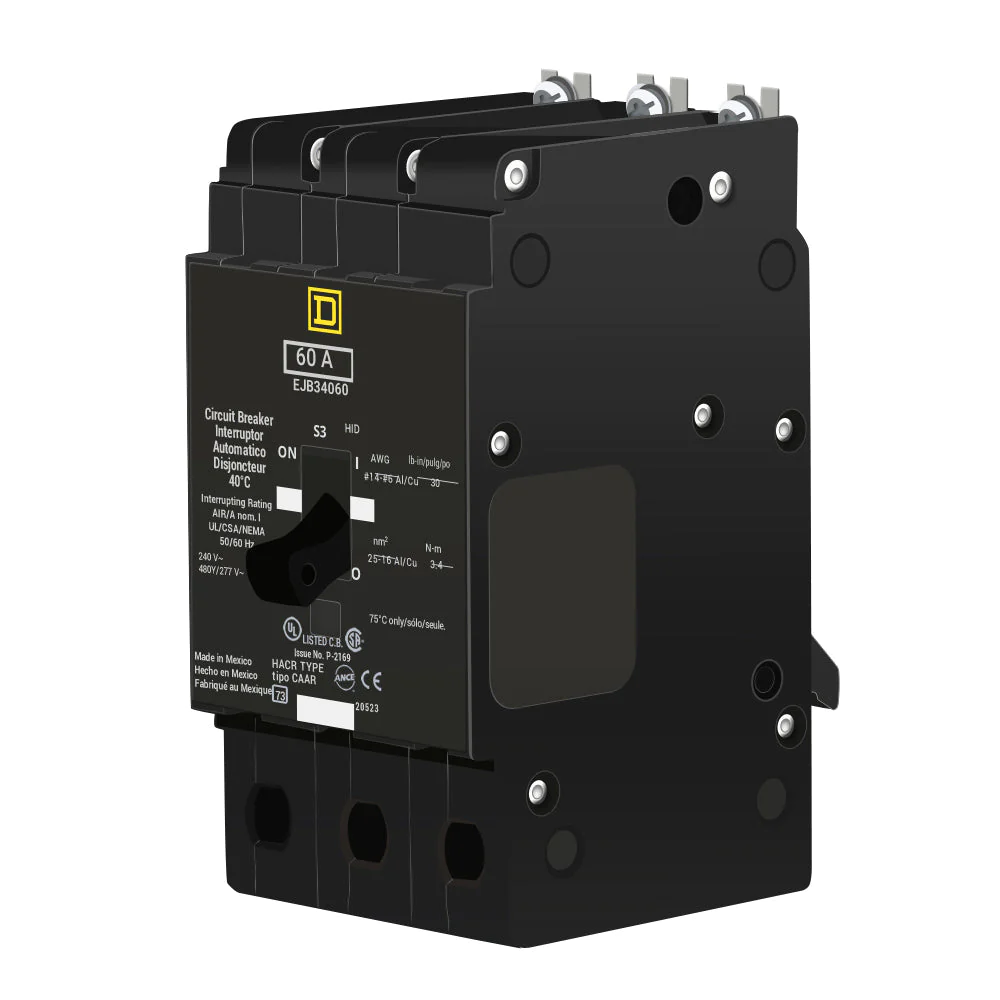

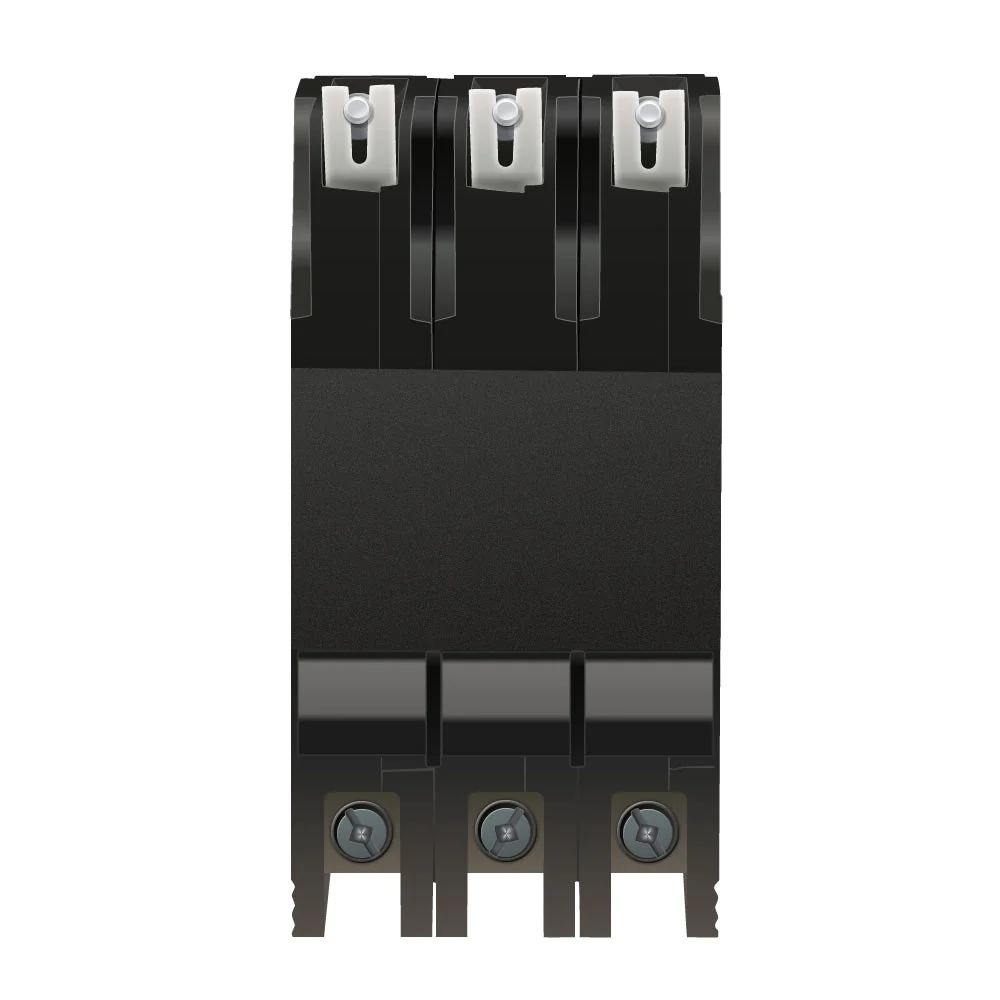

EJB34060 – Square D – Molded Case Circuit Breaker Bolt-On – 60 Amp – 3 Pole – 480 Volt

SKU: EJB34060 Categories: ,



Schneider Electric / Square D Bolt-On Circuit Breaker Its Compact And Easy to Install Three poles thermal-magnetic circuit breaker has a current rating of 60 amps and voltage rating of 120/240/277 Vac it has an interrupt current rating of 100 Kiloampere at 120/240 Vac it accommodates aluminum/copper wire of size 14 to 2/0 Awg circuit breaker is Ul listed and Csa certified.


Type Thermal Magnetic- Branch- Miniature
Voltage Rating 480 Star/277 Volt AC
Current Rating 60 Amp
Number of Poles 3
Interrupting Rating 65 Kiloamp at 480 Star/277 Volt AC
Trip Setting 630 Amp (Hold)- 1800 Amp (Trip)
Installation Bolt-ON
Application Lighting
Used On NF Merchandised Panelboard
Approval UL (CANADA and US)
Model EJB
Additional Information RoHS/REACH Compliant- Overall Dimension 2.94 Inch Width x 4.05 Inch Depth x 5.66 Inch Height- Frame Type E- Terminal Type Lug Aluminum- Terminal Wire Size 12 to 2/0 AWG (Aluminum)- 14 to 2/0 AWG (Copper)- Operation Ambient Air Temperature Rating 104 Deg F
Features/Benefits Short Circuit/Overload Protection- HACR Rated- RoHS/REACH Compliant- Mercury-Free
