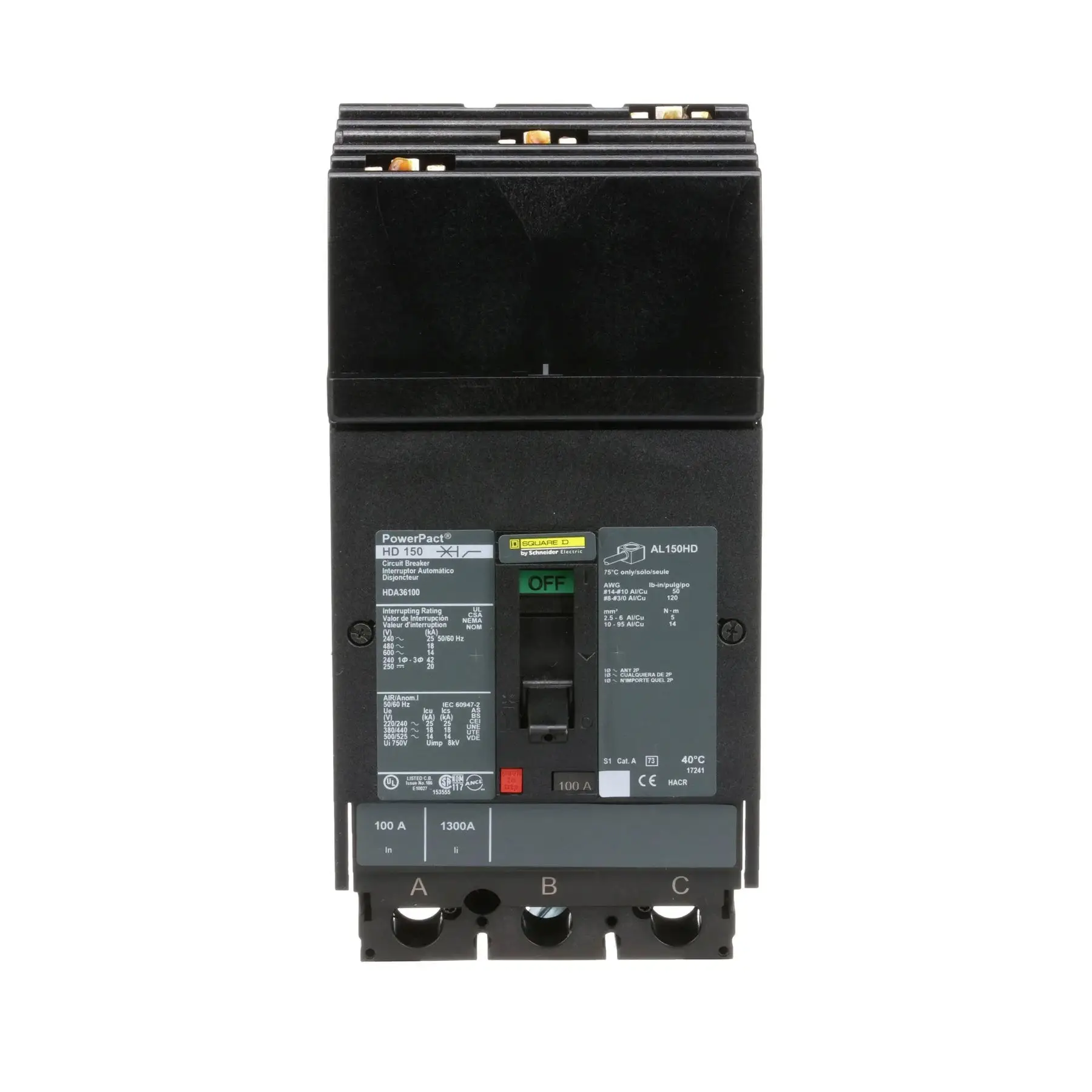

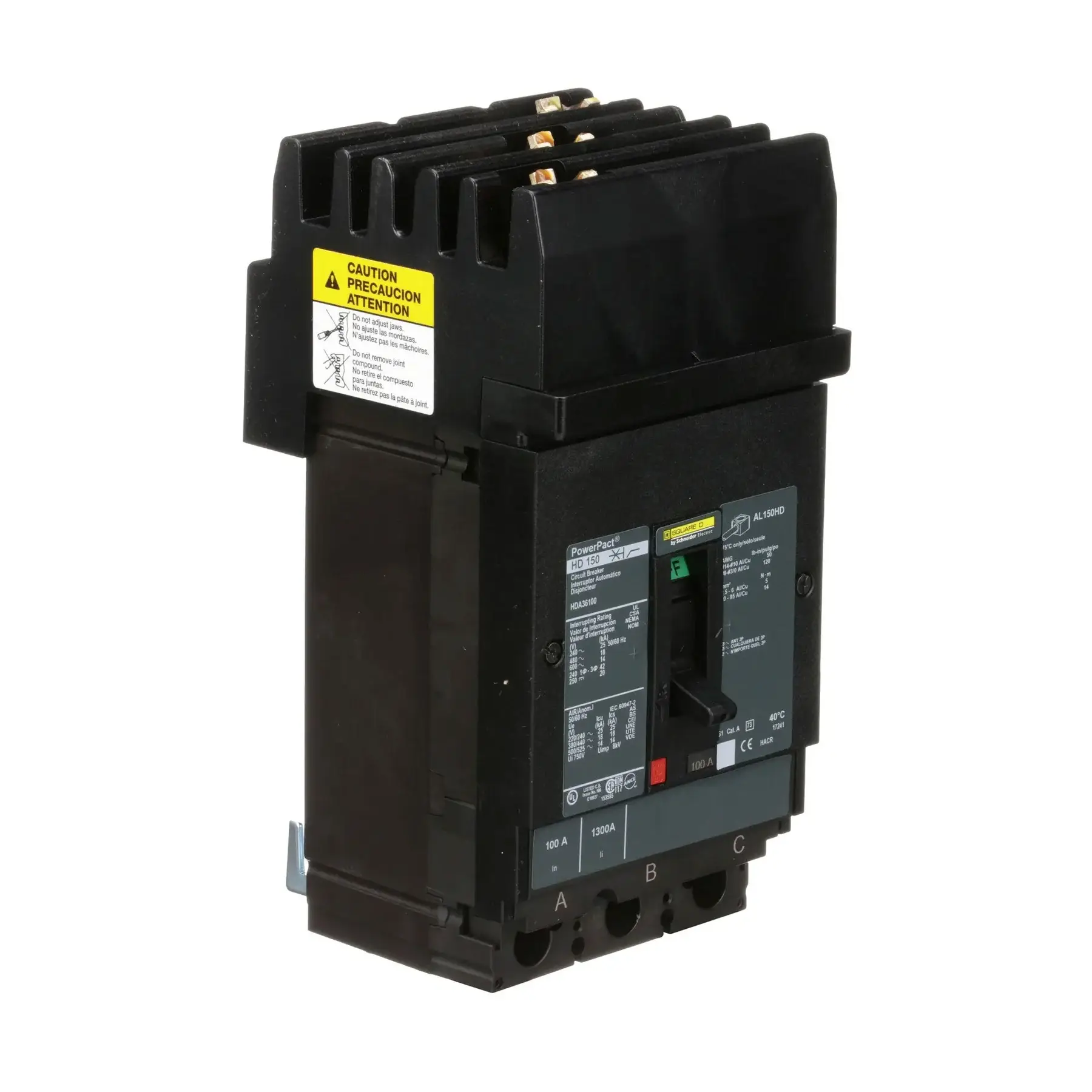

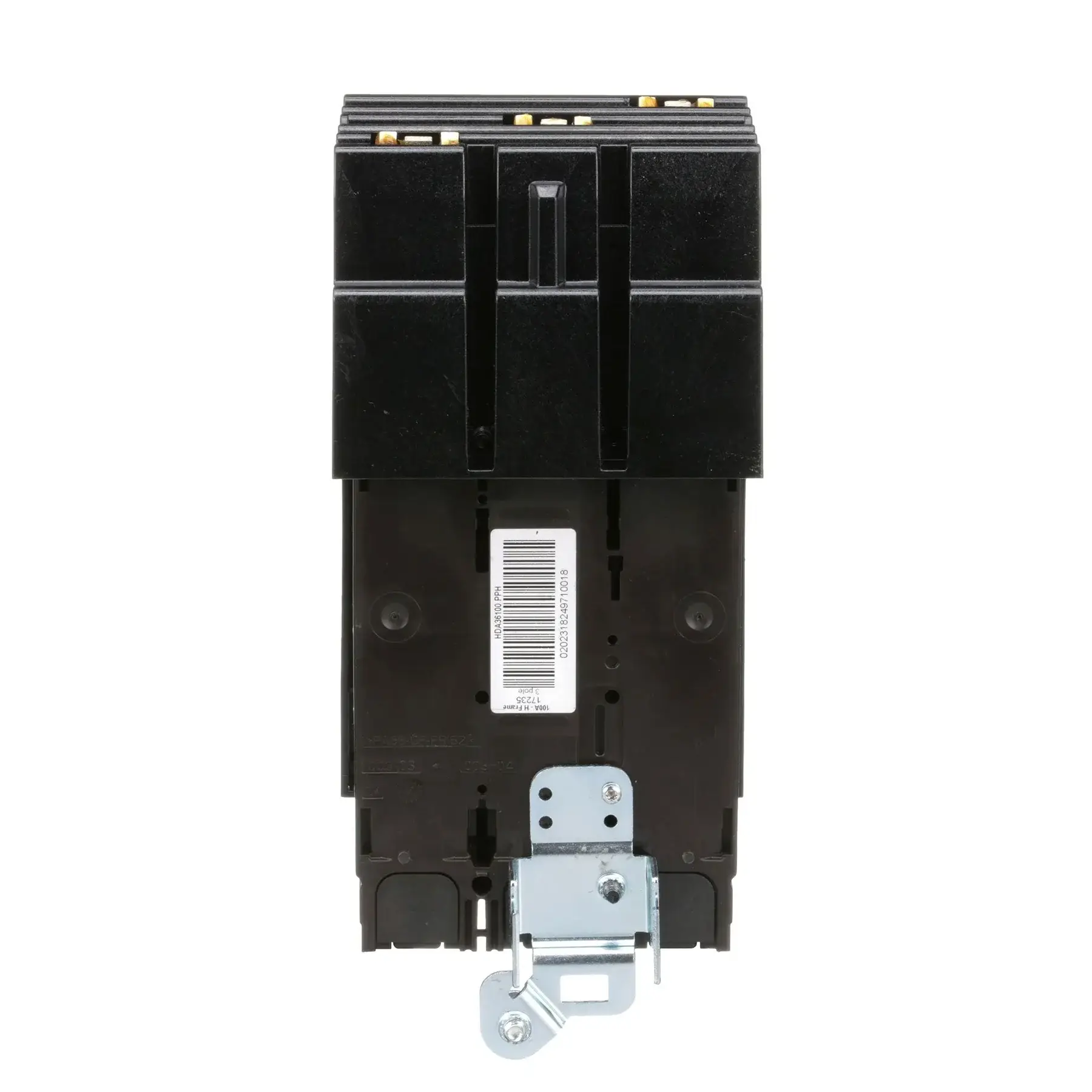

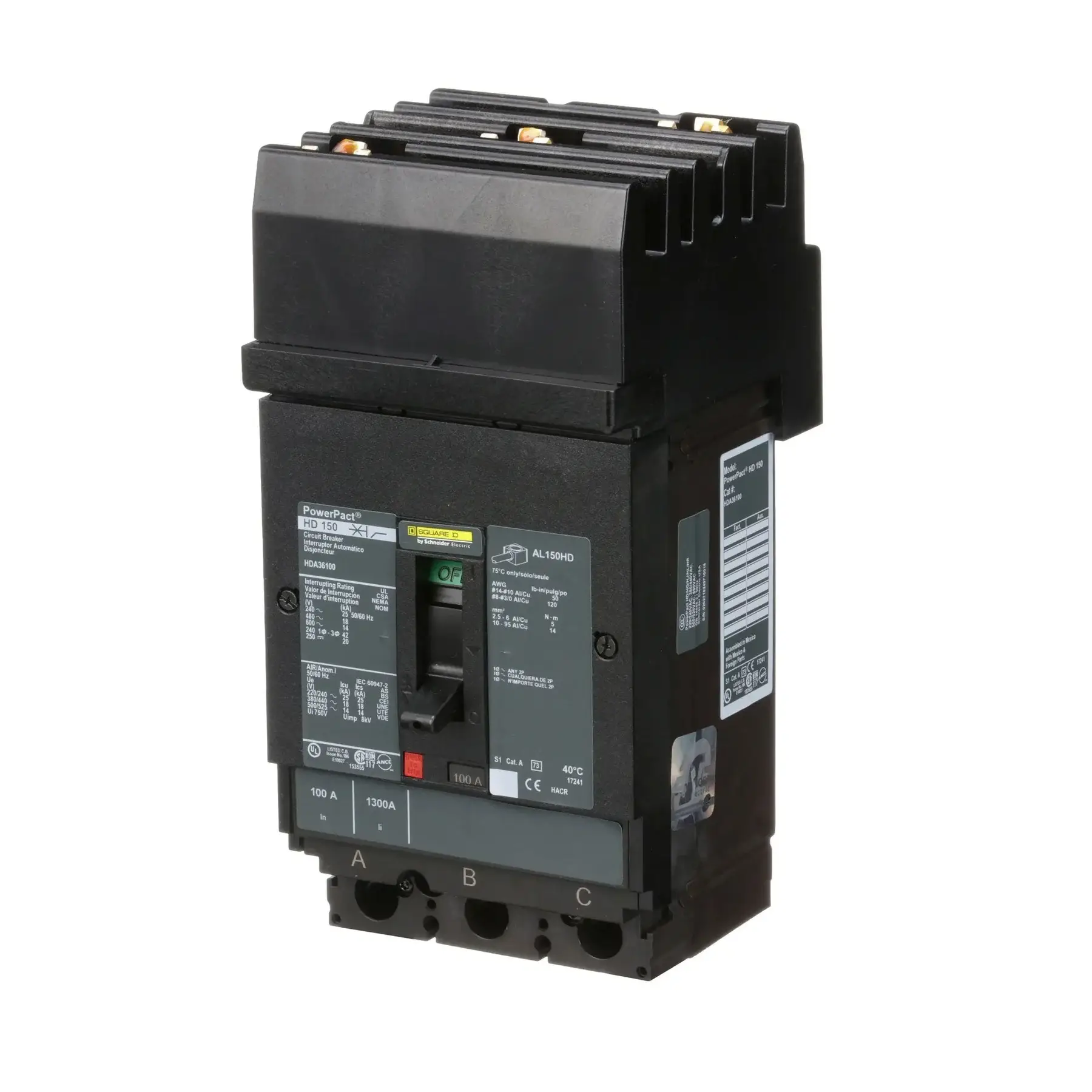

HDA36100 – Square D – Molded Case Circuit Breaker I-Line Plug-In – 100 Amp – 3 Pole – 600 Volt

SKU: HDA36100 Categories: ,

$589.99

Description

This product is a molded case circuit breaker 3 pole 100 ampere built in trip setting 900 to 1700 ampere thermal magnetic tripping method high interrupting rating of 25 kiloampere at 240vac Used On Class 612 I-Line[r] Panelboard/switchboard application power distribution.

Specifications

Type Thermal Magnetic- Current Limiting
Voltage Rating 600 Volt AC 50/60 Hertz- 250 Volt DC
Current Rating 100 Amp
Number of Poles 3
Interrupting Rating 14 Kiloamp at 600 Volt AC- 20 Kiloamp at 250 Volt DC
Trip Setting 800 Amp (Hold)- 1700 Amp (Trip)
Application Distribution
Used On Class 611/612 I-Line Panelboard and Switchboard
Approval UL- CSA- CE
Brand Name PowerPact™
Model HD

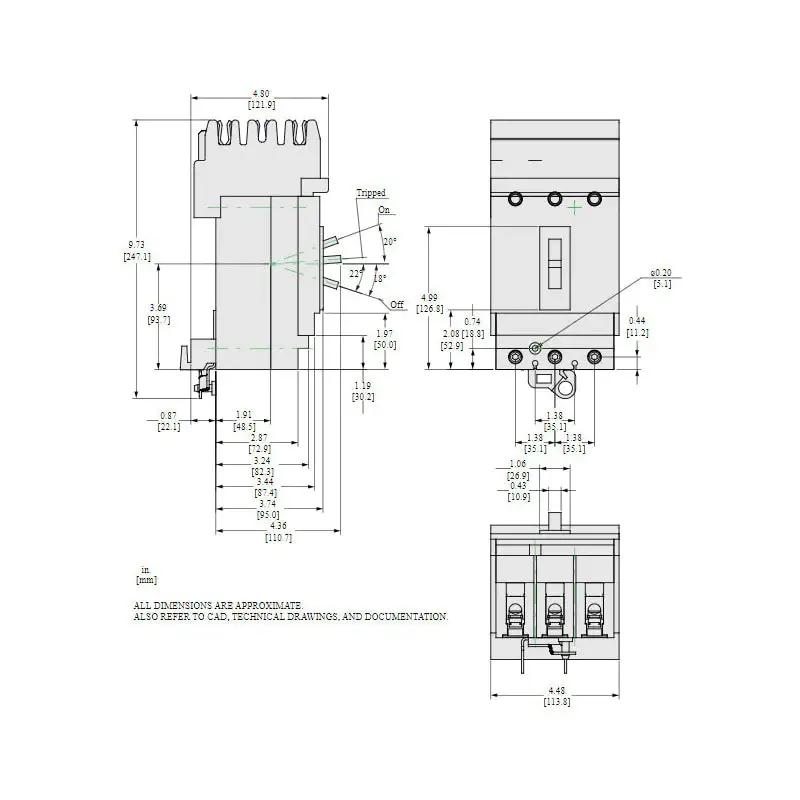

Additional Information RoHS/REACH Compliant- Overall Dimension 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height- Frame Type H- Terminal Type I-Line Connection Line Lug Load- Control Type Toggle- Terminal Wire Size 14 to 3/0 AWG (Copper/Aluminum)- Continuous Current Rating 80 Percent- Phase Connection Type ABC- Operation Ambient Air Temperature Rating 28 to 158 Deg F- Applicable Standard IEC
Features/Benefits The Powerpact H-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits- H-Frame Circuit Breakers are Either Thermal-magnetic or Micrologic Electronic Trip Units- All Powerpact H-Frame Circuit Breakers are Equipped with Dual-Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product

Shipping information

Free Shipping Policy
Parcel shipments with item value over $200.00 qualify for free economy shipping within the continental US. Please indicate at checkout if USPS or UPS is a required shipment method. We do not charge a handling fee or require a minimum amount on any order. Breakers & Controls Florida does not ship on customer accounts.

Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances Breakers & Controls Florida may reserve up to 5 business days to consolidate orders for complete shipment.

Warranty information

At Breakers & Controls Florida, we stand behind the quality and reliability of our products. We understand that purchasing used and obsolete breakers and controls requires confidence in their performance. Therefore, we have established the following warranty policy to ensure your satisfaction:

  1. Limited Warranty: All used and obsolete breakers and controls purchased from [Company Name] are covered by a limited warranty. This warranty guarantees that the products will be free from defects in material and workmanship under normal use and service for a specified period from the date of purchase.
  2. Warranty Period: The warranty period for used and obsolete breakers and controls may vary depending on the specific product and its condition at the time of purchase. The warranty duration will be clearly stated on the product listing or accompanying documentation. Please review the product description or contact our customer support team for the warranty period applicable to your purchase.
  3. Warranty Coverage: Our warranty covers the repair or replacement of defective parts or products at our discretion. If a covered product is found to be defective within the warranty period, we will either repair the product, replace it with an equivalent item, or provide a refund, depending on the availability of the specific product and the customer’s preference.

Additional information

Weight 5 lbs
Condition

New, Used

GTIN
