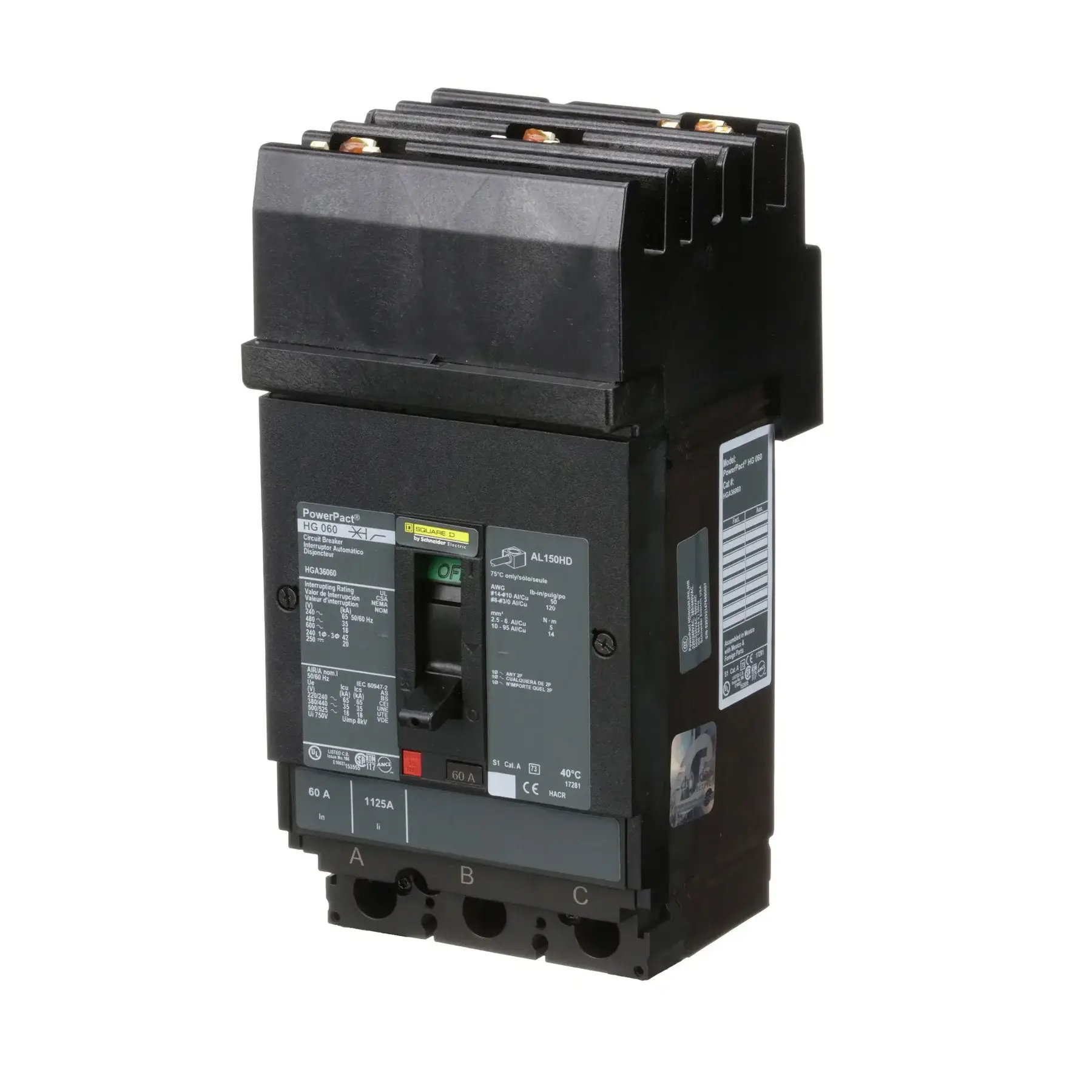

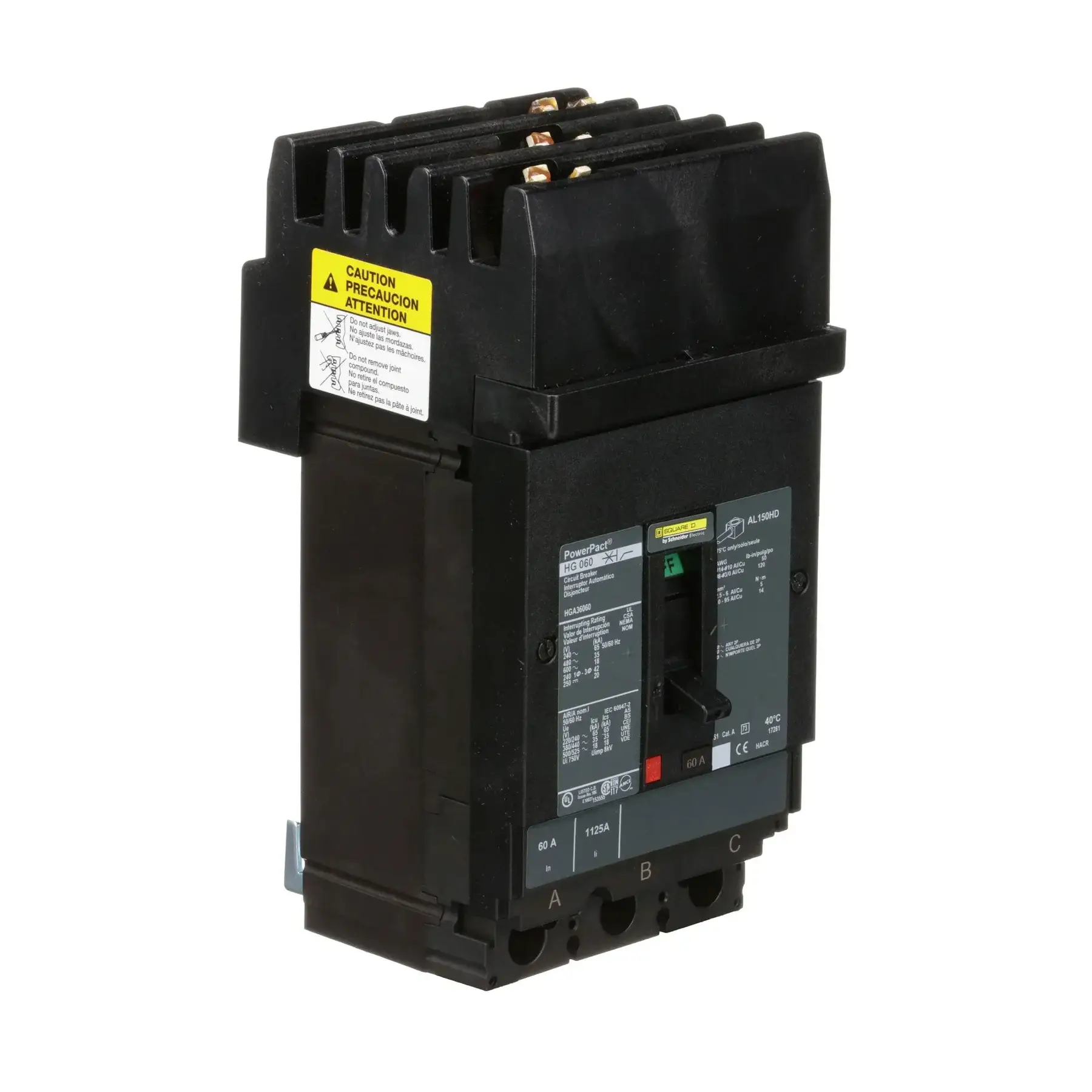

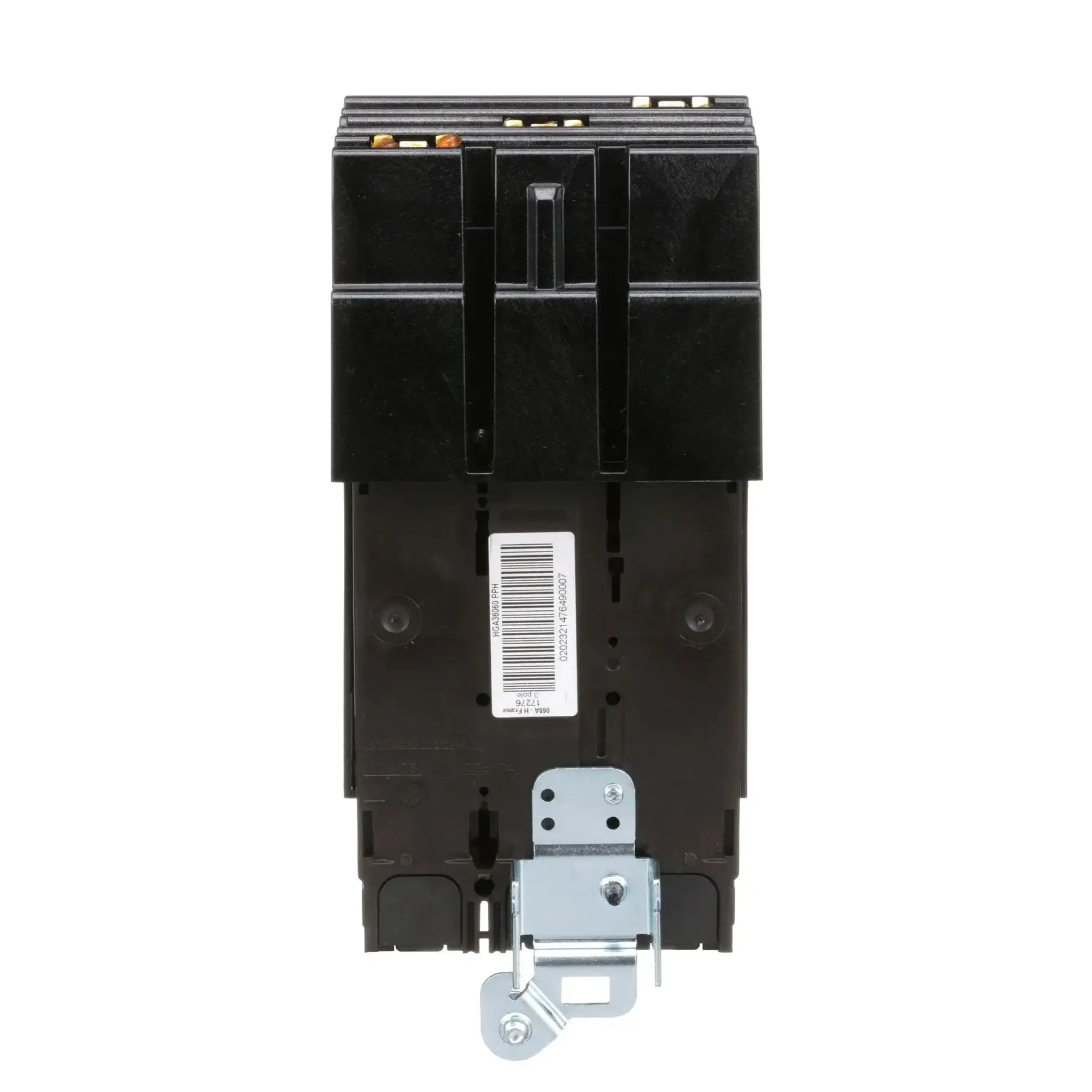

FavoriteHGA36060 – Square D – Molded Case Circuit Breaker I-Line Plug-In – 60 Amp – 3 Pole – 600 Volt
$829.99
Description
This product is a molded case circuit breaker 3 pole 60 ampere built in trip setting 800 to 1450 ampere thermal magnetic tripping method high interrupting rating of 65 kiloampere at 240vac Used On Class 612 I-Line[r] Panelboard/switchboard application power distribution.
Specifications
| Type | Thermal Magnetic- Current Limiting |
| Voltage Rating | 600 Volt AC 50/60 Hertz- 250 Volt DC |
| Current Rating | 60 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 18 Kiloamp at 600 Volt AC- 20 Kiloamp at 250 Volt DC |
| Trip Setting | 800 Amp (Hold)- 1450 Amp (Trip) |
| Application | Distribution |
| Used On | Class 611/612 I-Line Panelboard and Switchboard |
| Approval | UL- CSA- CE |
| Brand Name | PowerPact™ |
| Model | HG |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height- Frame Type H- Terminal Type I-Line Connection Line Lug Load- Control Type Toggle- Terminal Wire Size 14 to 3/0 AWG (Copper/Aluminum)- Continuous Current Rating 80 Percent- Phase Connection Type ABC- Operation Ambient Air Temperature Rating 28 to 158 Deg F- Applicable Standard IEC |
| Features/Benefits | The Powerpact H-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits- H-Frame Circuit Breakers are Either Thermal-magnetic or Micrologic Electronic Trip Units- All Powerpact H-Frame Circuit Breakers are Equipped with Dual-Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product |
Additional information
| Weight | 4 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
