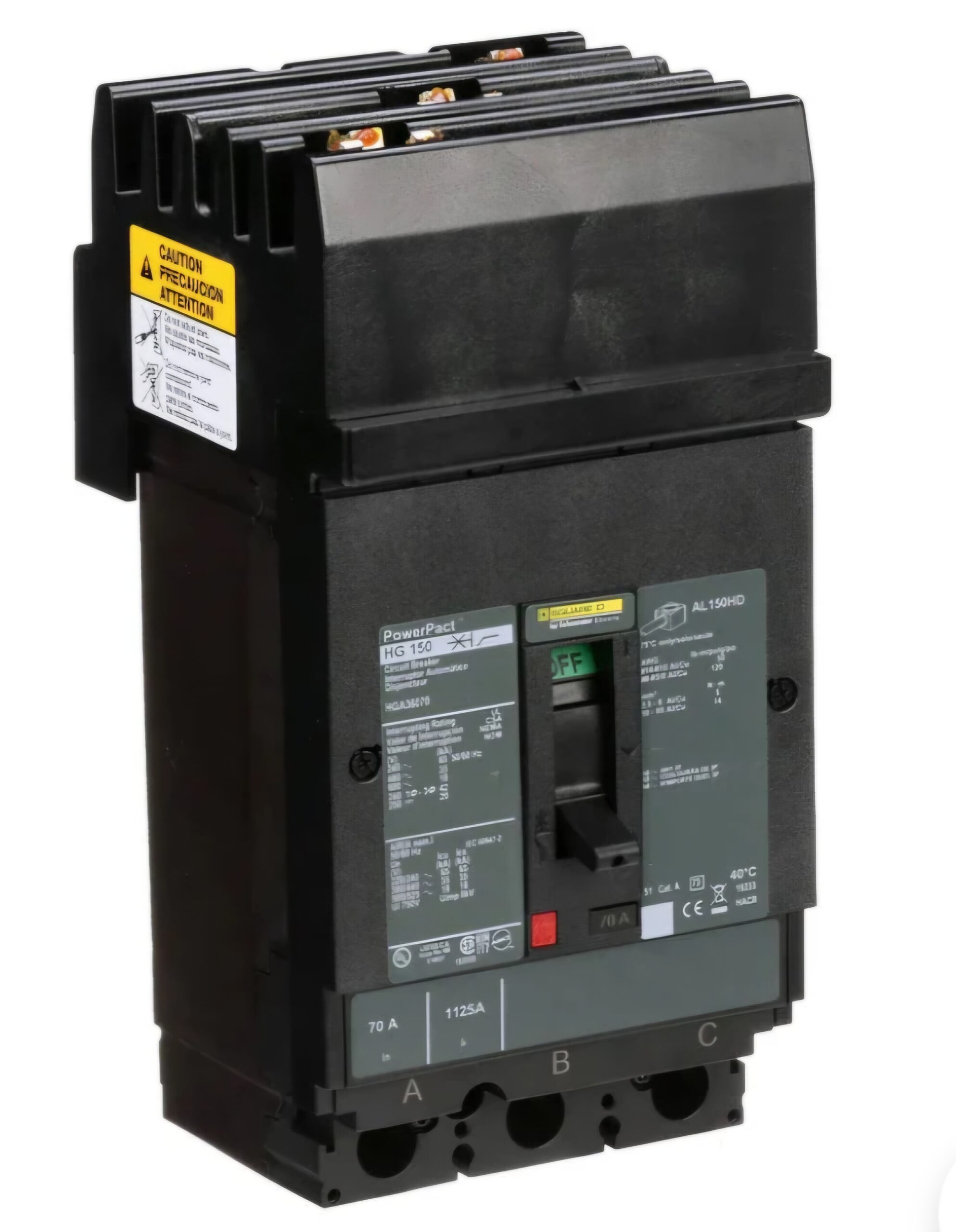

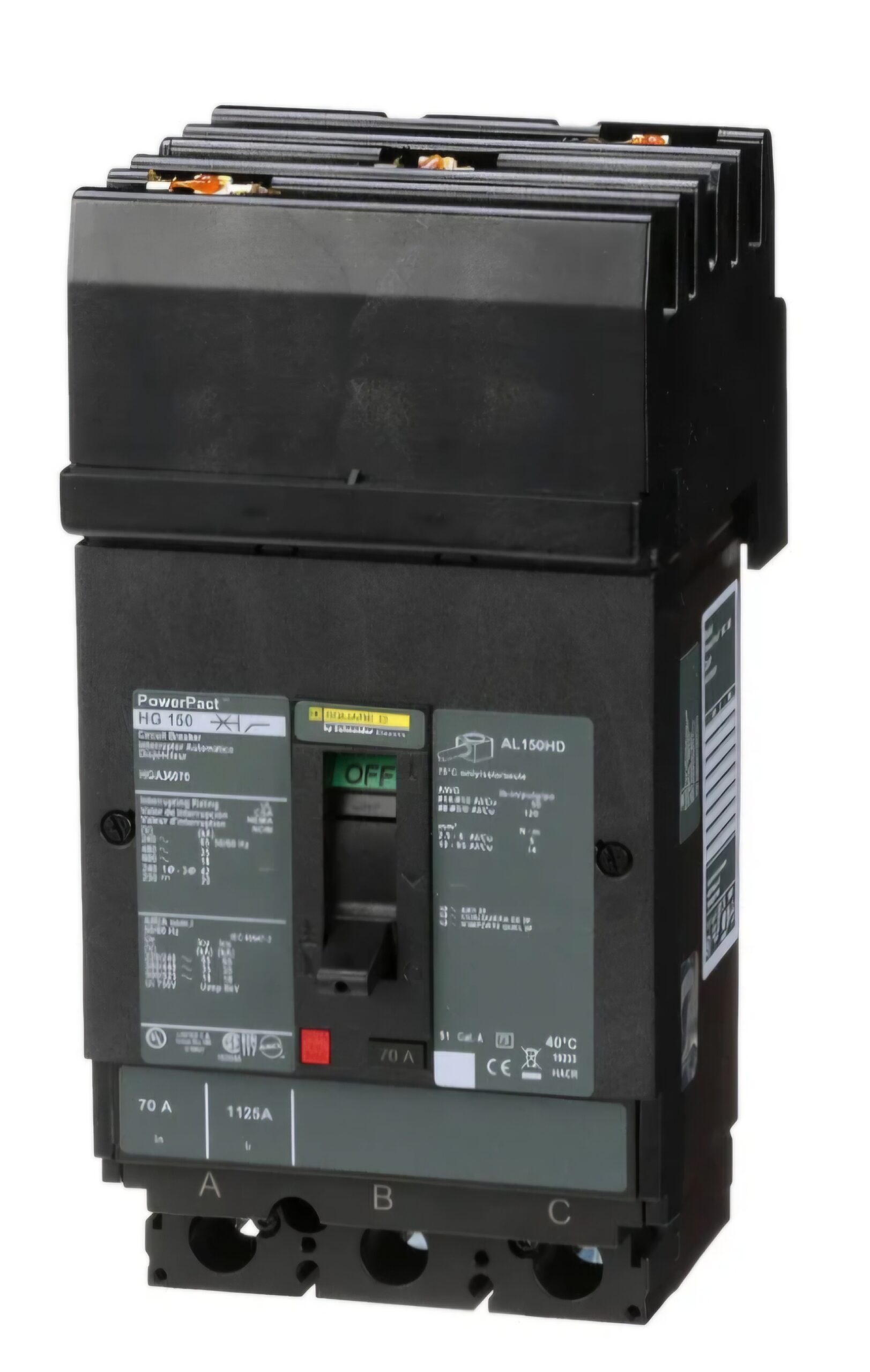

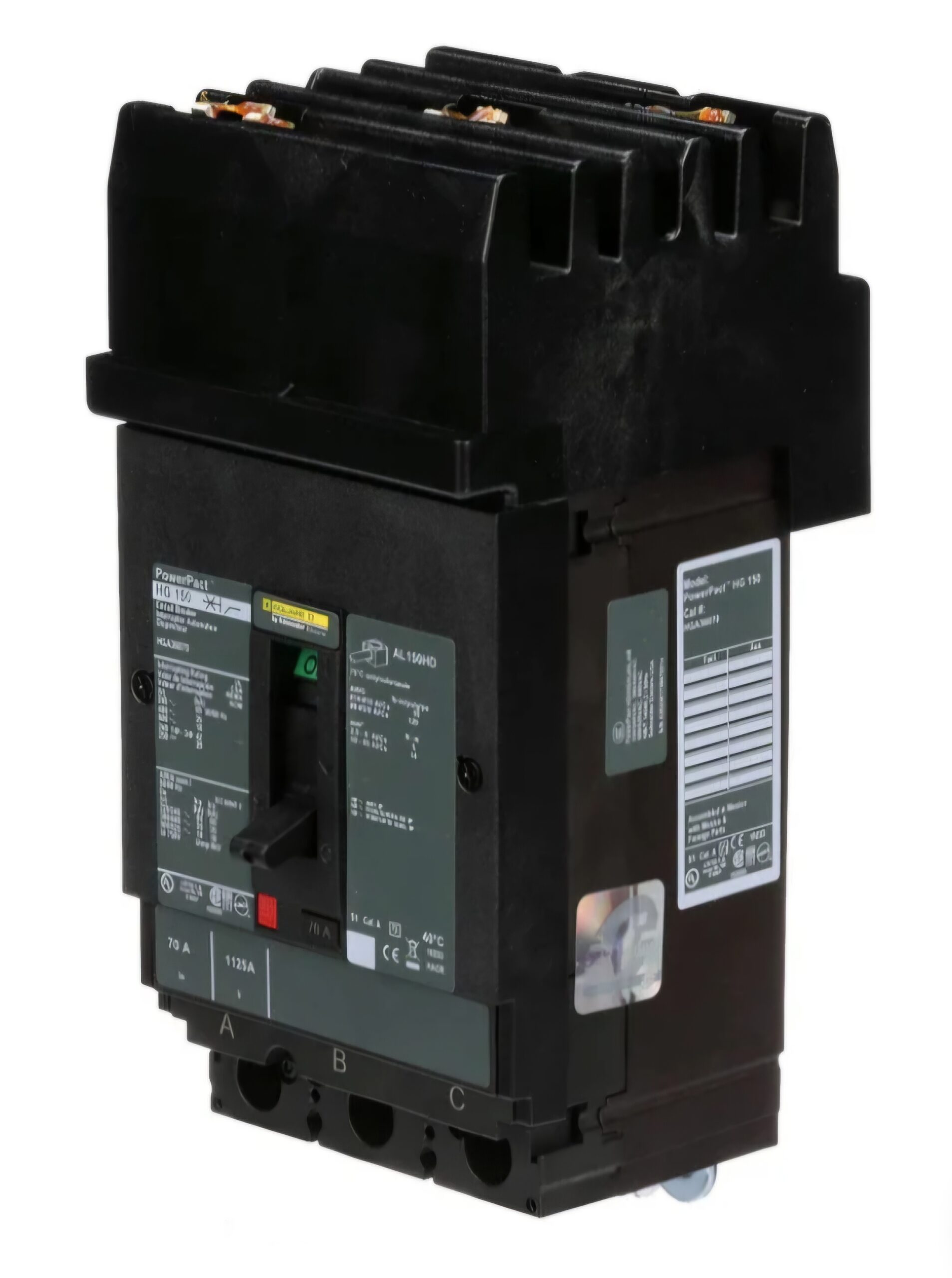

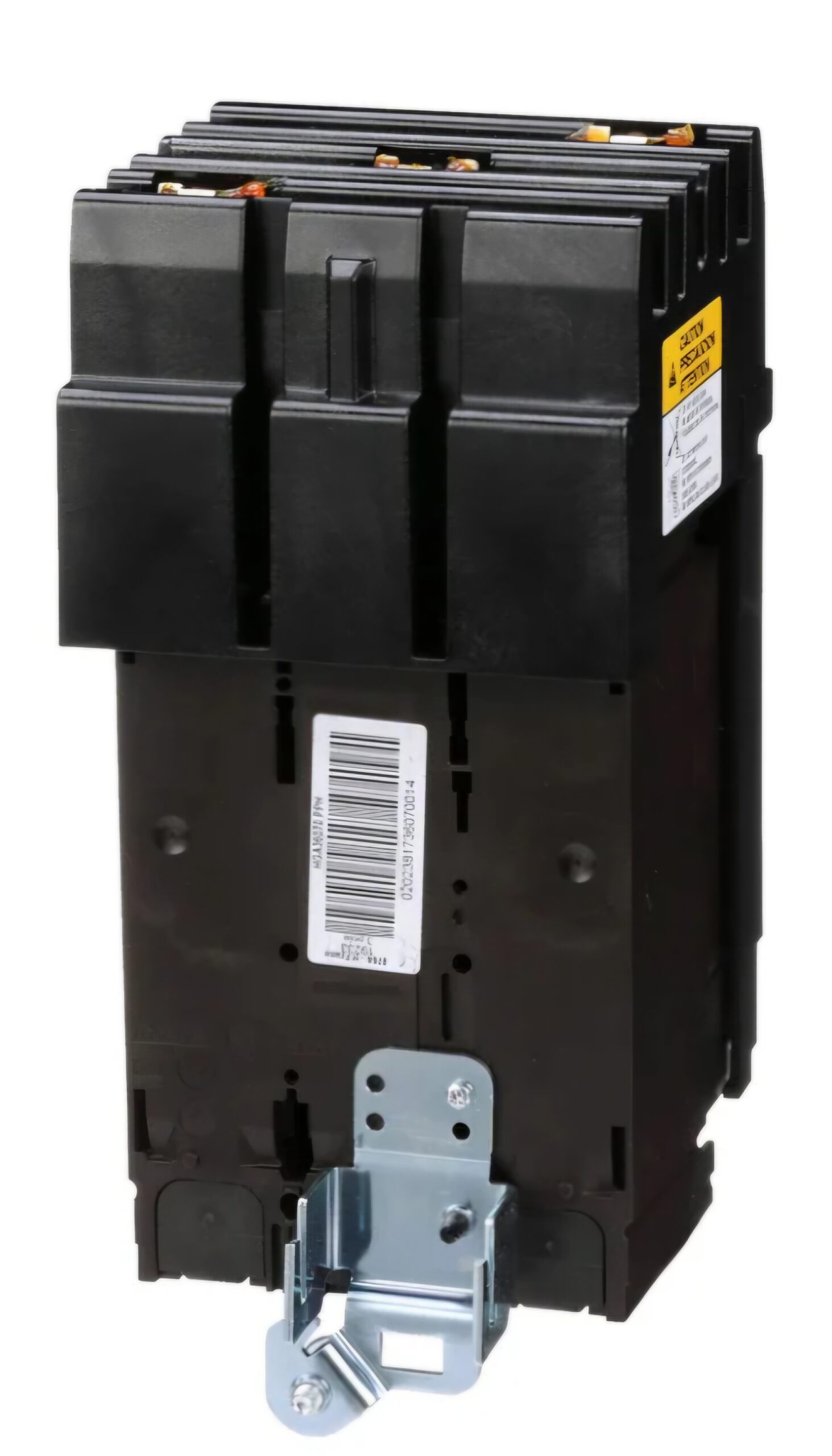

FavoriteHGA36070 – Square D – Molded Case Circuit Breaker I-Line Plug-In – 70 Amp – 3 Pole – 600 Volt
$574.99
Description
The Square D HGA36070 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 70 Amps and a voltage rating of 600/690VAC. It has an interrupting rating of 35kAIC at 480VAC. The HGA36070 has an I-Line style plug-in connection type and includes LI - long-time and instantaneous trip functions.
Specifications
| Type | Thermal Magnetic- Current Limiting |
| Voltage Rating | 600 Volt AC 50/60 Hertz- 250 Volt DC |
| Current Rating | 70 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 18 Kiloamp at 600 Volt AC- 20 Kiloamp at 250 Volt DC |
| Trip Setting | 800 Amp (Hold)- 1450 Amp (Trip) |
| Application | Distribution |
| Used On | Class 611/612 I-Line Panelboard and Switchboard |
| Approval | UL- CSA- CE |
| Brand Name | PowerPact™ |
| Model | HG |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height- Frame Type H- Terminal Type I-Line Connection Line Lug Load- Control Type Toggle- Terminal Wire Size 14 to 3/0 AWG (Copper/Aluminum)- Continuous Current Rating 80 Percent- Phase Connection Type ABC- Operation Ambient Air Temperature Rating 28 to 158 Deg F- Applicable Standard IEC |
| Features/Benefits | The Powerpact H-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits- H-Frame Circuit Breakers are Either Thermal-magnetic or Micrologic Electronic Trip Units- All Powerpact H-Frame Circuit Breakers are Equipped with Dual-Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product |
Additional information
| Weight | 4 lbs |
|---|---|
| Condition | New |
| GTIN |
