Favorite$15.99
| Type | Standard |
| Number of Poles | 2 |
| Voltage Rating | 120/240 Volt AC |
| Current Rating | 50 Amp |
| Interrupting Rating | 10 Kiloamp |
| Terminal Type | Box Lug |
| Wire Size | 8 to 2 AWG (Aluminum/Copper) |
| Mounting | Plug-In |
| Used On | Load Center |
| Size | 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height |
| Approval | UL |
| Brand Name | Homelineâ„¢ |
| Additional Information | RoHS Compliant- Operating Temperature Rating 104 Deg F- Number of Spaces 2- Application Heating- Air Conditioning- Refrigeration |
| Features/Benefits | HACR Rated- Mercury-Free- Toxic Heavy Metal-Free- Green Premium- Lifetime Warranty- RoHS/Reach Compliant |

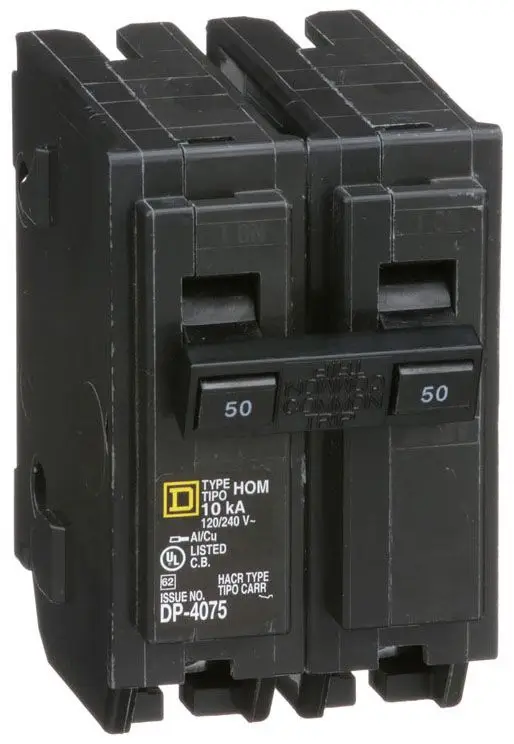

Square D molded case circuit breaker one phase and two pole 50 Ampere common trip circuit breaker compact easy to install built in features like molded case thermal magnectic plug-on connection (LI) long-time and Instantaneous trip functions molded case circuit breakers.
| Weight | 2 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
