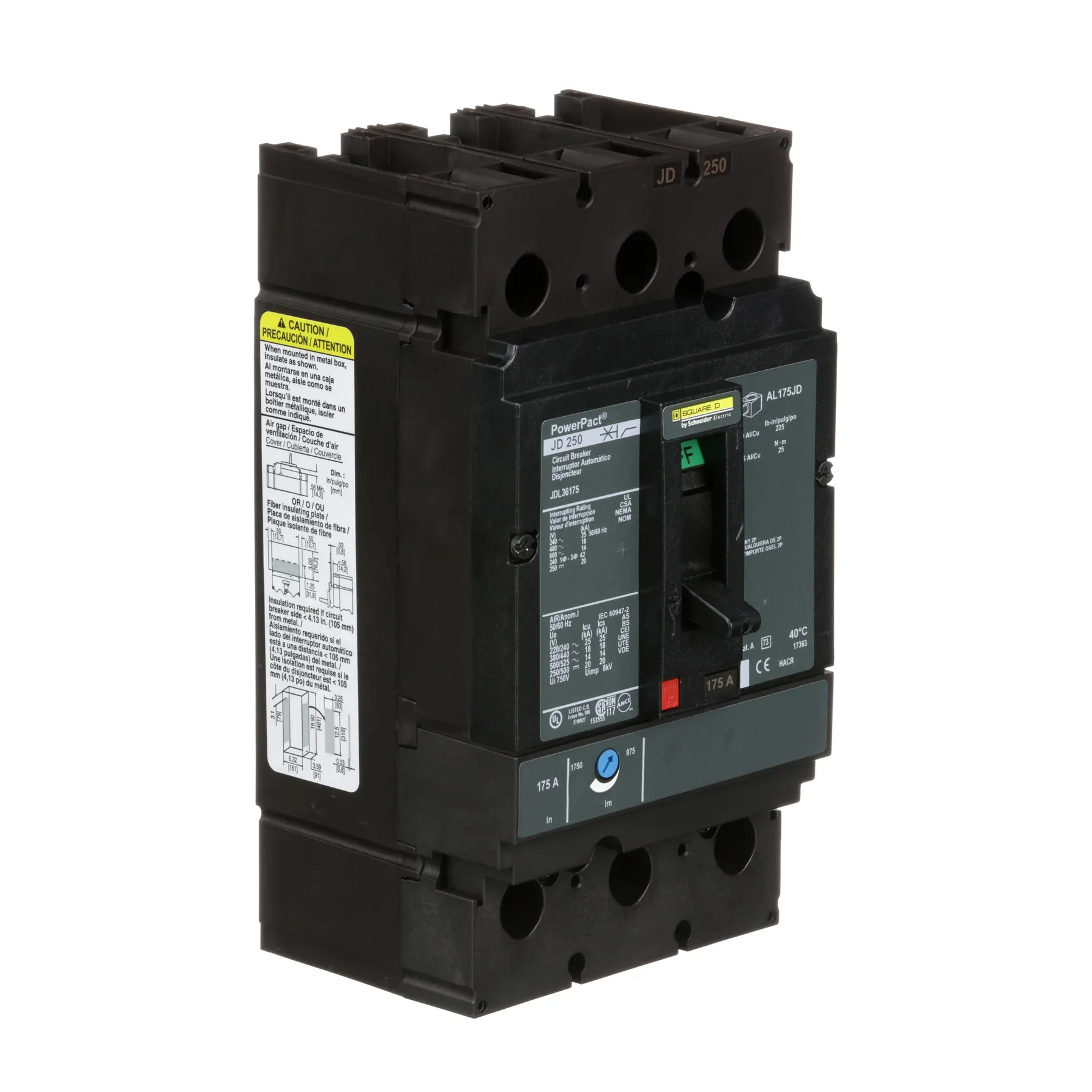

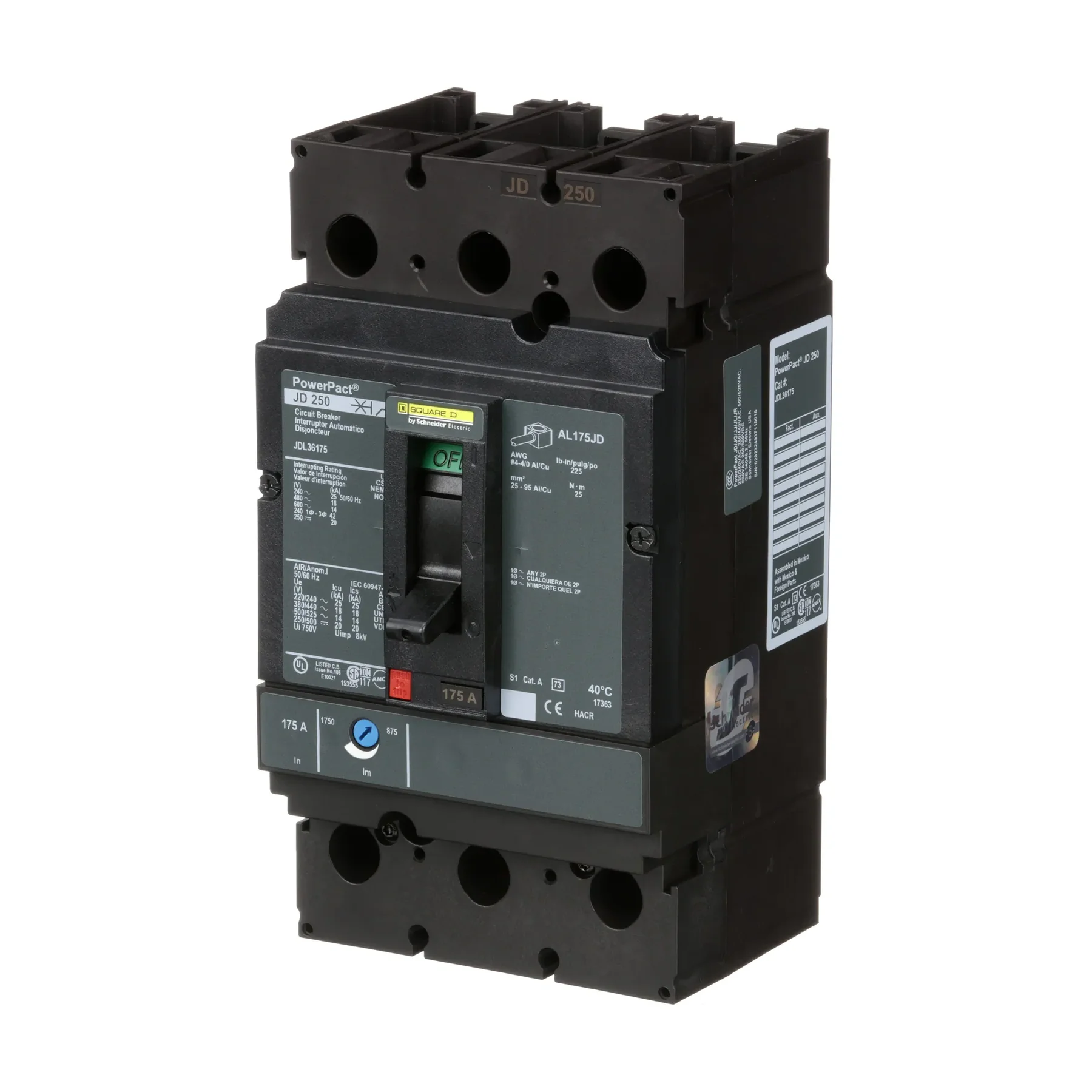

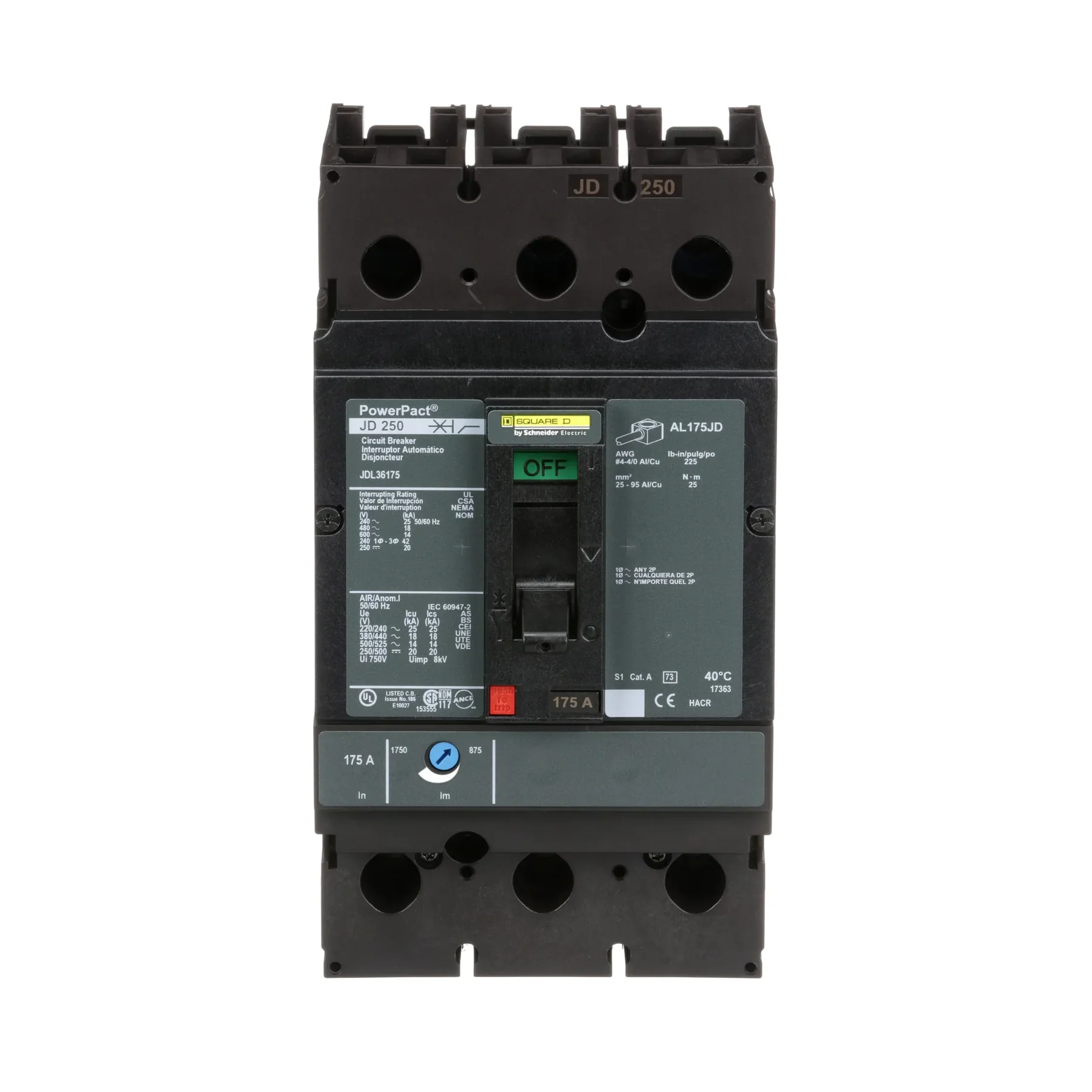

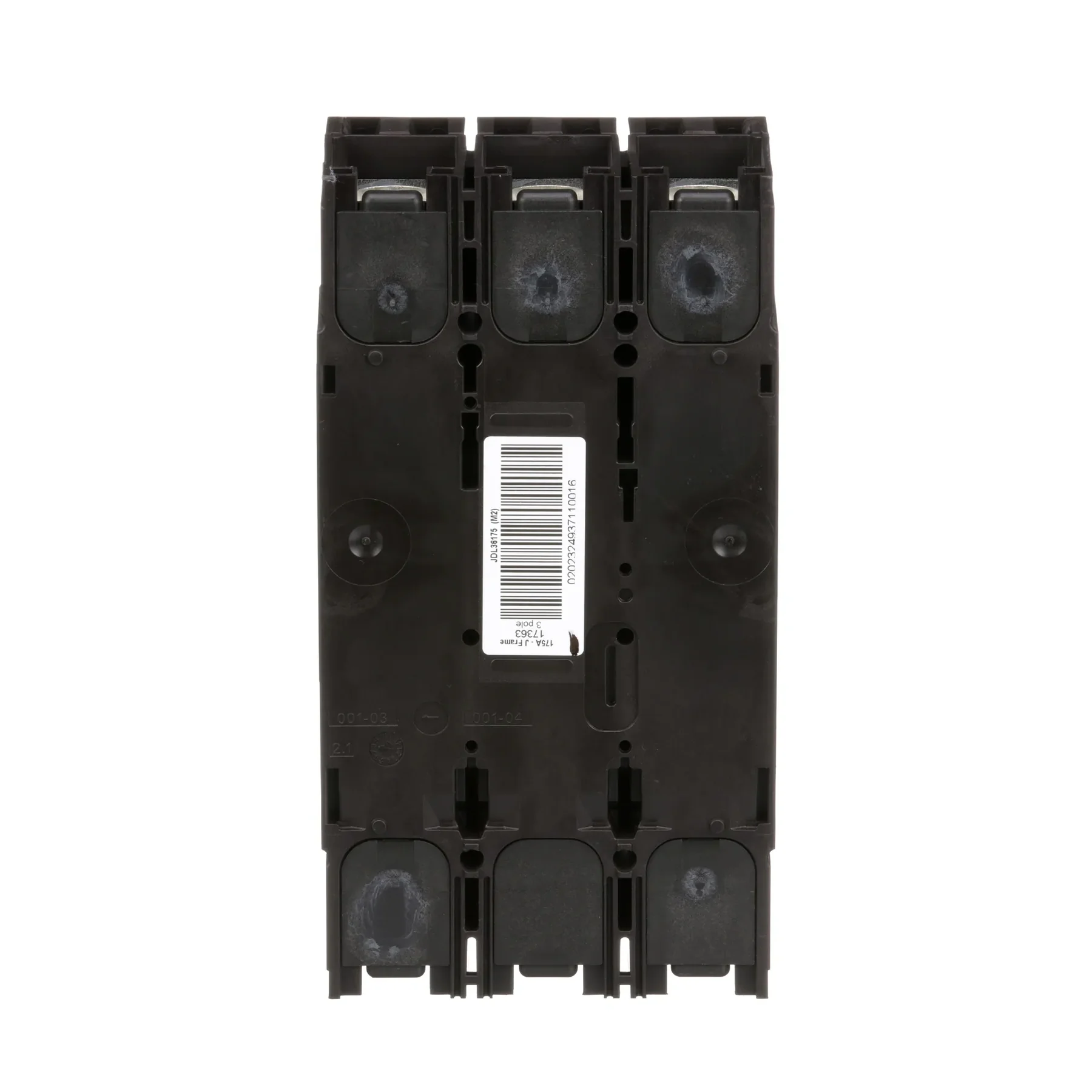

FavoriteJDL36175 – Square D – Molded Case Circuit Breaker Feed-Thru – 175 Amp – 3 Pole – 600 Volt
$799.99
Description
This product is a square d molded case circuit breaker 3 pole 175 ampere with jdl type Frame it has a standard interrupting capacity with non-interchangeable trip (LI) Long-Time and Instantaneous trip functions and line & load side lug terminals thermal magnetic molded case circuit breakers.
Specifications
| Type | Thermal Magnetic- Current Limiting- Adjustable |
| Frame Type | J |
| Voltage Rating | 600 Volt AC 50/60 Hertz- 250 Volt DC |
| Maximum AC Voltage Rating | 600 Volt |
| Maximum DC Voltage Rating | 250 Volt |
| Current Rating | 175 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 14 Kiloamp at 600 Volt AC- 20 Kiloamp at 250 Volt DC |
| Terminal Type | Line/Load Lug |
| Size | 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height |
| Approval | UL- CSA- CE |
| Brand Name | PowerPact™ |
| Model | JD |
| Additional Information | RoHS/REACH Compliant- Trip Setting 875 Amp (Low)- 1750 Amp (High)- Mounting Type Unit- Control Type Toggle- Terminal Wire Size 4 to 4/0 AWG (Copper/Aluminum)- Continuous Current Rating 80 Percent- Operation Ambient Air Temperature Rating 28 to 158 Deg F- Application Distribution- Applicable Standard NOM 003- NEMA- IEC 60947-2 |
| Features/Benefits | Powerpact J-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits- Powerpact J-Frame Circuit Breakers are Available with Either Thermal Magnetic or Micrologic Electronic Trip Protection Units- This Powerpact J-Frame Circuit Breaker Provides Thermal Magnetic Circuit Protection with a Breaking Capacity of 14 Kiloamp at 600 Volt AC- All Powerpact J-Frame Circuit Breakers are Equipped with Dual Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product |
Additional information
| Weight | 6 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
