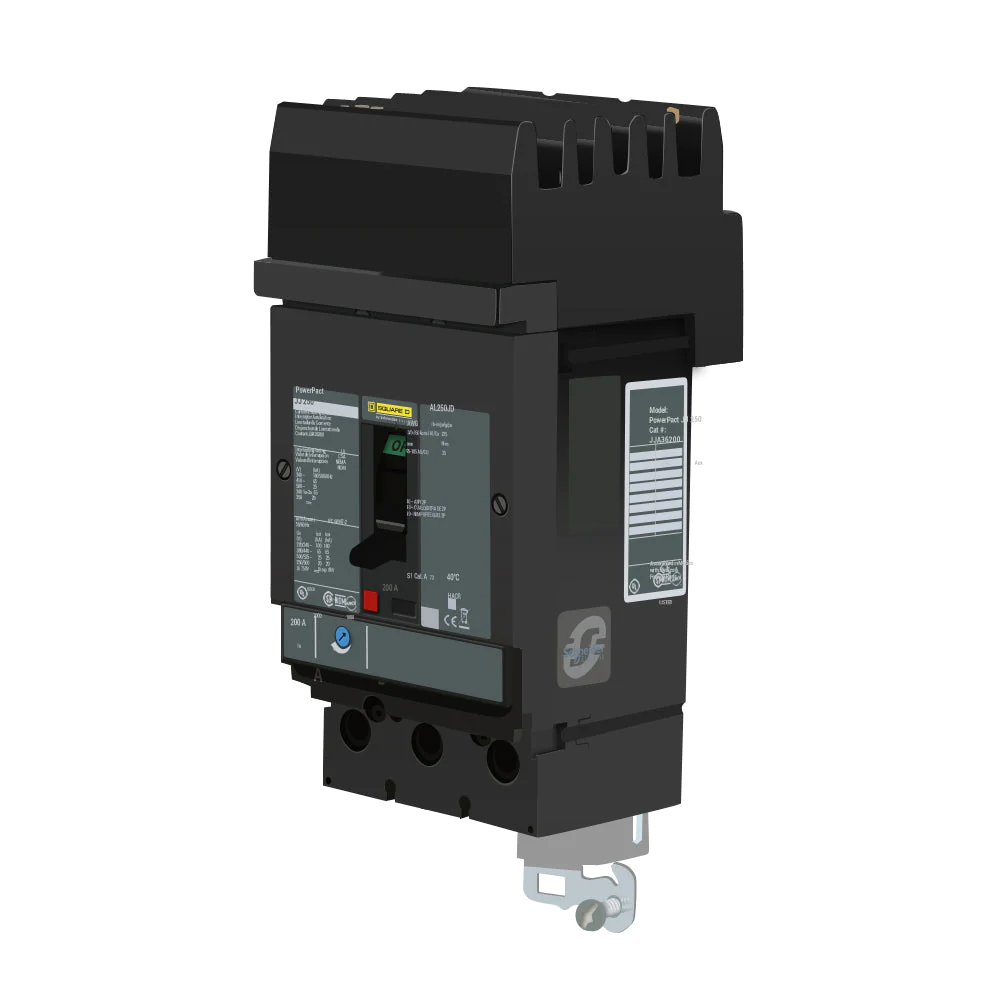

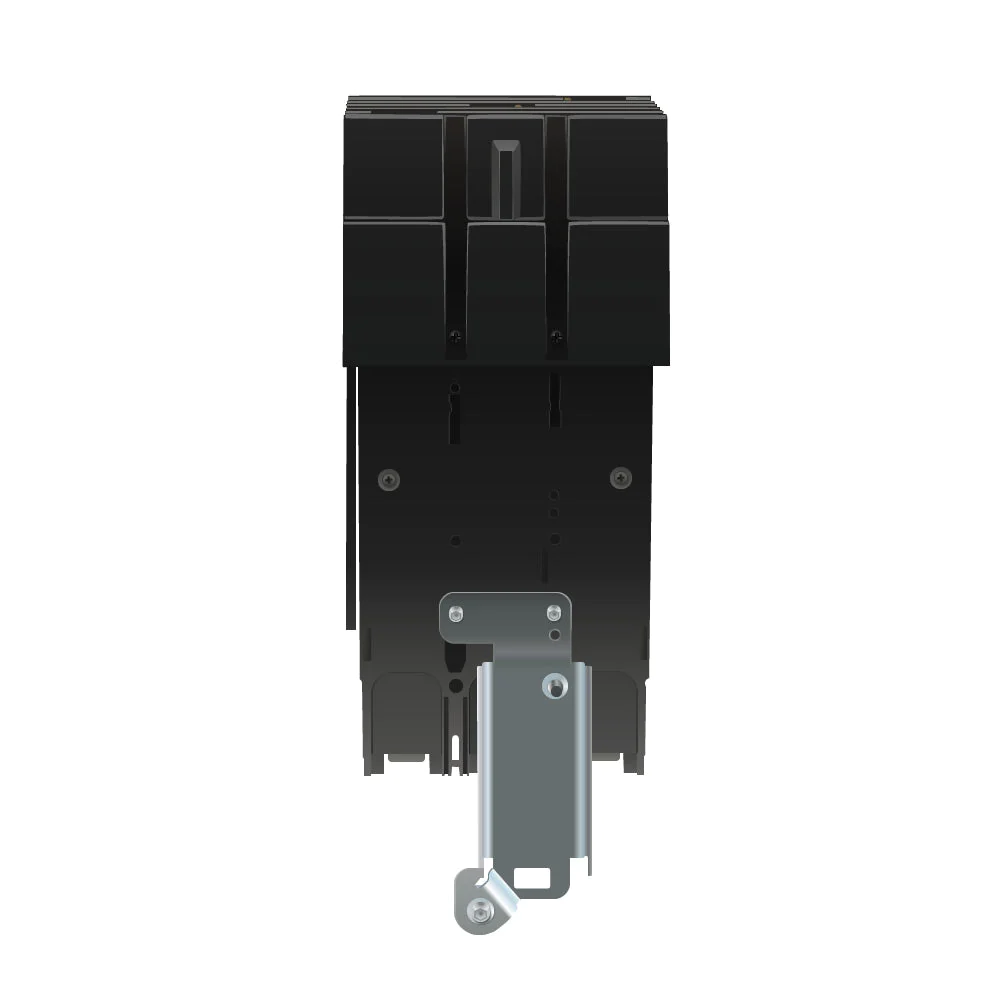

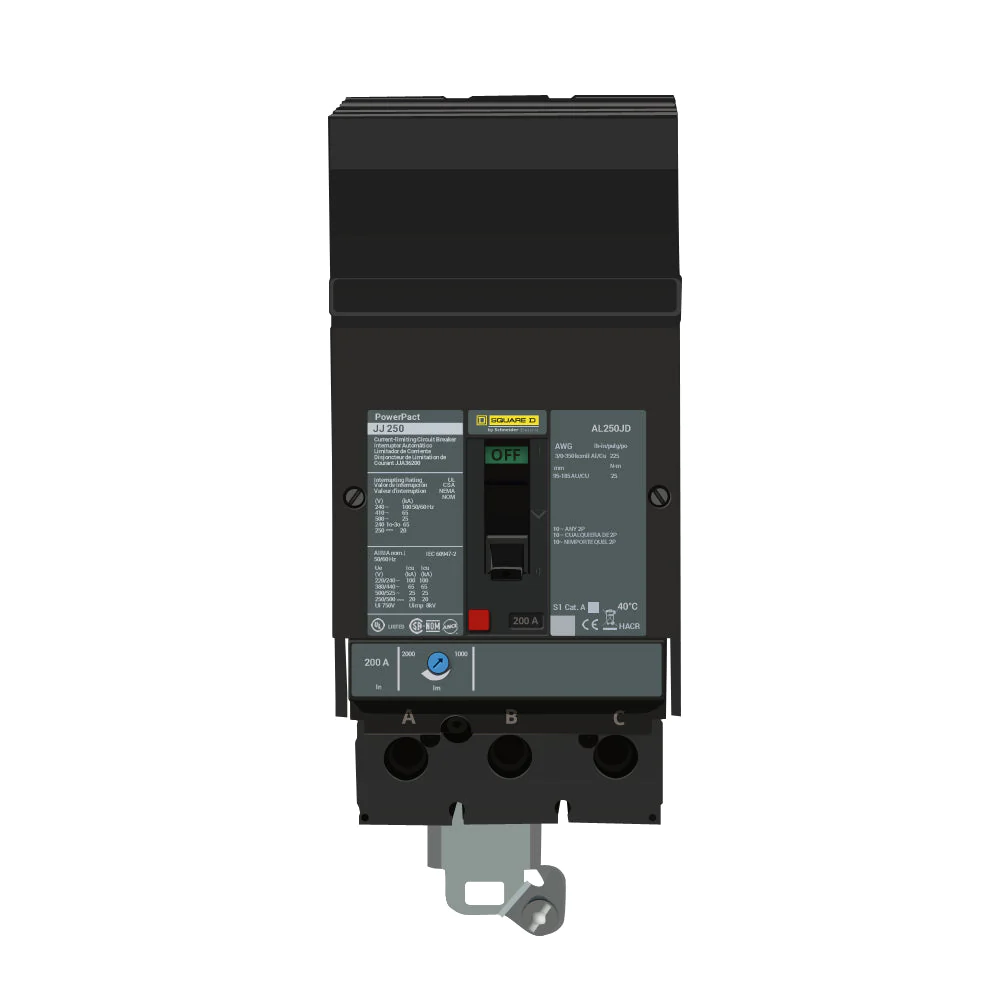

JJA36200 – Square D – Molded Case Circuit Breaker I-Line Plug-In – 200 Amp – 3 Pole – 600 Volt

SKU: JJA36200 Categories: ,

$2,119.99

Description

This product is a J frame 3 pole 200 ampere standard molded case circuit breaker with maximum voltage rating of 240/415 vac at 50/60 Hz built in magnetic trip setting of 1000 To 2000 ampere general application power distribution used on class 612 i-line[R] panelboard/switchboard.

Specifications

Type Thermal Magnetic- Current Limiting
Voltage Rating 600 Volt AC 50/60 Hertz- 250 Volt DC
Current Rating 200 Amp
Number of Poles 3
Interrupting Rating 25 Kiloamp at 600 Volt AC- 20 Kiloamp at 250 Volt DC
Trip Setting 1000 to 2000 Amp
Application Distribution
Used On Class 611/612 I-Line Panelboard and Switchboard
Approval UL- CSA- CE
Brand Name PowerPact™
Model JJ

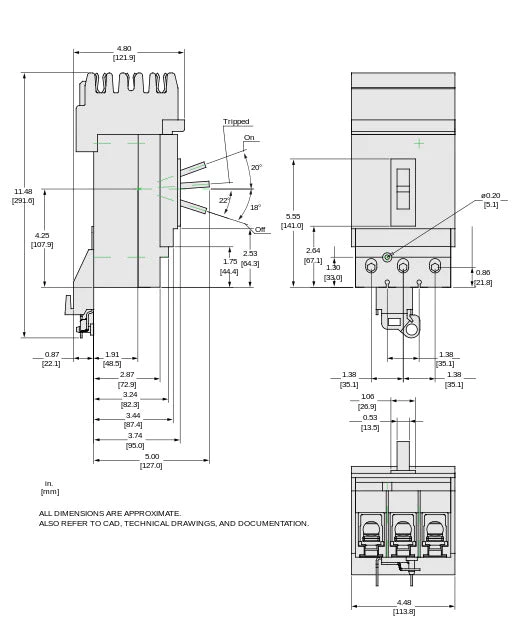

Additional Information RoHS/REACH Compliant- Overall Dimension 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height- Frame Type J- Terminal Type I-Line Connection Line Lug Load- Control Type Toggle- Terminal Wire Size 3/0 AWG to 350 KCMIL (Copper/Aluminum)- Continuous Current Rating 80 Percent- Phase Connection Type ABC- Operation Ambient Air Temperature Rating 28 to 158 Deg F- Applicable Standard IEC
Features/Benefits The Powerpact J-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits- J-Frame Circuit Breakers are Either Thermal-magnetic or Micrologic Electronic Trip Units- All Powerpact J-Frame Circuit Breakers are Equipped with Dual-Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product
