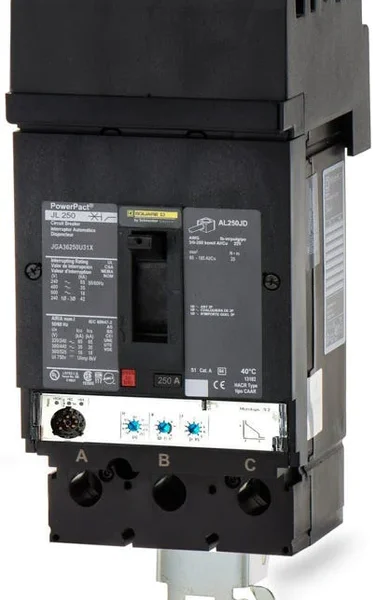

JGA36250U31X – Square D – Molded Case Circuit Breakers I-Line Plug-In – 250 Amp – 3 Pole – 600 Volt

SKU: JGA36250U31X Categories: ,

$2,775.99

Description

Square D Powerpact JGA series three pole 250 ampere i-line style plug-in molded case circuit breaker with maximum voltage rating of 600V and standard interrupting rating of 35 kiloampere at 480V suitable for reverse connection can be used for 2P applications complete with micrologic standard 3.2 non-interchangeable trip (LI) long-time and instantaneous trip functions.

Specifications

Type Electronic- Standard- Micrologic 3.2- LI- Current Limiting
Voltage Rating 600 Volt AC 50/60 Hertz- 250 Volt DC
Current Rating 250 Amp
Number of Poles 3
Interrupting Rating 18 Kiloamp at 600 Volt AC- 20 Kiloamp at 250 Volt DC
Application Distribution
Used On Class 611/612 I-Line Panelboard
Approval UL- CSA- CE
Brand Name PowerPact™
Model JG
Additional Information RoHS/REACH Compliant- Overall Dimension 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height- Frame Type J- Terminal Type I-Line Connection Line Lug Load- Control Type Toggle- Terminal Wire Size 3/0 AWG to 350 KCMIL (Copper/Aluminum)- Continuous Current Rating 80 Percent- Phase Connection Type ABC- Operation Ambient Air Temperature Rating 28 to 158 Deg F- Applicable Standard IEC
Features/Benefits The Powerpact J-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits- J-Frame Circuit Breakers are Either Thermal-magnetic or Micrologic Electronic Trip Units- All Powerpact J-Frame Circuit Breakers are Equipped with Dual-Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product
