| Type | Thermal Magnetic |
| Voltage Rating | 600 Volt AC- 250 Volt DC |
| Current Rating | 400 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 25 Kiloamp at 600 Volt AC |
| Trip Setting | 2000 to 4000 Amp |
| Application | Power Distribution |
| Used On | I-Line Panelboard And Switchboard |
| Approval | UL- CSA |
| Brand Name | PowerPact™ |
| Model | LH |

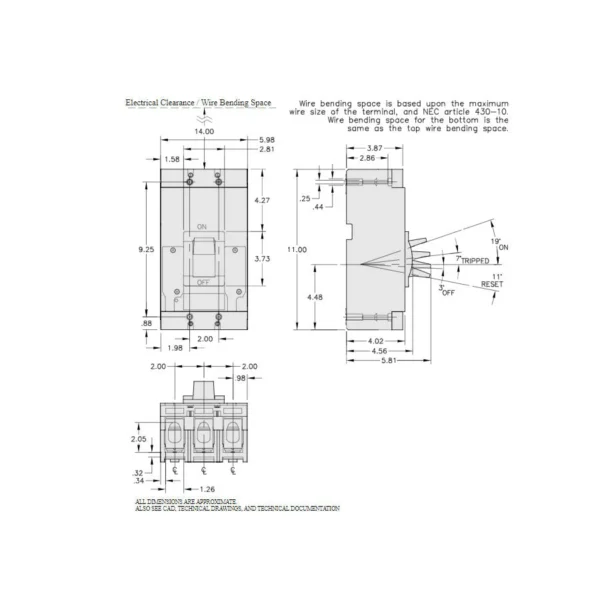

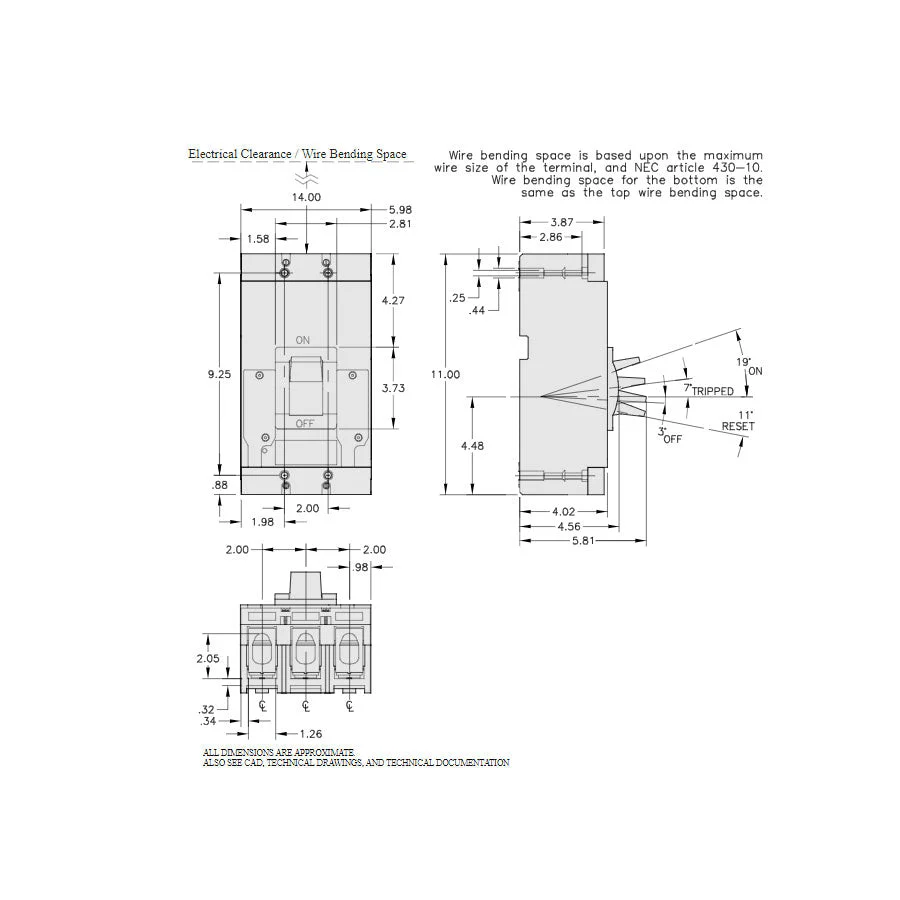

| Additional Information | RoHS/REACH Compliant- Overall Dimension 6 Inch Width x 4 Inch Depth x 12.5 Inch Height- Frame Type L- Terminal Type I-Line Connection Line Lug Load- Terminal Wire Size (1) 1 AWG to 600 KCMIL (Copper/Aluminum)- (2) 1 AWG to 250 KCMIL (Copper/Aluminum) |
| Features/Benefits | Returnable- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Halogen-Free- Green Premium Product |

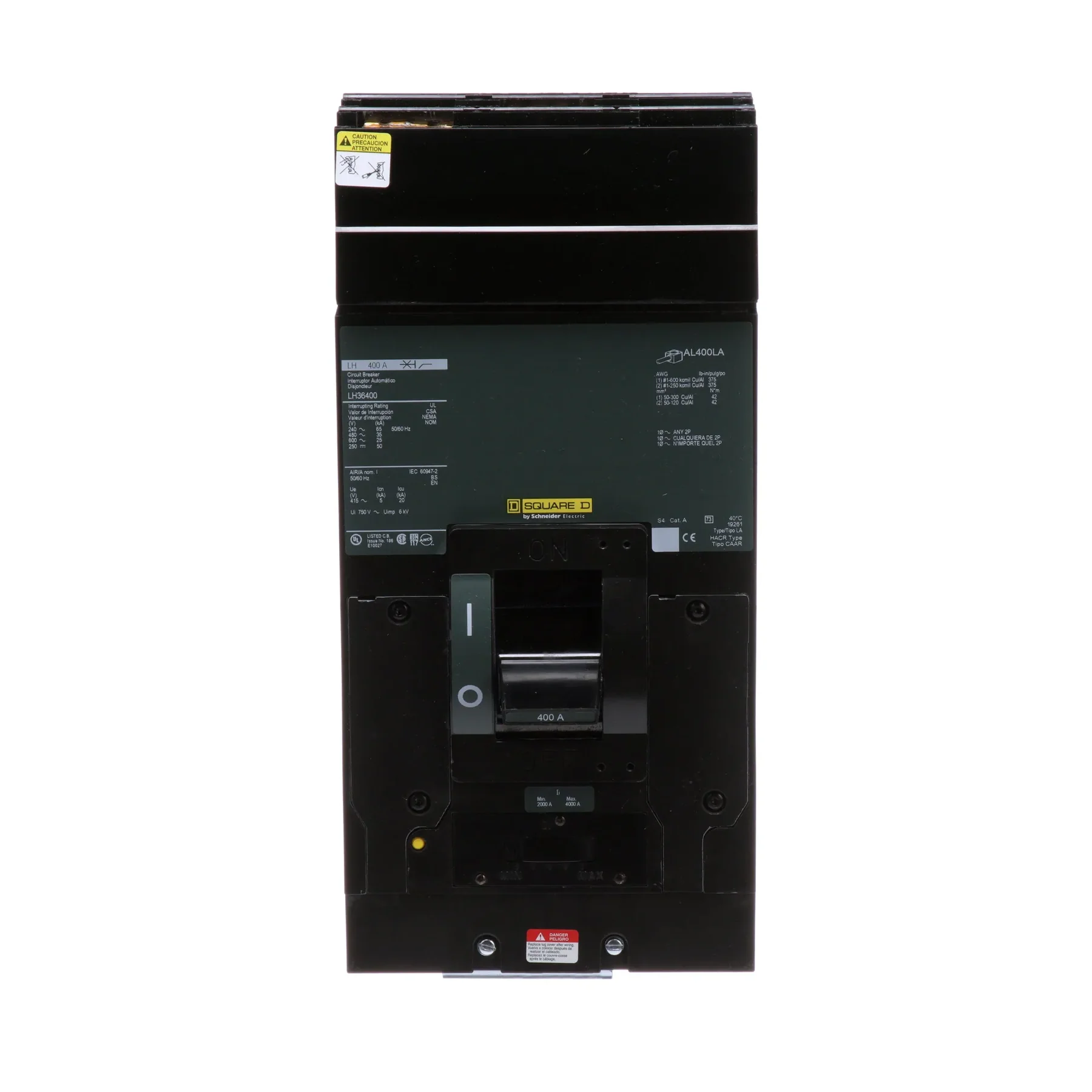

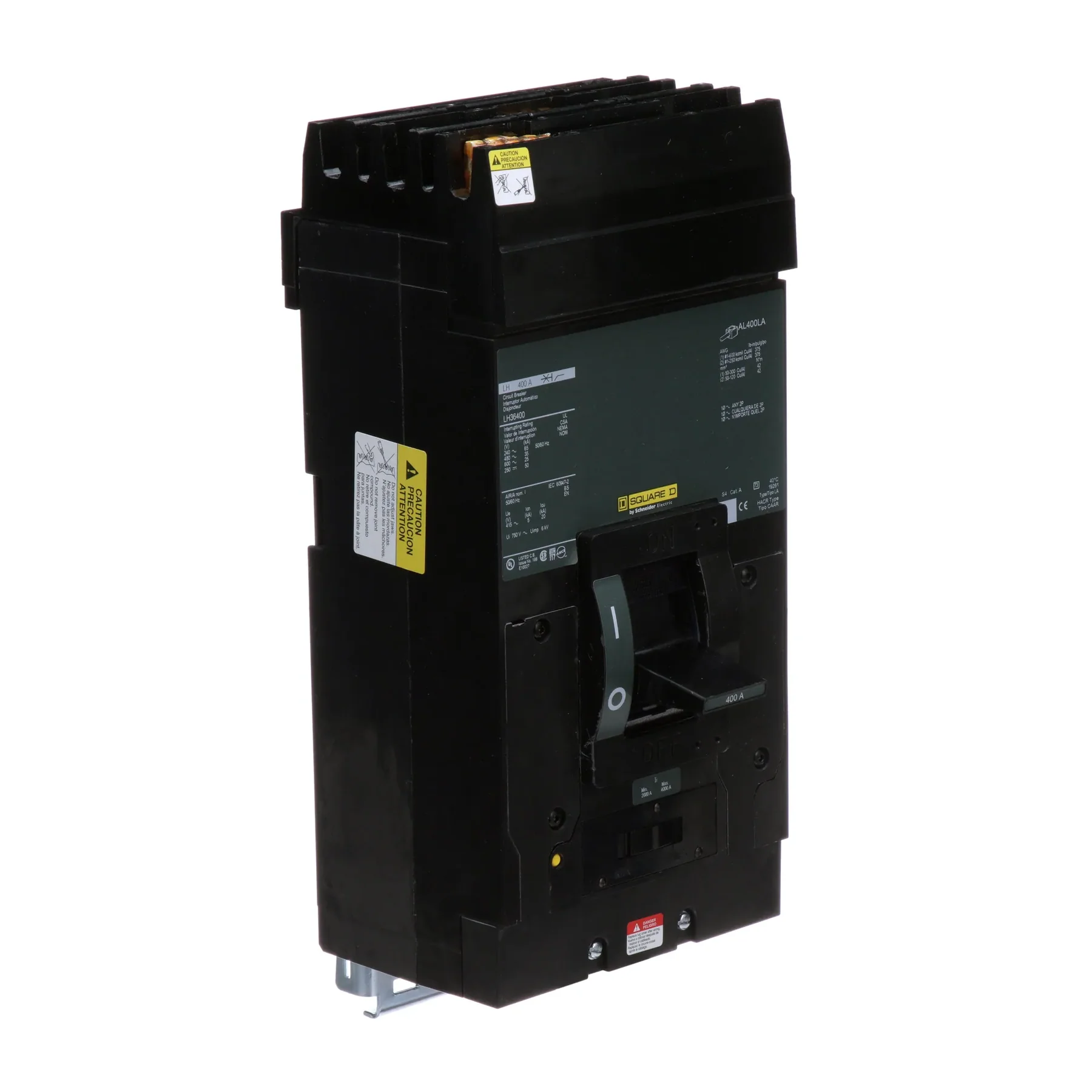

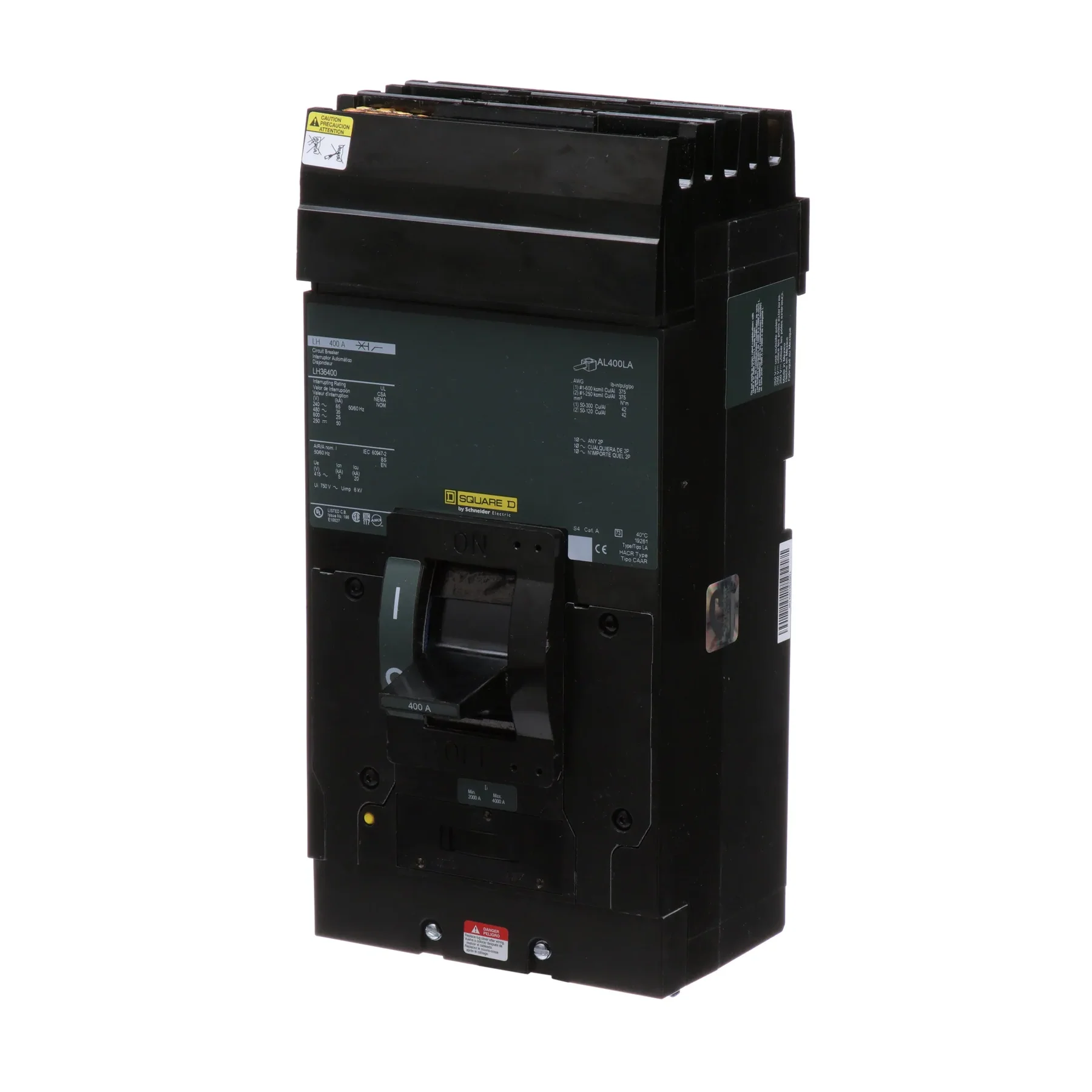

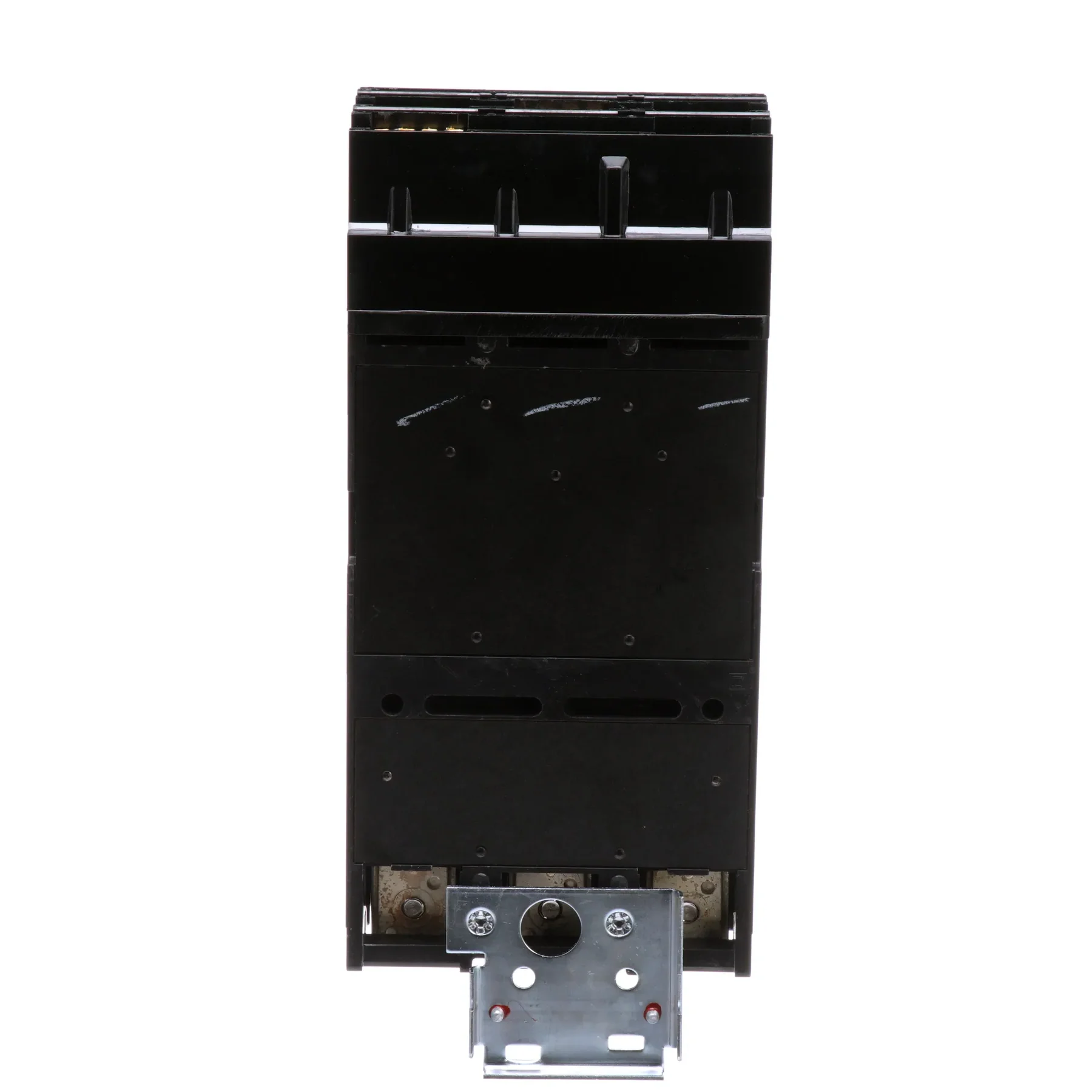

The Square D LH36400 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480V. The LH36400 has an I-Line style plug-in connection type and includes LI – long time and instantaneous trip functions.
| Weight | 12 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
