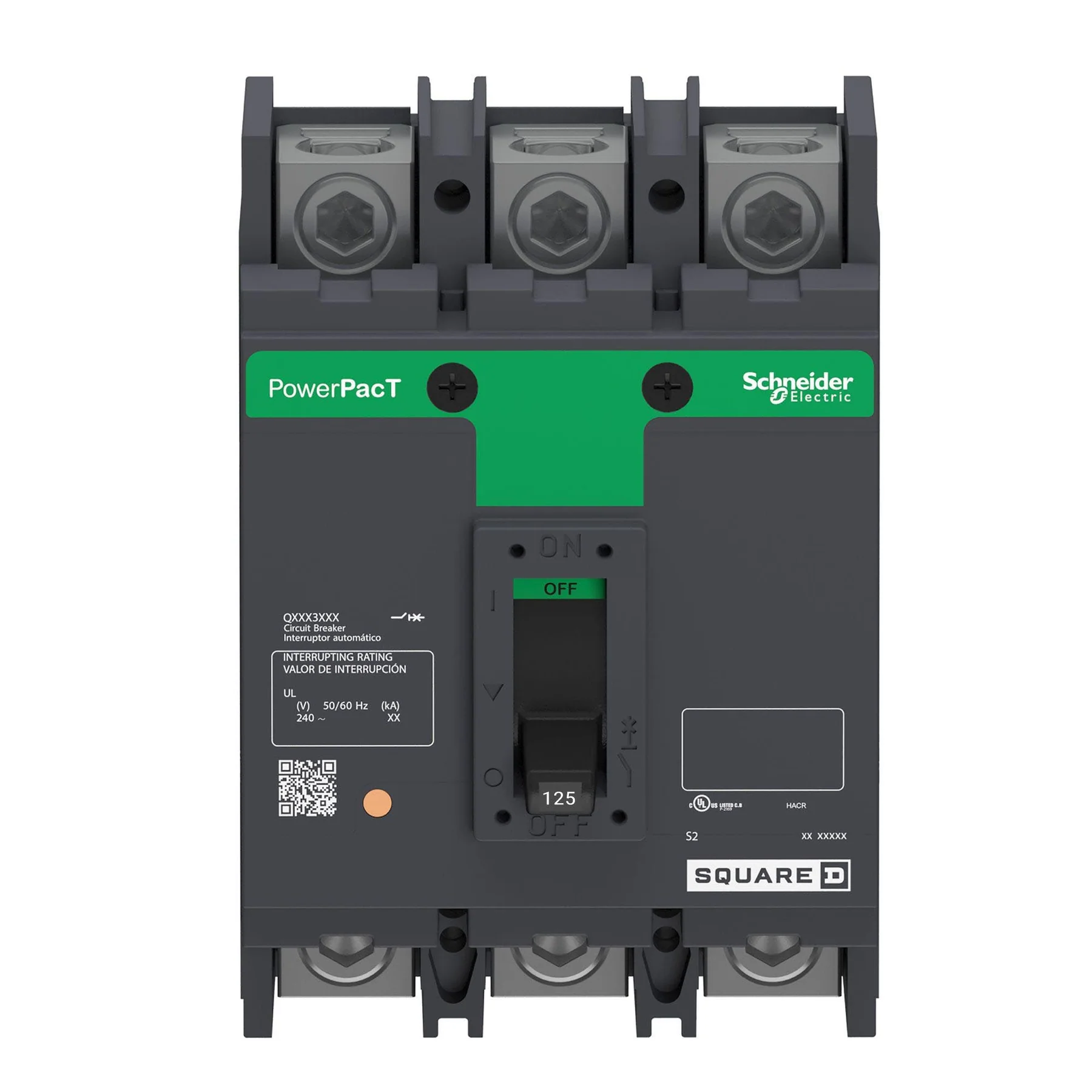

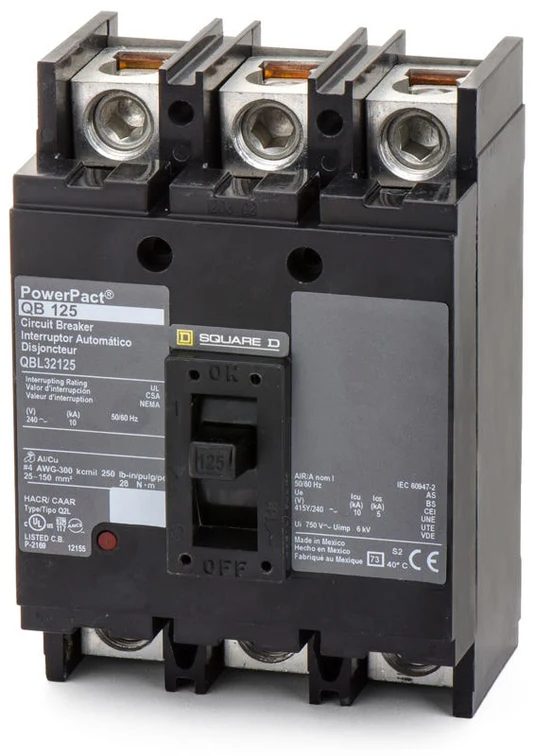

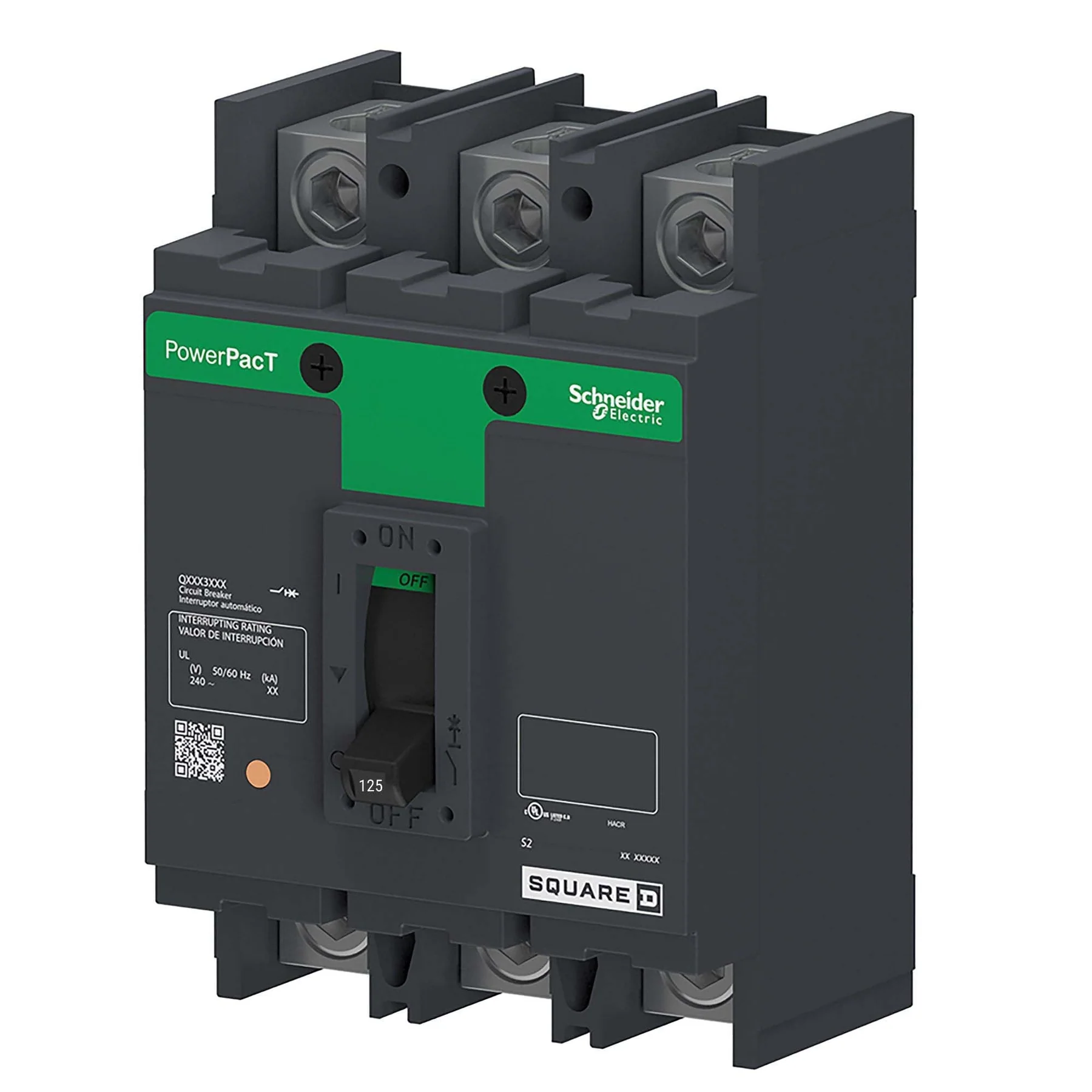

The Square D QBL32125 is a Molded Case Circuit Breaker. This type QBL circuit breaker is a member of The Powerpact family. The QBL32125 is a 3 pole, 240 Volt, 125 amp rated circuit breaker, with an AIC rating of 10kA@240V. The QBL32125 is manufactured by Square D. The QBL32125 uses a Feed-Thru connection. Includes Thermal Magnetic protection.
Specifications
Type
Molded Case- Thermal Magnetic
Frame Type
Q
Voltage Rating
240 VAC
Maximum AC Voltage Rating
240 V
Current Rating
125 Ampere
Number of Poles
3
Interrupting Rating
10 Kiloampere at 240 VAC (UL/CSA/NOM)- 10/5 Kiloampere at 240 VAC (IEC)
Terminal Type
Line Lug- Load Lug
Size
4.5 Inch W x 3.93 Inch D x 6.47 Inch H
Approval
UL- CSA- CE
Brand Name
PowerPactâ„¢
Model
Series QB
Additional Information
Wire Size 4 AWG to 300 KCMIL (Aluminum/Copper)- Mounting Type Unit- Application Provides Overload and Short Circuit Protection- Used On Panelboard and Switchboard
Features/Benefits
Returnable- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Halogen-Free- Green Premium Product
