In stock

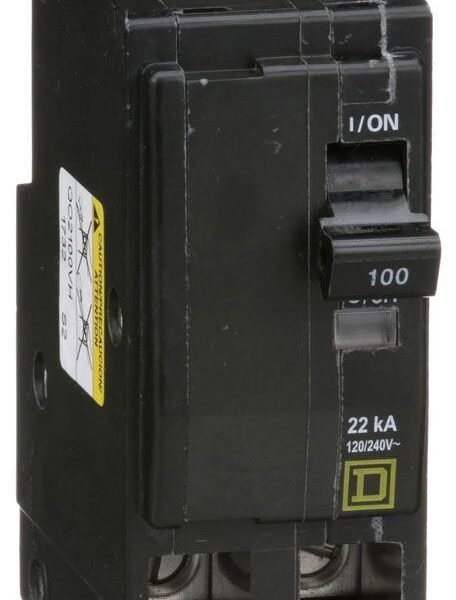

FavoriteQO2100VH – Square D – 22kA Circuit Breaker Plug in – 100 Amp – 2 Pole – 210 Volt
$74.99
Description
Square D QO series double pole single phase 100 ampere plug-on molded case circuit breaker with maximum voltage rating of 240V tripping method common trip thermal magnetic and standard interrupting rating of 22 kiloampere at 120V (LI) Long-Time and Instantaneous trip functions suitable for QO Series load centers.
Specifications
| Type | Common Trip- Miniature- Standard |
| Number of Poles | 2 |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz |
| Current Rating | 100 Amp |
| Interrupting Rating | 22 Kiloamp |
| Terminal Type | Box Lug |
| Wire Size | 4 to 2/0 AWG (Copper/Aluminum) |
| Mounting | Plug-In |
| Used On | QO Load Center- NQ/NQOD Panelboard/OEM Interior/Speed-D Switchboard Distribution Panel |
| Size | 1.5 Inch Width x 2.91 Inch Depth x 3.5 Inch Height |
| Approval | UL- CSA |
| Brand Name | QO™- Homeline™ |
| Model | QO |
| Additional Information | RoHS/REACH Compliant- Ambient Rating 104 Deg F- Tightening Torque Rating 40.71 Inch-Pound |
| Features/Benefits | QO Miniature Circuit Breakers are Plug-On Products for Use in QO Load Centers- NQOD/NQ Panelboards/OEM Interiors or Speed-D Switchboard Distribution Panels- RoHS/REACH Compliant- Mercury-Free- Halogen-Free- HACR Rated- Green Premium Product |
Additional information
| Weight | 1.5 lbs |
|---|---|
| Condition | New |
| GTIN |
