FavoritePrice range: $35.99 through $69.99
| Type | Common Trip- Miniature- Standard |
| Number of Poles | 3 |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz- 48 Volt DC |
| Current Rating | 40 Amp |
| Interrupting Rating | 5/10 Kiloamp |
| Terminal Type | Box Lug |
| Wire Size | 8 to 2 AWG (Copper/Aluminum) |
| Mounting | Plug-In |
| Used On | QO Load Center- NQ/NQOD Panelboard/OEM Interior/Speed-D Switchboard Distribution Panel |
| Size | 2.24 Inch Width x 2.91 Inch Depth x 2.99 Inch Height |
| Approval | UL- CSA |
| Brand Name | QO™- Homeline™ |
| Model | QO |
| Additional Information | RoHS/REACH Compliant- Ambient Rating 104 Deg F- Tightening Torque Rating 44.25 Inch-Pound |
| Features/Benefits | QO Miniature Circuit Breakers are Plug-On Products for Use in QO Load Centers- NQOD/NQ Panelboards/OEM Interiors or Speed-D Switchboard Distribution Panels- RoHS/REACH Compliant- Mercury-Free- Halogen-Free- HACR Rated- Green Premium Product |

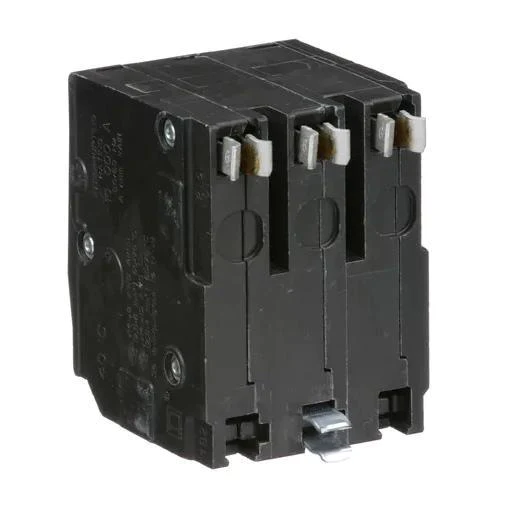

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 40 Amps and interrupting rating of 10 kilo-Amps. The 3-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 8 – 2 AWG.
| Weight | 2 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
