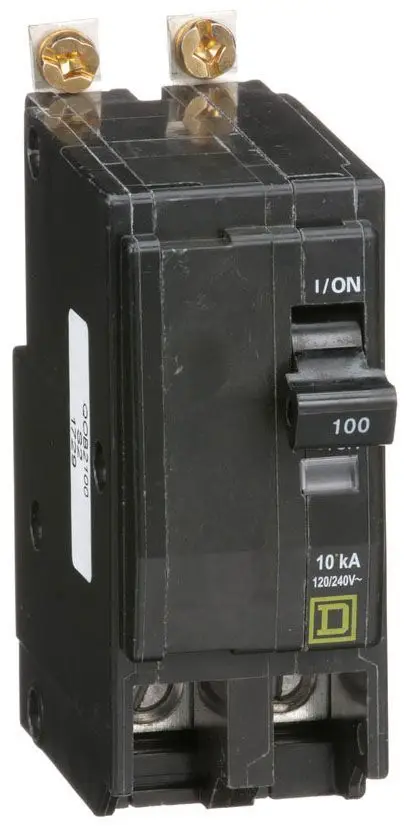

QOB2100 – Square D – 100 Amp Circuit Breaker Bolt-On – 100 Amp – 2 Pole – 240 Volt

SKU: QOB2100 Categories: ,



The Square D QOB2100 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 120/240VAC, 48VDC. It has an interrupting rating of 10kAIC at 120/240VAC, 5kAIC at 48VDC. The QOB2100 has a bolt-on mounting type and includes long time and instantaneous trip functions.


Type Miniature- Standard
Voltage Rating 120/240 Volt AC 50/60 Hertz- 48 Volt DC
Current Rating 100 Amp
Number of Poles 2
Interrupting Rating 10 Kiloamp at 120/240 Volt AC- 5 Kiloamp at 48 Volt DC
Installation Bolt-ON
Used On NQ Panelboard
Approval UL- CSA
Brand Name QO™
Model QOB
Additional Information RoHS/REACH Compliant- Overall Dimension 1.5 Inch Width x 2.91 Inch Depth x 3.5 Inch Height- Frame Type Q- Terminal Type Box Lug- Terminal Wire Size 4 to 2/0 AWG (Copper/Aluminum)- Phase Connection Type BC- Ambient Temperature Rating 104 Deg F
Features/Benefits HACR Rated- RoHS/REACH Compliant- Halogen-Free- Mercury-Free- Green Premium Product
