| Type | Miniature- Standard |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz- 48 Volt DC |
| Current Rating | 110 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 22 Kiloamp at 120/240 Volt AC |
| Installation | Bolt-ON |
| Used On | NQ Panelboard |
| Approval | UL- CSA |
| Brand Name | QO™ |
| Model | QOB-VH |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 4.49 Inch Width x 4.88 Inch Depth x 5.71 Inch Height- Frame Type Q- Terminal Type Box Lug- Terminal Wire Size 4 AWG to 300 KCMIL (Copper/Aluminum)- Ambient Temperature Rating 104 Deg F |
| Features/Benefits | HACR Rated- RoHS/REACH Compliant- Halogen-Free- Mercury-Free- Green Premium Product |

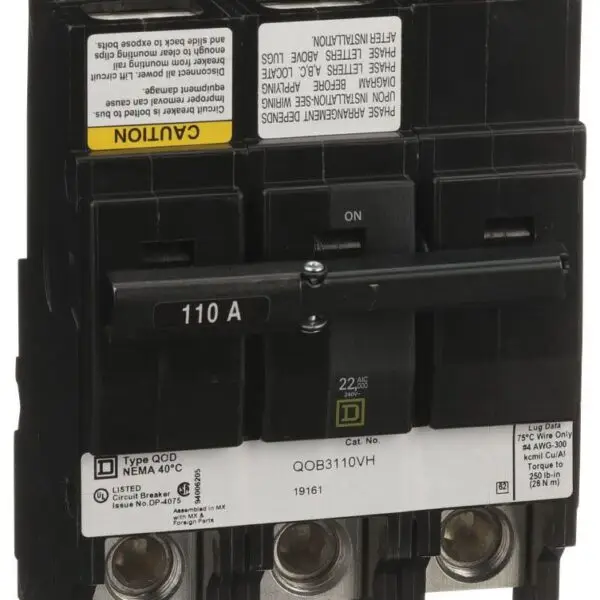

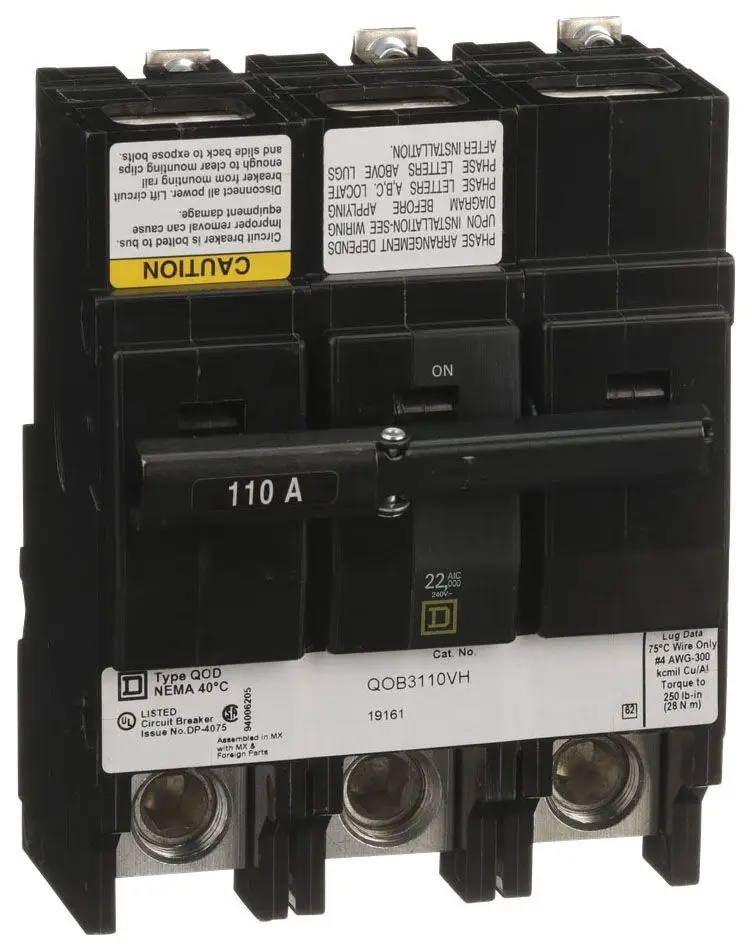

Square D QOB series three pole 110 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 22 kiloampere at 240V functions long-time and instantaneous suitable for QOB series load centers.
| Weight | 3 lbs |
|---|---|
| Condition | New |
| GTIN |
