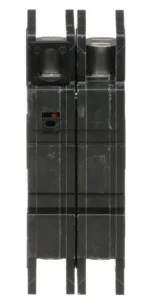

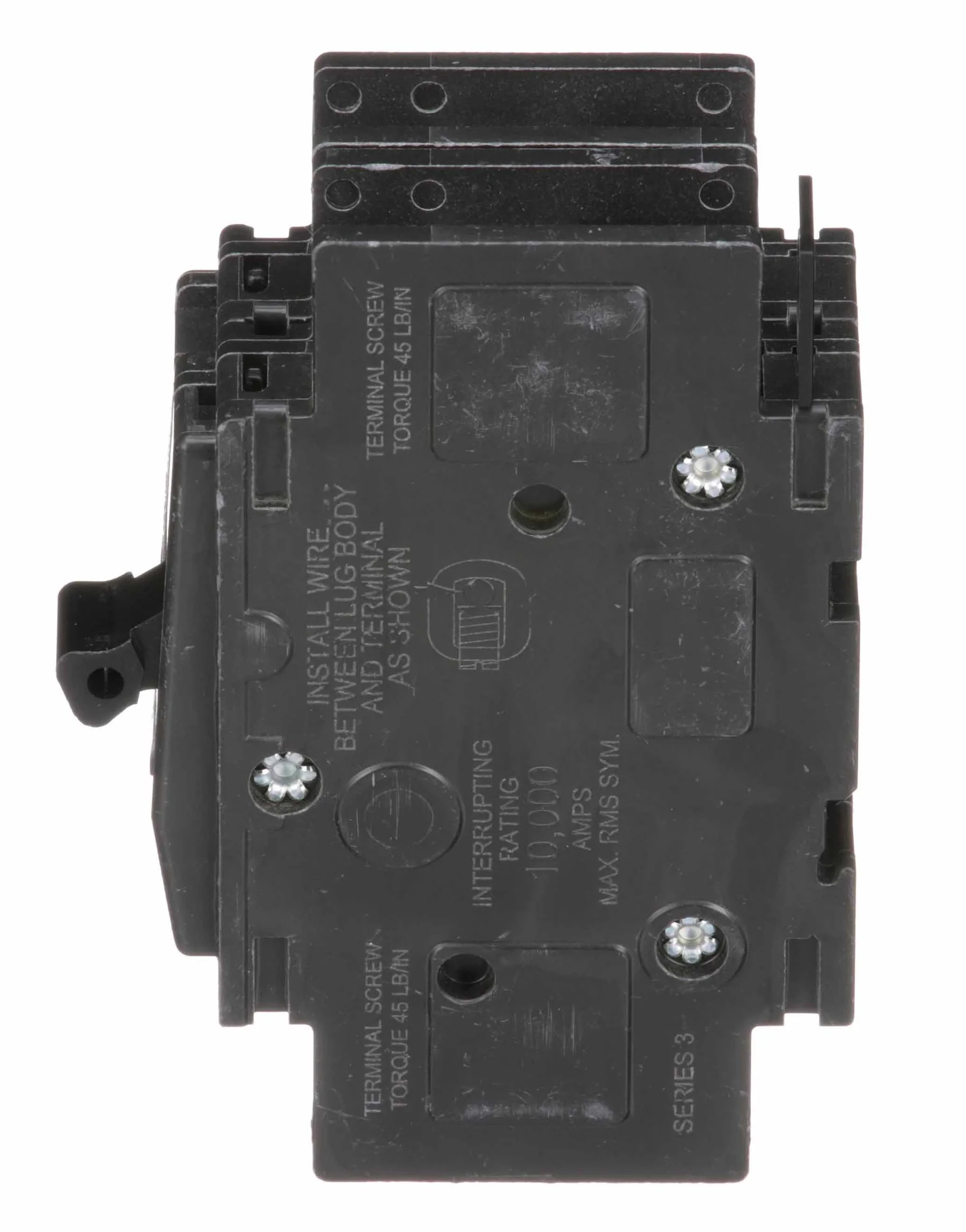

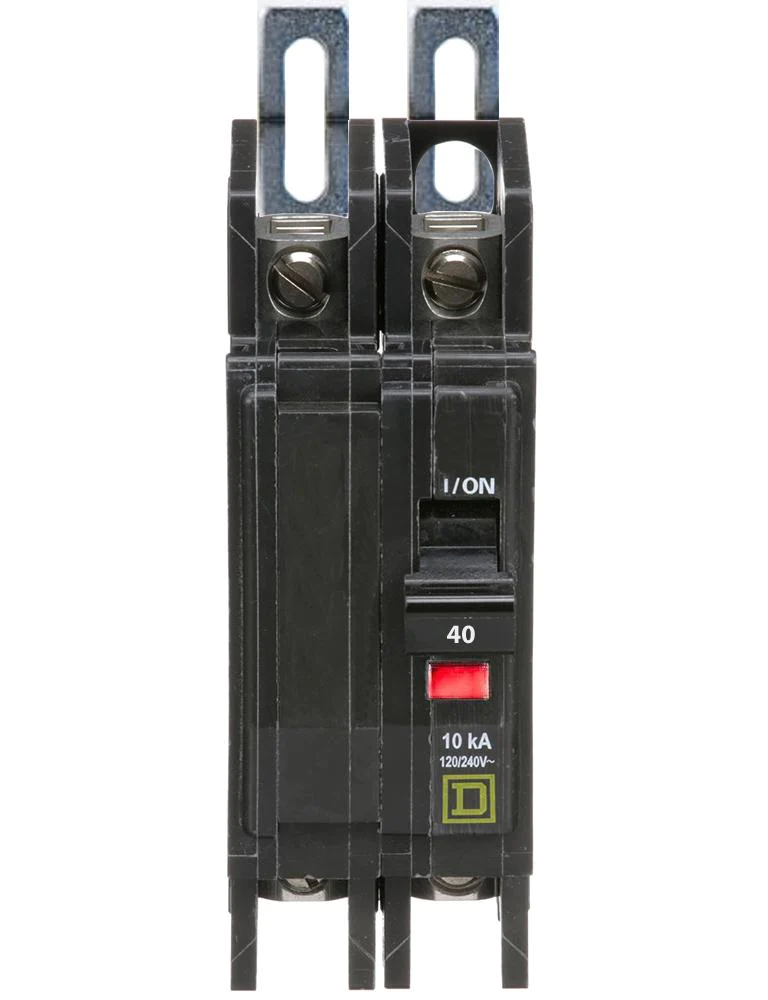

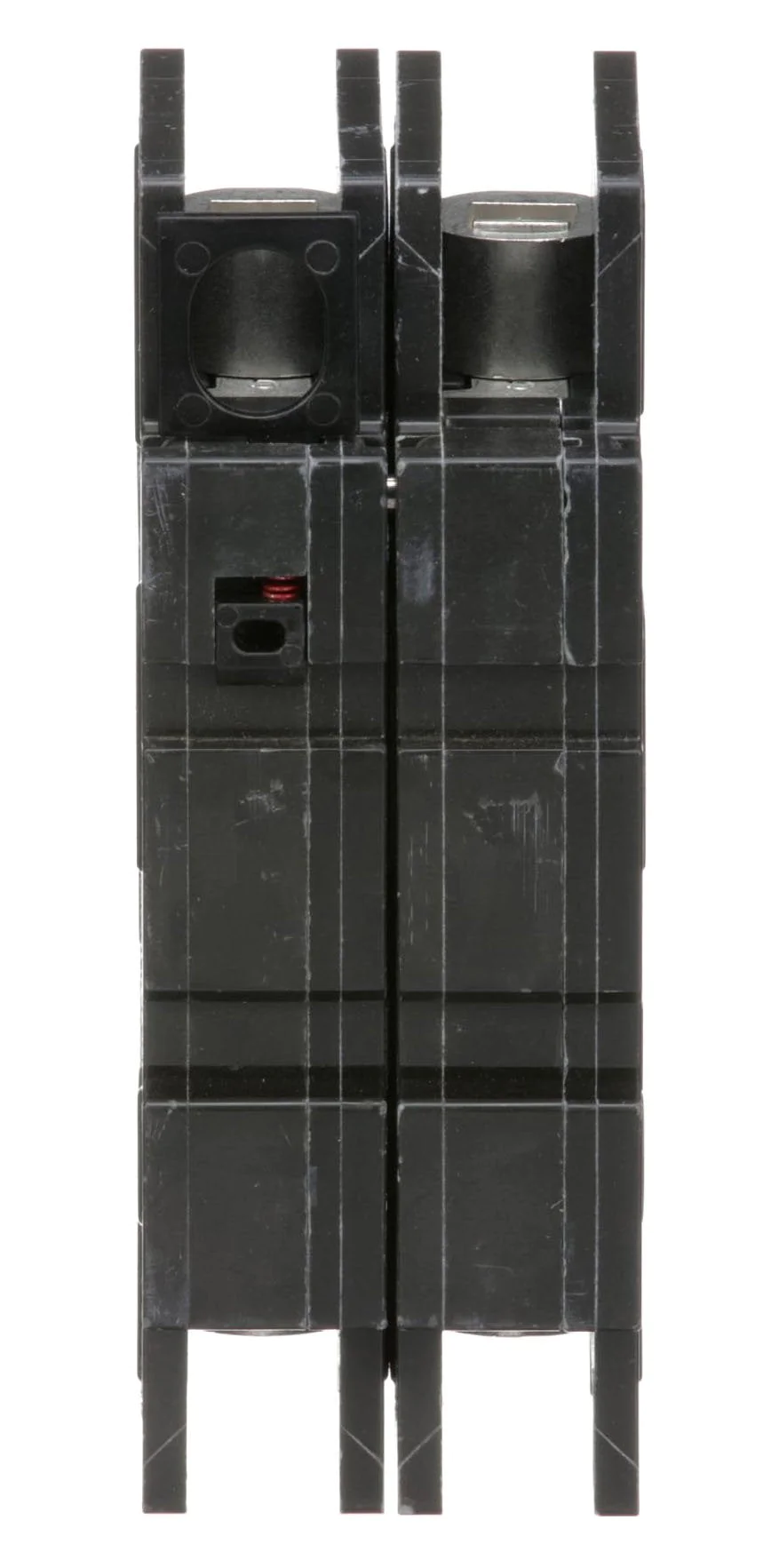

FavoriteQOU240 – Square D – 40 Amp Circuit Breaker Bolt-On – 40 Amp – 2 Pole – 240 Volt
$36.99
Description
This product is a Miniature circuit breaker has a voltage rating of 120/240 Volts current rating of 40 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 - 2 AWG. It has DIN rail/flush/surface mounting and provides protection against over current.
Specifications
| Type | Miniature- Standard |
| Number of Poles | 2 |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz- 48 Volt DC |
| Current Rating | 40 Amp |
| Interrupting Rating | 10 Kiloamp |
| Terminal Type | Slotted Box Lug Line/Load |
| Wire Size | 14 to 2 AWG (Copper/Aluminum) |
| Mounting | DIN Rail/Unit/Surface/Flush |
| Used On | OEM |
| Size | 1.5 Inch Width x 2.95 Inch Depth x 4.05 Inch Height |
| Approval | UL- CSA |
| Brand Name | QO™ |
| Model | QOU |
| Additional Information | RoHS/REACH Compliant- Tightening Torque Rating 45 Inch-Pound- Applicable Standard IEC |
| Features/Benefits | RoHS/REACH Compliant- Mercury-Free- Halogen-Free- Toxic Heavy Metal Free- HACR and Switching Duty Rated- Green Premium Product |
Additional information
| Weight | 2 lbs |
|---|---|
| Condition | New |
| GTIN |
