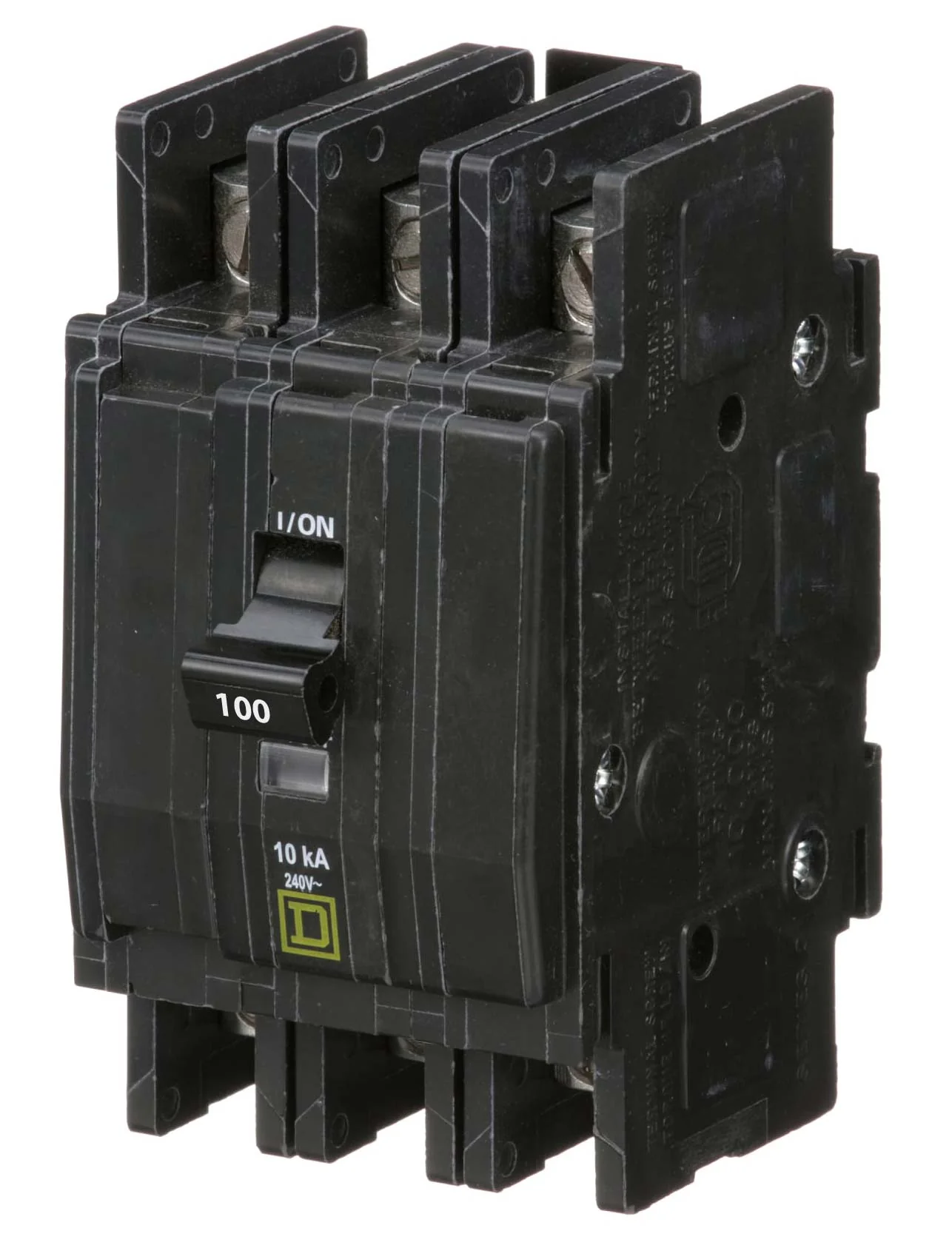

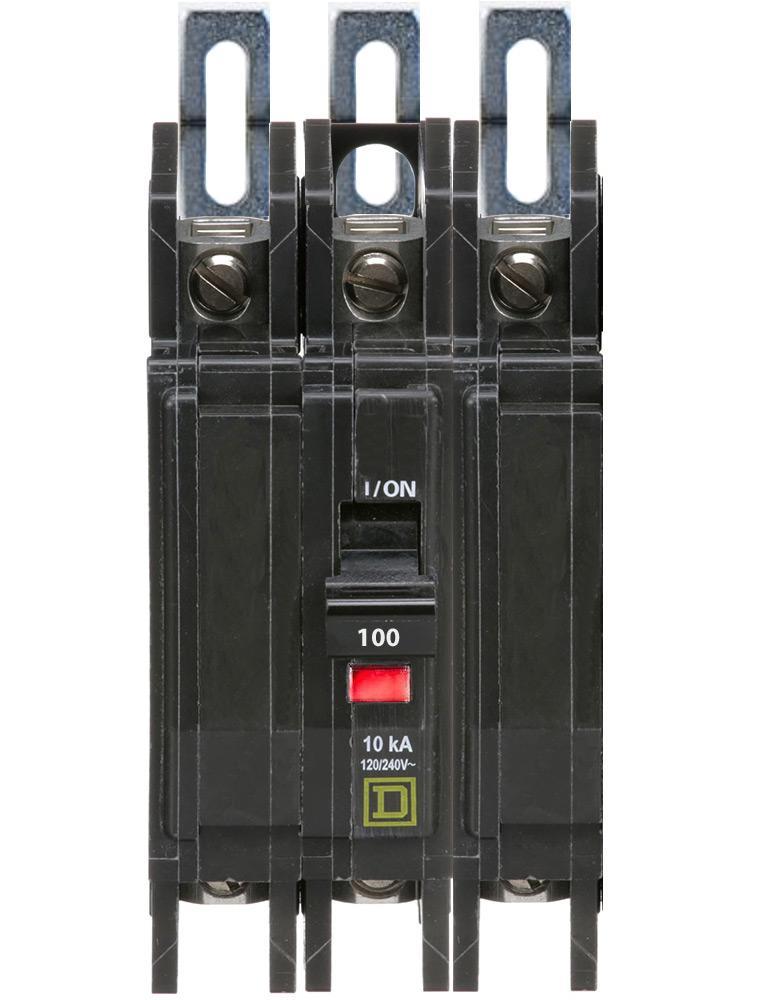

QOU3100 – Square D – 100 Amp Circuit Breaker Bolt-On – 100 Amp – 3 Pole – 240 Volt

SKU: QOU3100 Categories: ,

$181.99

Description

This product is a Miniature circuit breaker has a voltage rating of 120/240 VAC current rating of 100 Amps and interrupting rating of 10 kilo-Amps. The 3-Pole thermal/magnetic circuit breaker features a line/load lug terminal and accommodates aluminum/copper wire size of 4 – 2 AWG. It has 35 mm DIN rail/flush/surface mounting standard flush and provides protection against over current.

Specifications

Type Common Trip- Miniature- Standard
Number of Poles 3
Voltage Rating 120/240 Volt AC 50/60 Hertz- 60 Volt DC
Current Rating 100 Amp
Interrupting Rating 10 Kiloamp
Terminal Type Slotted Box Lug Line/Load
Wire Size 12 to 2/0 AWG (Copper/Aluminum)
Mounting DIN Rail/Unit/Surface/Flush
Used On OEM
Size 2.25 Inch Width x 2.95 Inch Depth x 4.45 Inch Height
Approval UL- CSA
Brand Name QO™
Model QOU
Additional Information RoHS/REACH Compliant- Tightening Torque Rating 45 Inch-Pound- Applicable Standard IEC
Features/Benefits Non-Reversible Line and Load Lugs- RoHS/REACH Compliant- Mercury-Free- Halogen-Free- HACR and Switching Duty Rated- Green Premium Product
