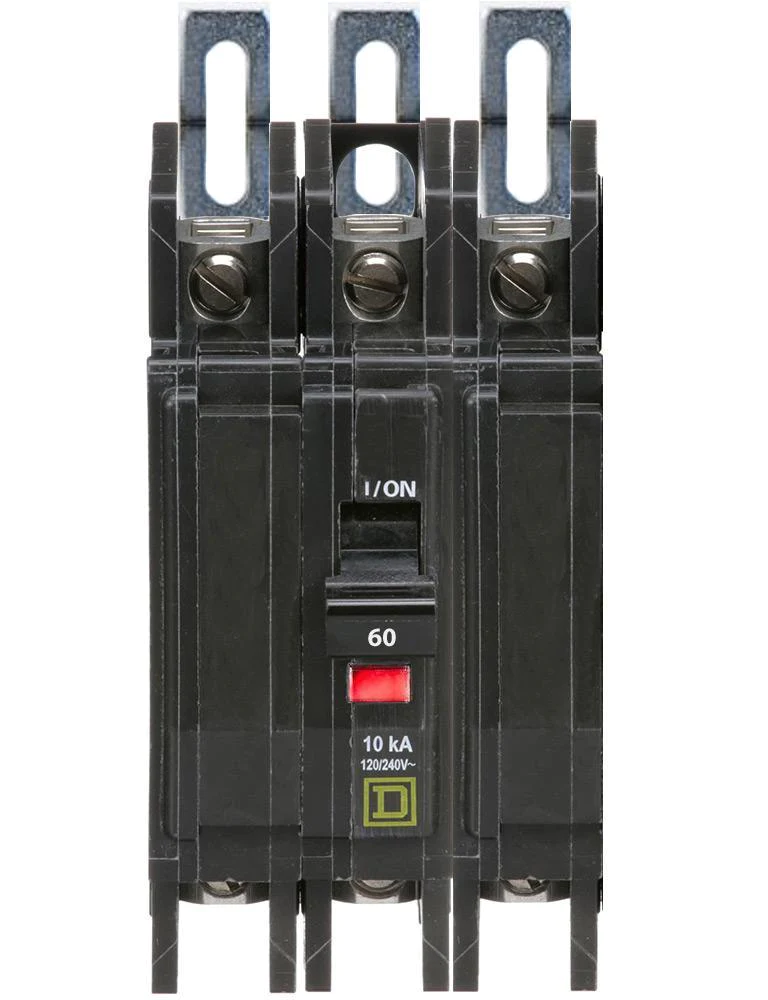

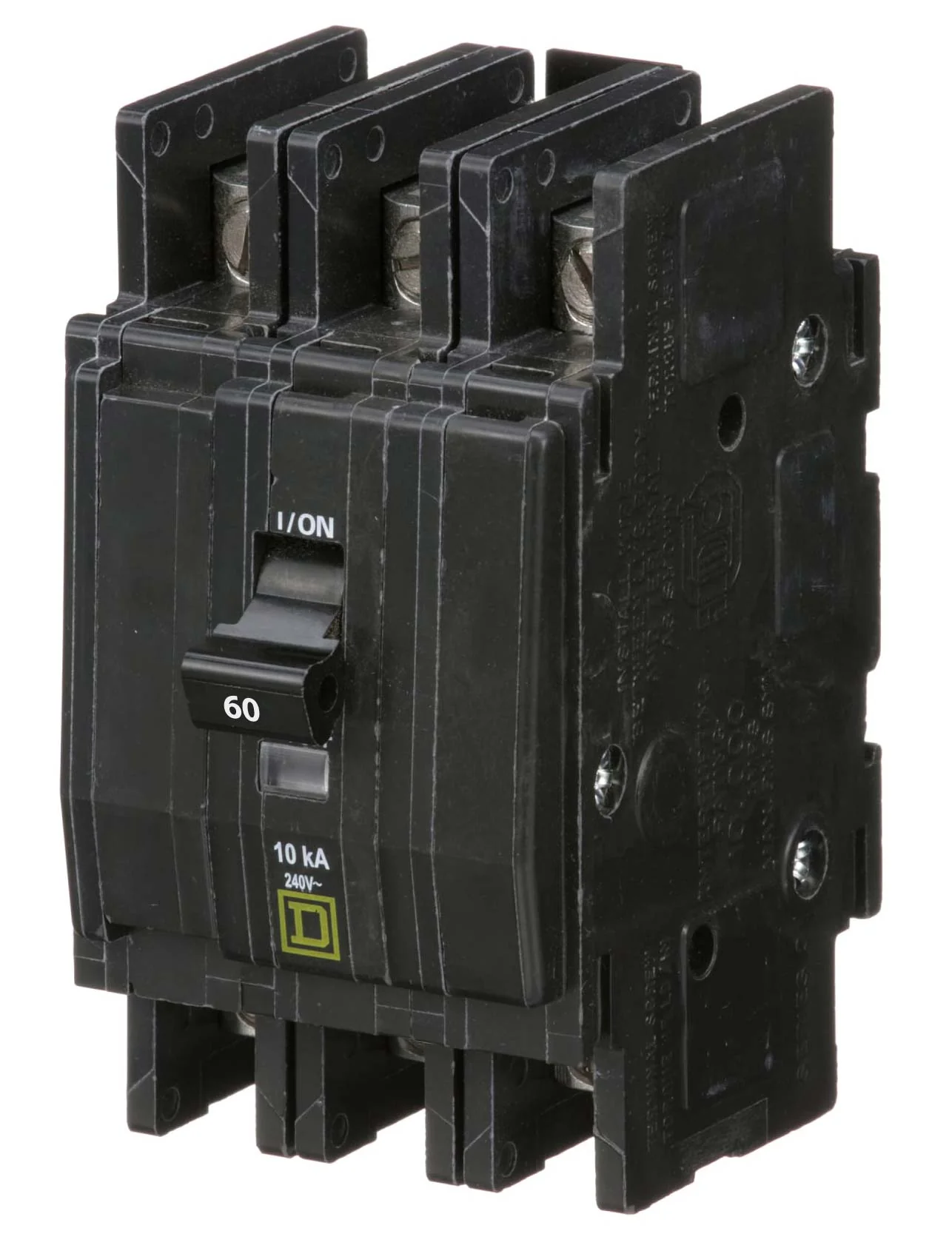

QOU360 – Square D – 60 Amp Circuit Breaker Bolt-On – 60 Amp – 3 Pole – 240 Volt

SKU: QOU360 Categories: ,

$121.99

Description

This product is a 3-Pole Standard miniature circuit breaker features thermal magnetic molded case for extra protection. Circuit breaker has current rating of 60 Amps and voltage rating of 240 VAC. It has interrupt rating of 10 kilo-Amps at 240 VAC and 5 kilo-Amps at 48/60 VDC. It accommodates copper or aluminum wire of range 14 – 2 AWG.

Specifications

Type Miniature- Standard
Number of Poles 3
Voltage Rating 120/240 Volt AC 50/60 Hertz- 48 Volt DC
Current Rating 60 Amp
Interrupting Rating 10 Kiloamp
Terminal Type Slotted Box Lug Line/Load
Wire Size 14 to 2 AWG (Copper/Aluminum)
Mounting DIN Rail/Unit/Surface/Flush
Used On OEM
Size 2.25 Inch Width x 2.95 Inch Depth x 4.05 Inch Height
Approval UL- CSA
Brand Name QO™
Model QOU
Additional Information RoHS/REACH Compliant- Tightening Torque Rating 45 Inch-Pound- Applicable Standard IEC
Features/Benefits RoHS/REACH Compliant- Mercury-Free- Halogen-Free- HACR and Switching Duty Rated- Green Premium Product
