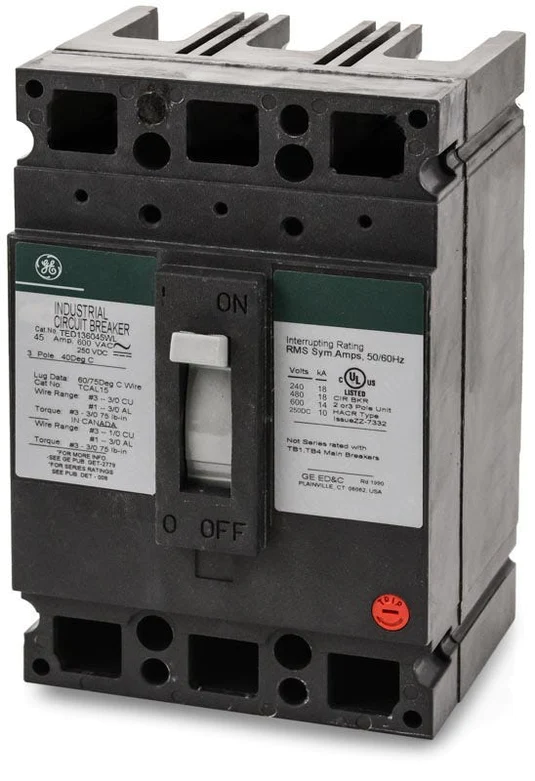

TED136045WL – GE – Molded Case Circuit Breaker Feed-Thru – 45 Amp – 3 Pole – 600 Volt

SKU: TED136045WL Categories: ,

$394.99

Description

The General Electric TED136045WL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 45 Amps and a voltage rating of 600VAC, 125/250/500VDC. It has an interrupting rating of 18kA at 120/240/277/480VAC. The TED136045WL has a feed-thru connection type and includes long time and instantaneous trip functions.

Specifications

Brand General Electric
Series TED
Amperage 45
Voltage 600VAC, 125/250/500VDC
Poles 3
Phase 3
Interrupting Rating 18kA at 120/240/277/480VAC
Frame Type TED
Connection Type Feed-Thru
Protection Thermal Magnetic
Functions Long Time and Instantaneous Trip
Terminal Connection Line and Load Side Lug
Wire Gauge 8 to 6 AWG
For Use With GE Light Panels, Motor Control Centers and Panelboards
Standards UL, CSA
Temperature Rating 10 to 50°C
Circuit Breaker Type Standard
Actuator Type Toggle
Body Material Plastic
Max Wire Size 1/0 AWG AL, 3 AWG CU
Min Wire Size 12 AWG AL, 14 AWG CU
Mpn TED136045WL

Shipping information

Free Shipping Policy
Parcel shipments with item value over $200.00 qualify for free economy shipping within the continental US. Please indicate at checkout if USPS or UPS is a required shipment method. We do not charge a handling fee or require a minimum amount on any order. Breakers & Controls Florida does not ship on customer accounts.

Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances Breakers & Controls Florida may reserve up to 5 business days to consolidate orders for complete shipment.

Warranty information

At Breakers & Controls Florida, we stand behind the quality and reliability of our products. We understand that purchasing used and obsolete breakers and controls requires confidence in their performance. Therefore, we have established the following warranty policy to ensure your satisfaction:

  1. Limited Warranty: All used and obsolete breakers and controls purchased from [Company Name] are covered by a limited warranty. This warranty guarantees that the products will be free from defects in material and workmanship under normal use and service for a specified period from the date of purchase.
  2. Warranty Period: The warranty period for used and obsolete breakers and controls may vary depending on the specific product and its condition at the time of purchase. The warranty duration will be clearly stated on the product listing or accompanying documentation. Please review the product description or contact our customer support team for the warranty period applicable to your purchase.
  3. Warranty Coverage: Our warranty covers the repair or replacement of defective parts or products at our discretion. If a covered product is found to be defective within the warranty period, we will either repair the product, replace it with an equivalent item, or provide a refund, depending on the availability of the specific product and the customer’s preference.

Additional information

Weight 9 lbs
Condition

New
