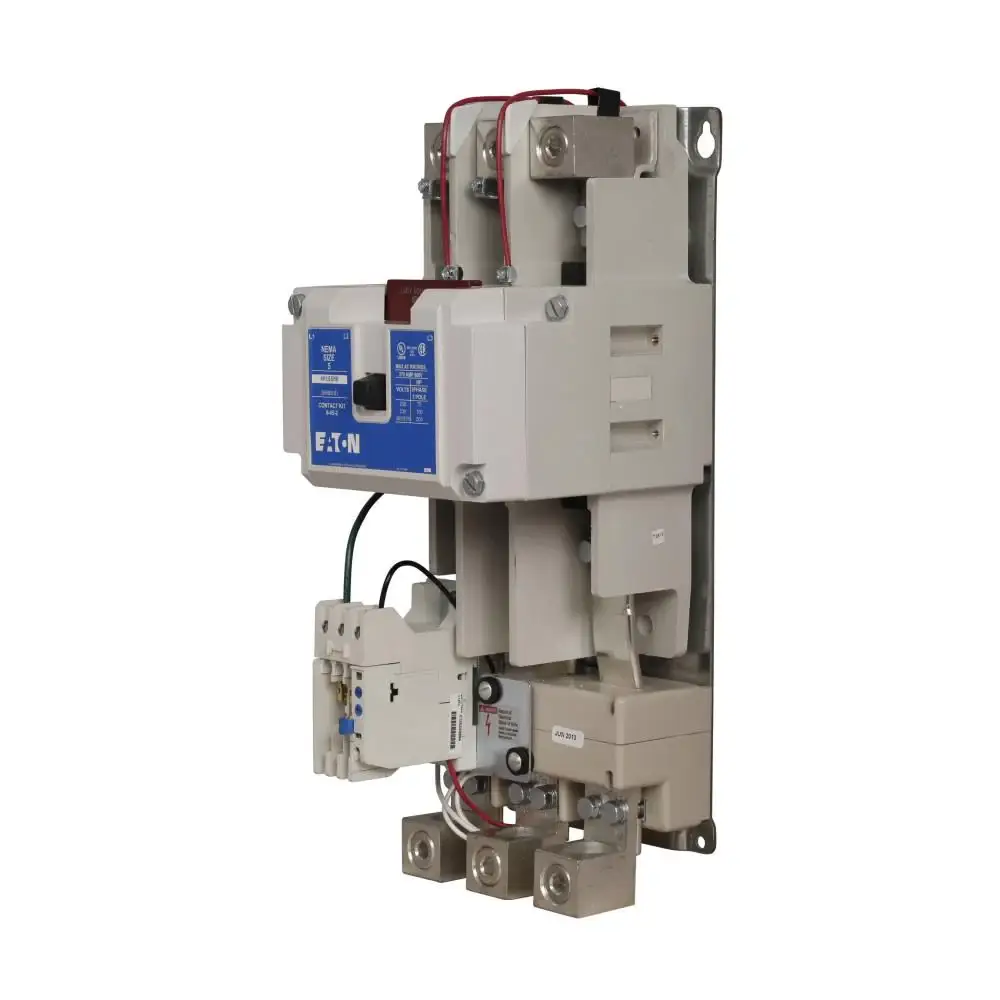

Eaton Freedom NEMA motor control starter, NEMA Freedom Series Non-Reversing Reset Overload Relay Starter, 75 hp at 208V, 100 hp at 240V, 200 hp at 480,600V maximum horsepower, 120V/60 Hz or 110V/50 Hz coil voltage, 270A, Three-pole, Size 5
Specifications
Type
Full Voltage- Non-Reversing
Power Rating/Voltage
75 HP at 208 Volt- 100 HP at 240 Volt- 150 HP at 380 Volt- 200 HP at 480/600 Volt 3-Phase
Current Rating
270 Amp
Phase
3
Coil Voltage
110 Volt AC at 50 Hertz- 120 Volt AC at 60 Hertz
Auxiliary Contact
1NO
Size
NEMA 5
Enclosure Type
Open
Overloads
Bi-Metallic Ambient Compensated Overload Relay
Construction Standard
NEMA
Model
Freedom- AN16
Additional Information
Number of Poles 3- Mounting Type Horizontal- Approval UL- CSA
Features/Benefits
Horizontal or Vertical Mounting on Upright Panel for Application Freedom- Screw Type Power Terminals have Captive- Backed-Out Self-Lifting Pressure Plates with Screws—Reduced Wiring Time- Accessible Terminals for Easy Wiring. Optional Fingerproof Shields Available to Prevent Electrical Shock- Top Located Coil Terminals Convenient and Readily Accessible. 45 MM Contactor Magnet Coils have Three Terminals- Permitting Either Top or Diagonal Wiring—Easy to Replace European or U.S. Style Starters or Contactors without Changing Wiring Layout- Easy Coil Change and Inspectable/Replaceable Contacts
