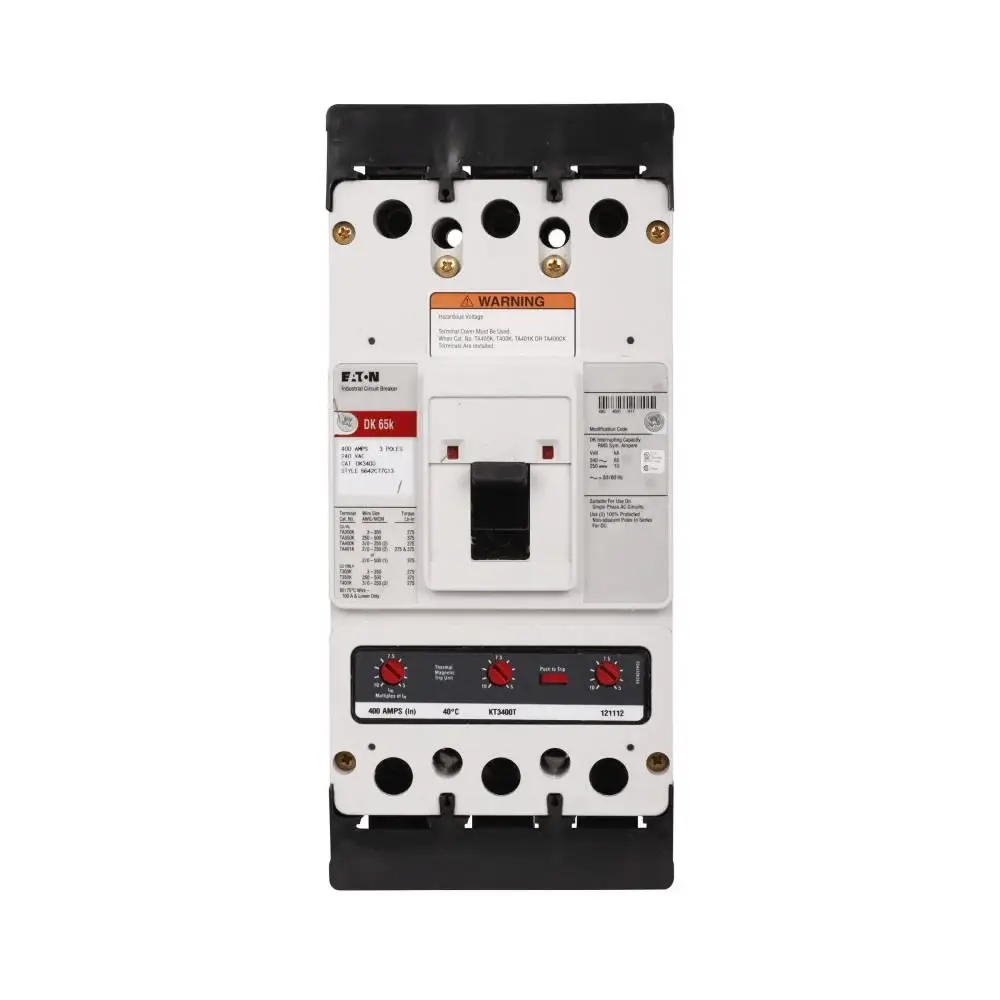

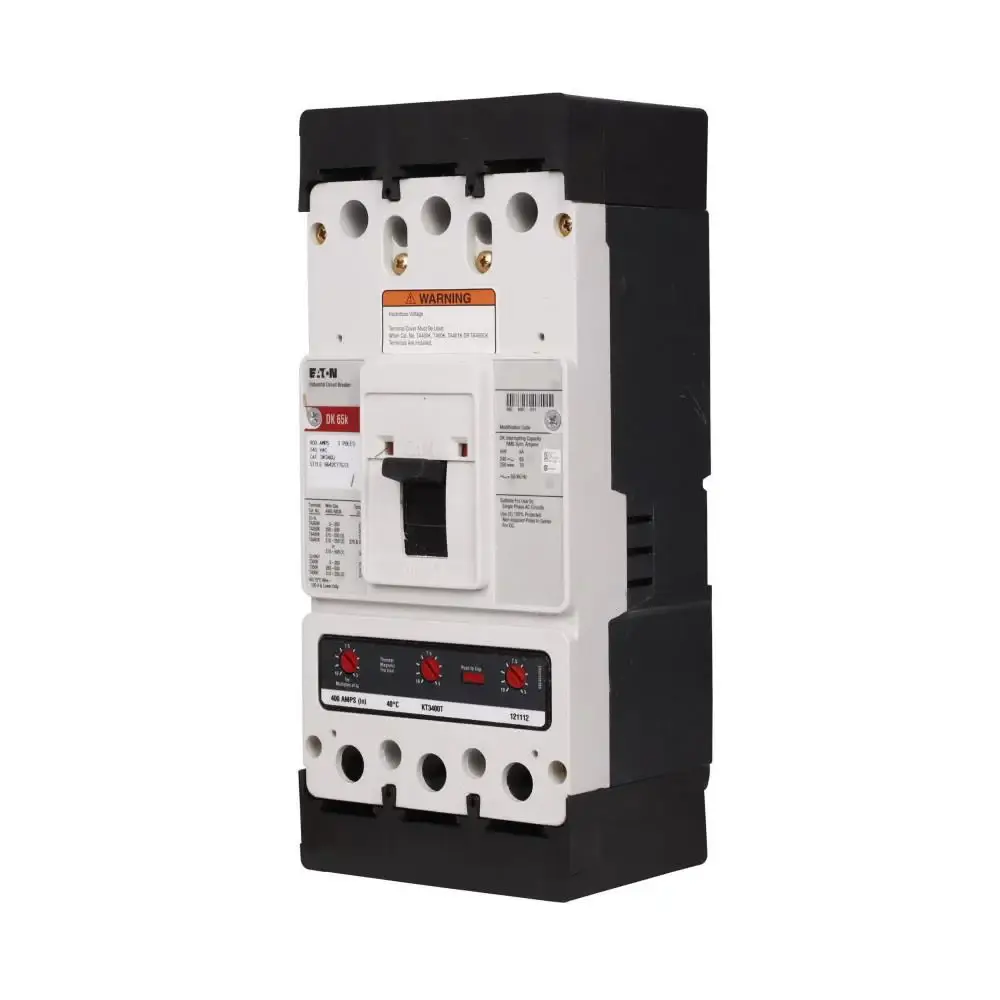

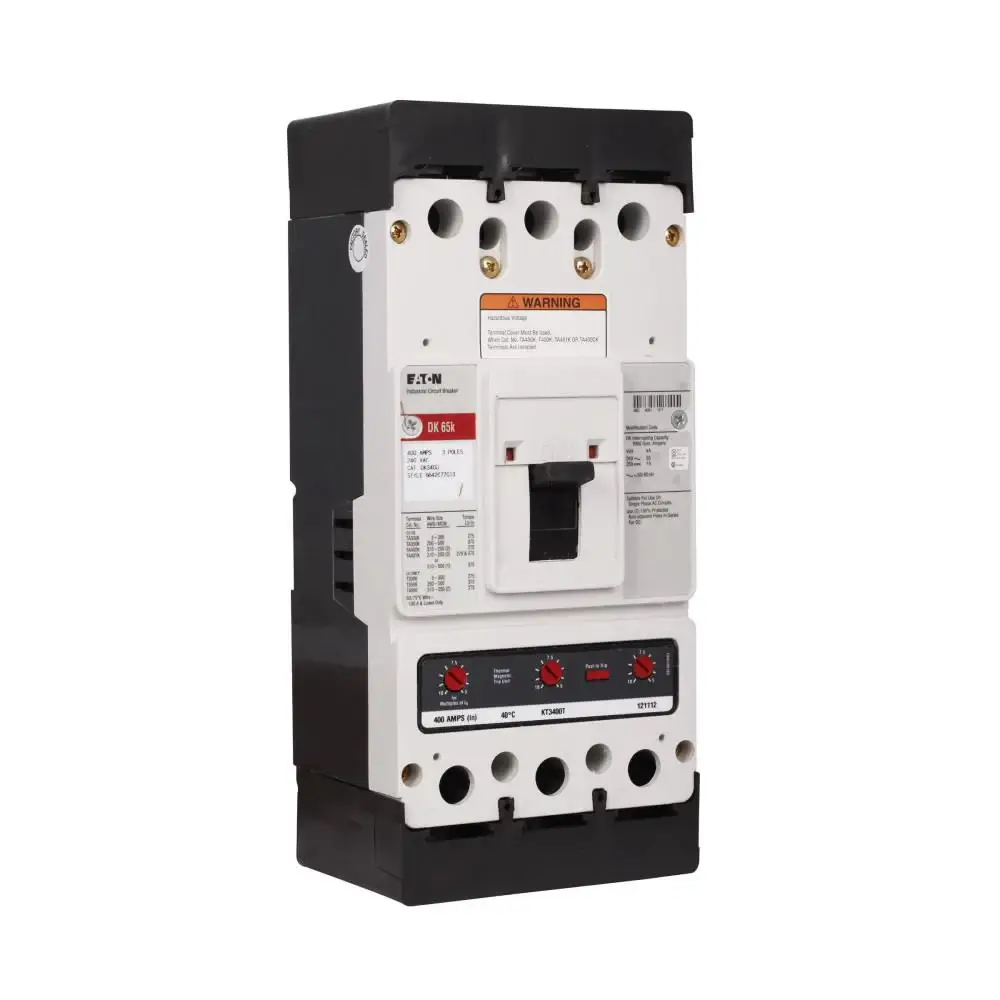

DK3300 – Eaton – Molded Case Circuit Breaker Feed-Thru – 300 Amp – 3 Pole – 240 Volt

SKU: DK3300 Categories: , ,



Eaton / Cutler-Hammer Molded Case Circuit Breaker Its Compact And Easy to Install Series C three poles molded case circuit breaker has a DK-frame it has a current rating of 300 amps at 40 deg c it has a voltage rating of 250 Vdc and 240 Vac at a frequency of 50/60 Hz it has an interrupt current rating of 65 kilo-amps at 240 Vac/10 kilo-amps at 250 Vdc it is ideal for switchboard panel board motor control center and applications for dependable branch circuit protection a circuit breaker is UL and Csa certified.


Type Molded Case- Thermal Magnetic
Frame Type DK
Voltage Rating 240 VAC at 50/60 Hz- 250 VDC
Maximum AC Voltage Rating 240
Maximum DC Voltage Rating 250
Current Rating 300 Ampere at 40 Deg C
Number of Poles 3
Interrupting Rating 65 Kiloampere at 240 VAC- 10 Kiloampere at 250 VDC
Terminal Type Aluminum/Copper Standard Pressure Line and Load Terminal
Size 5.5 Inch W x 4.1 Inch D x 10.13 Inch H
Approval UL
Model C
Additional Information Includes Line and Load Terminal- Non-Interchangeable Trip Unit- Applicable Standard NEMA AB1- AS 2184- BS 4752- IEC 157-1- SABS 156- SEV 157-1- VDE 0660
Features/Benefits All Eaton K-frame Circuit Breakers are HACK Rated- K-Frame Circuit Breakers with Non-interchangeable Trip Units are Suitable for Reverse Feed Use
