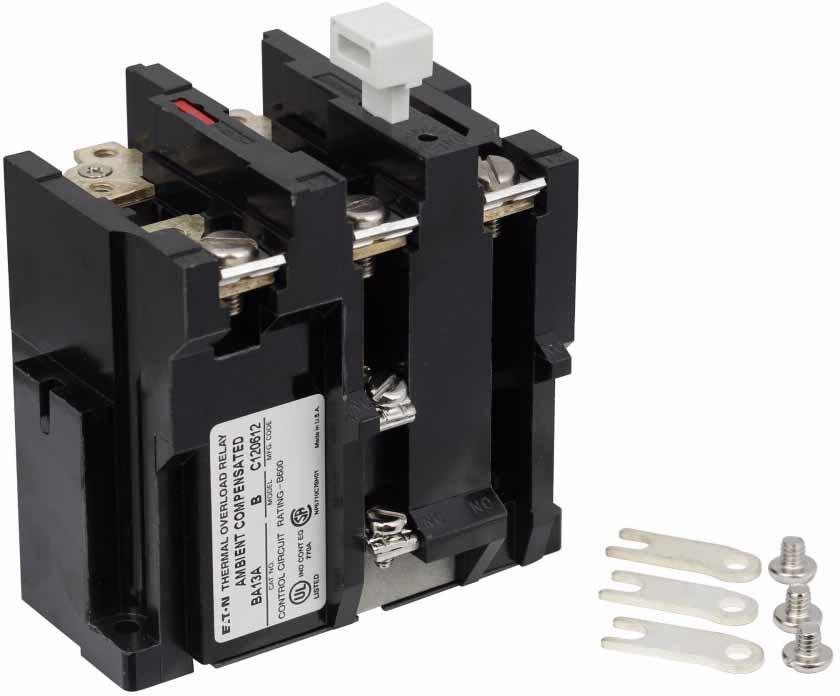

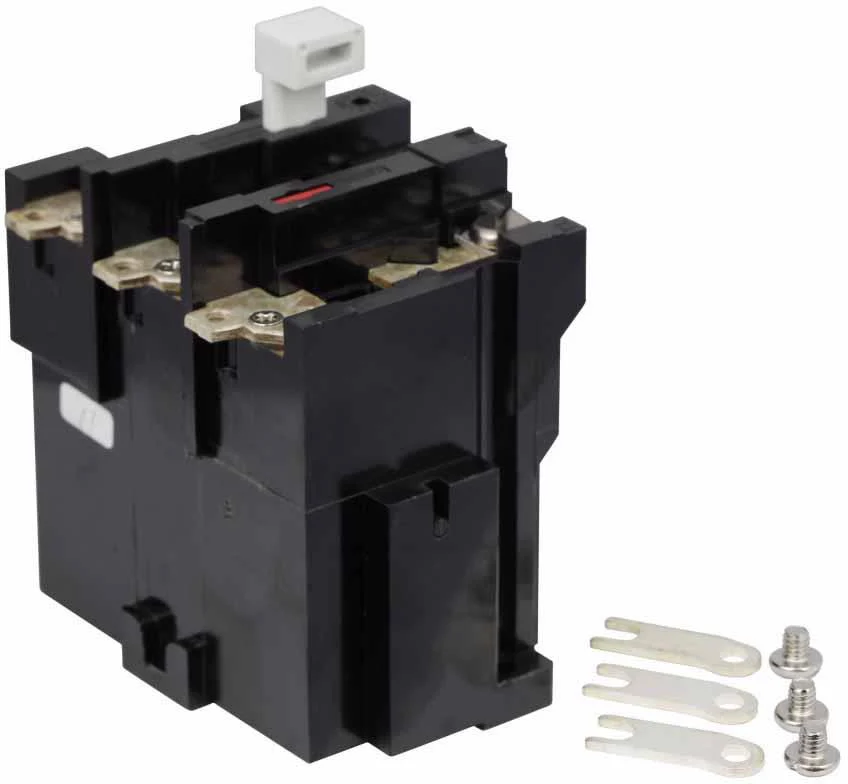

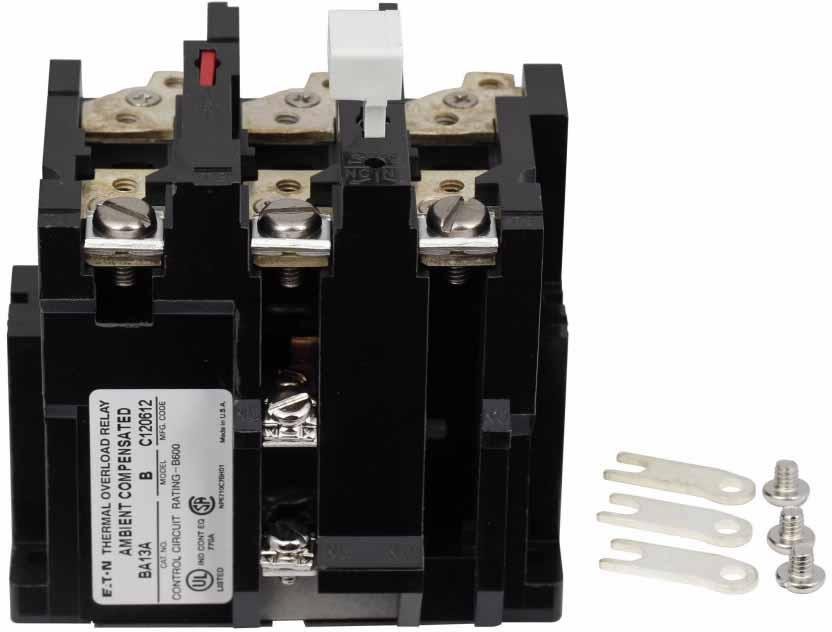

FavoriteBA13A – Cutler Hammer Overload Relay Amp Min 0.25A – Amp Max 26.2A
$165.99
Description
BI-METALLIC THERMAL TYPE 24 TO 600 VOLT AC CONTACT RATING UL CSA APPROVAL 3-PHASE APPLICATION STARTER MOUNTING 3 POLE(S) 1NC AUXILIARY CONTACT 5 NEMA SIZE 0.25 TO 26.2 AMP MOTOR FLA AUTOMATIC/MANUAL RESET TYPE COMPENSATED AMBIENT TEMPERATURE CLASS 20 TRIP CLASS CONTACT TYPE ALARM FORM C BA MODEL
Specifications
| Type | Bi-Metallic- Thermal |
| Motor FLA | 0.25 to 26.2 Amp |
| Number of Poles | 3 |
| Trip Class | Class 20 |
| NEMA Size | 5 |
| Reset Type | Automatic/Manual |
| Ambient Temperature | Compensated |
| Auxiliary Contact | 1NC |
| Contact Rating | 24 to 600 Volt AC |
| Mounting | Starter |
| Application | 3-Phase |
| Approval | UL- CSA |
| Model | BA |
| Additional Information | Contact Type Alarm Form C |
Additional information
| Weight | 2 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
