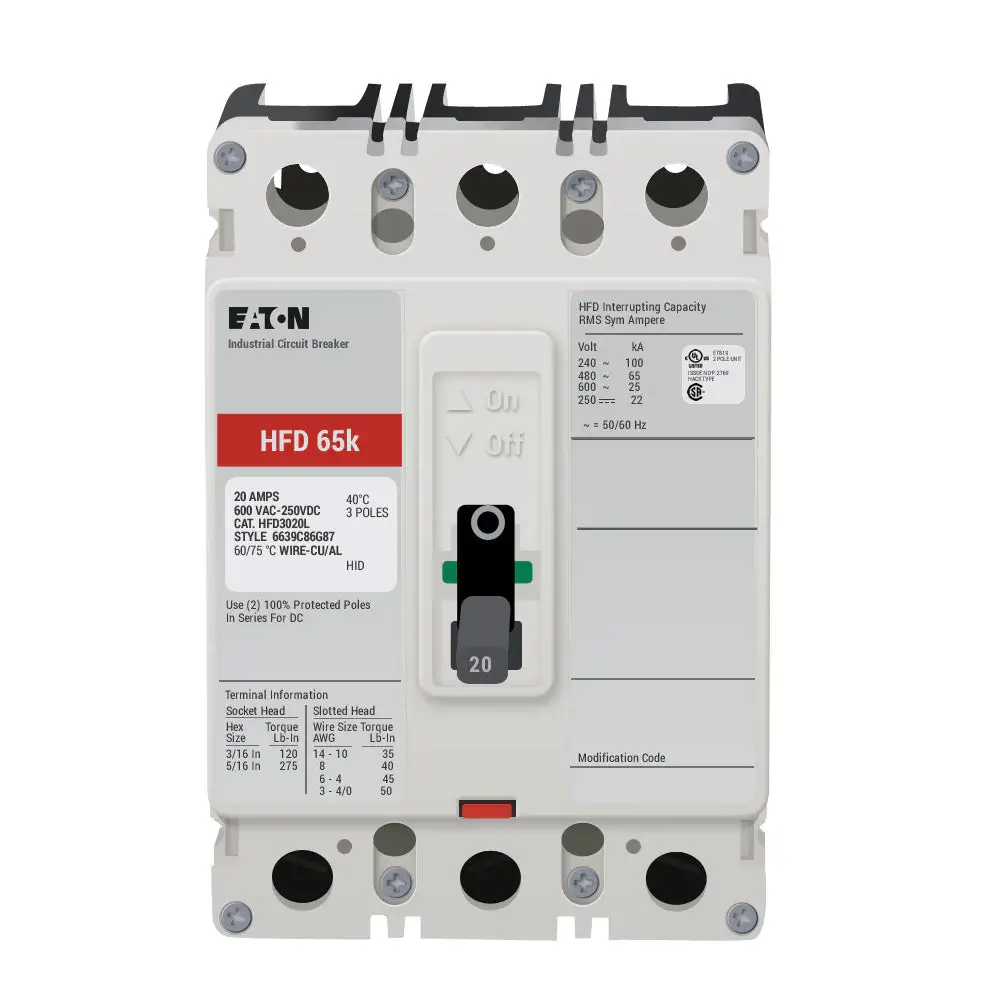

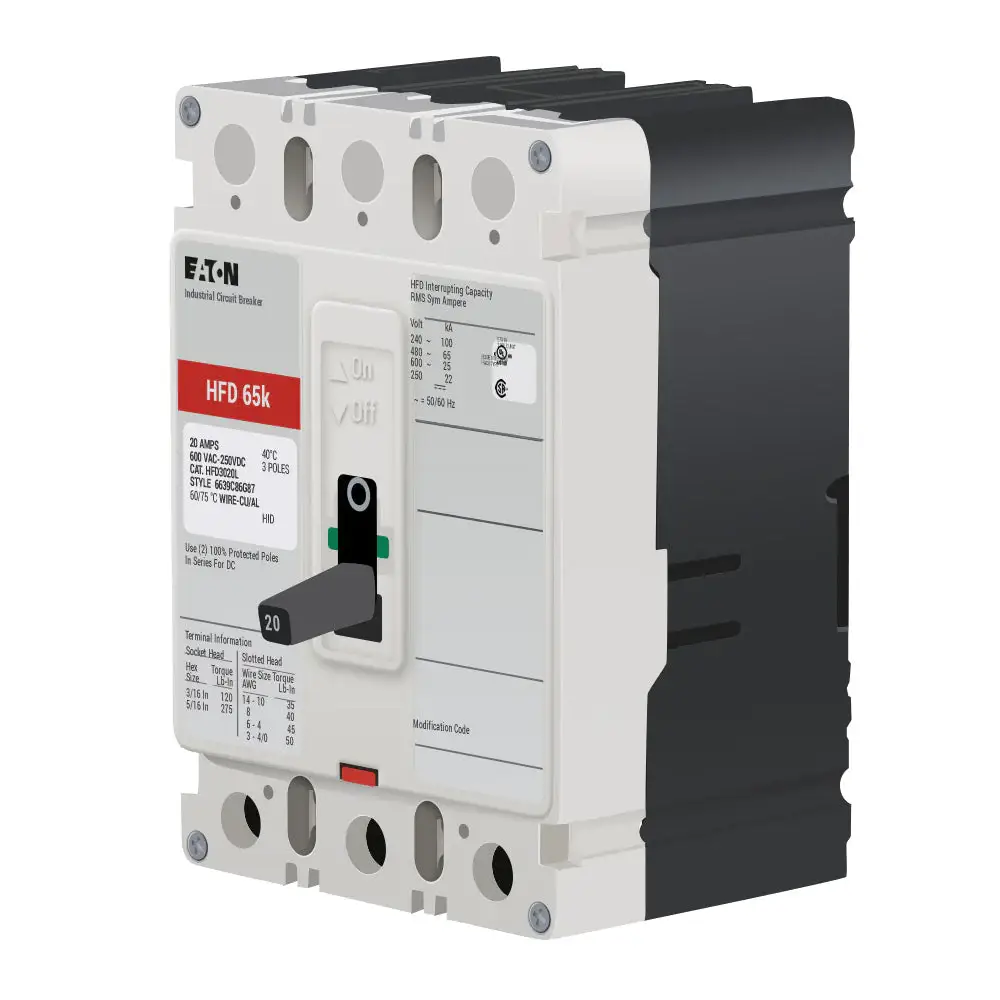

HFD3020 – Eaton – Molded Case Circuit Breaker Feed Thru – 20 Amp – 3 Pole – 600 Volt

SKU: HFD3020 Categories: ,

$654.99

Description

The Eaton HFD3020 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 100kA at 240VAC, 65kA at 480VAC, 25kA at 600VAC, 22kA at 250VDC. The HFD3020 has a bolt-on connection type and includes LI – long time and instantaneous functions.

Specifications

Type Molded Case- Thermal Magnetic
Frame Type FD
Voltage Rating 600 Volt AC at 50/60 Hertz- 250 Volt DC
Maximum AC Voltage Rating 600 Volt
Maximum DC Voltage Rating 250 Volt
Current Rating 20 Amp at 40 Deg C
Number of Poles 3
Interrupting Rating 100 Kiloamp at 240 Volt AC at 50/60 Hertz- 65 Kiloamp at 480 Volt AC at 50/60 Hertz- 25 Kiloamp at 600 Volt DC- 22 Kiloamp at 250 Volt DC
Terminal Type Standard Pressure Load
Size 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
Approval UL 489- CSA C22.2
Model C- HFD
Additional Information Includes Load Terminal- Applicable Standard NEMA AB1- AS 2184- BS 4752- IEC 157-1- SABS 156- SEV 157-1- VDE 0660
Features/Benefits All Eaton’s F-Frame Circuit Breakers are HACR Rated- All Circuit Breakers 10 Through 30 Amperes are Suitable for HID (High Intensity Discharge) Use- All F-Frame Circuit Breakers are Suitable for Reverse Feed Use
