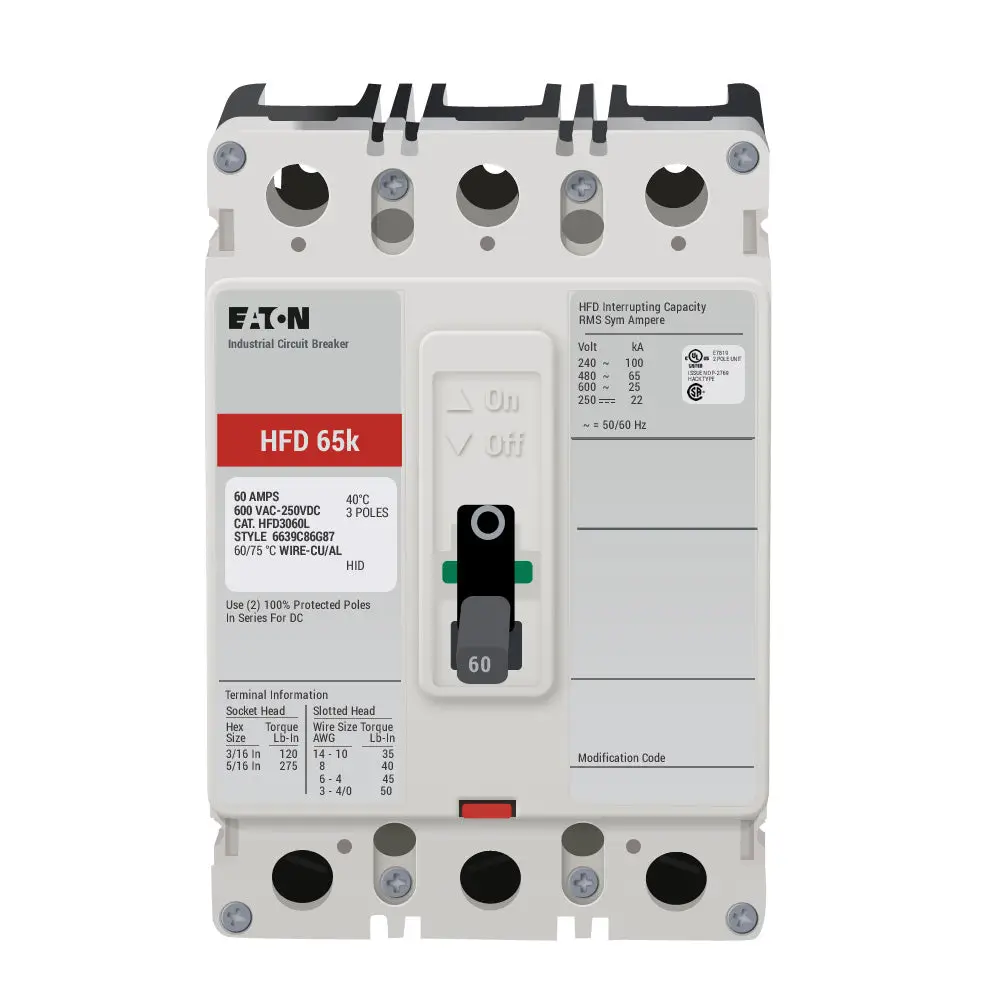

HFD3060 – Eaton – Molded Case Circuit Breaker Feed Thru – 60 Amp – 3 Pole – 600 Volt

SKU: HFD3060 Categories: ,



The Eaton HFD3060 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 100kAIC at 240VAC, 22kAIC at 250VAC. The HFD3060 has a bolt-on connection type and includes long time and instantaneous trip functions.


Type Molded Case- Thermal Magnetic
Frame Type FD
Voltage Rating 600 Volt AC at 50/60 Hertz- 250 Volt DC
Maximum AC Voltage Rating 600 Volt
Maximum DC Voltage Rating 250 Volt
Current Rating 60 Amp at 40 Deg C
Number of Poles 3
Interrupting Rating 100 Kiloamp at 240 Volt AC at 50/60 Hertz- 65 Kiloamp at 480 Volt AC at 50/60 Hertz- 25 Kiloamp at 600 Volt DC- 22 Kiloamp at 250 Volt DC
Terminal Type Standard Pressure Load
Size 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
Approval UL 489- CSA C22.2
Model C- HFD
Additional Information Includes Load Terminal- Applicable Standard NEMA AB1- AS 2184- BS 4752- IEC 157-1- SABS 156- SEV 157-1- VDE 0660
Features/Benefits All Eaton’s F-Frame Circuit Breakers are HACR Rated- All F-Frame Circuit Breakers are Suitable for Reverse Feed Use
