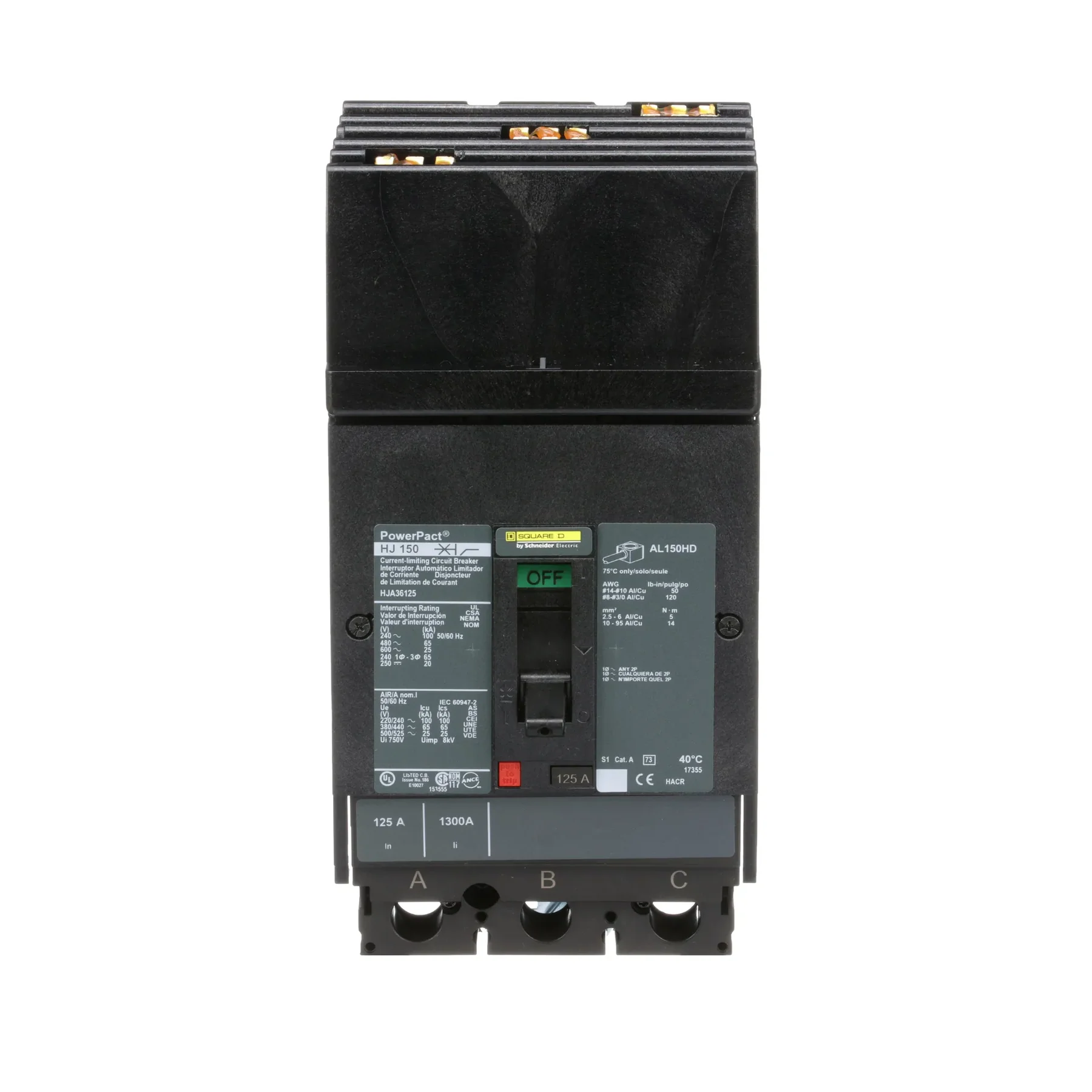

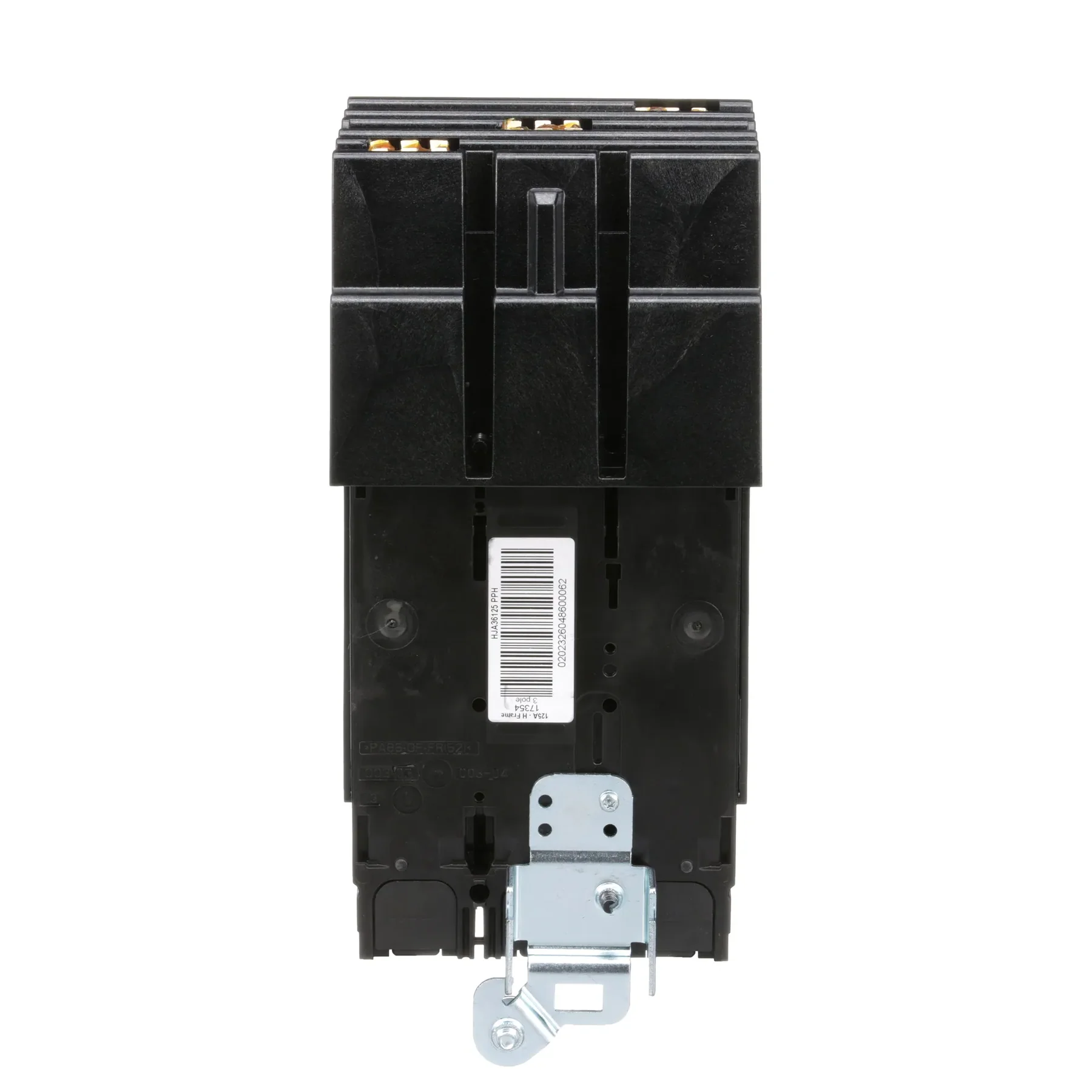

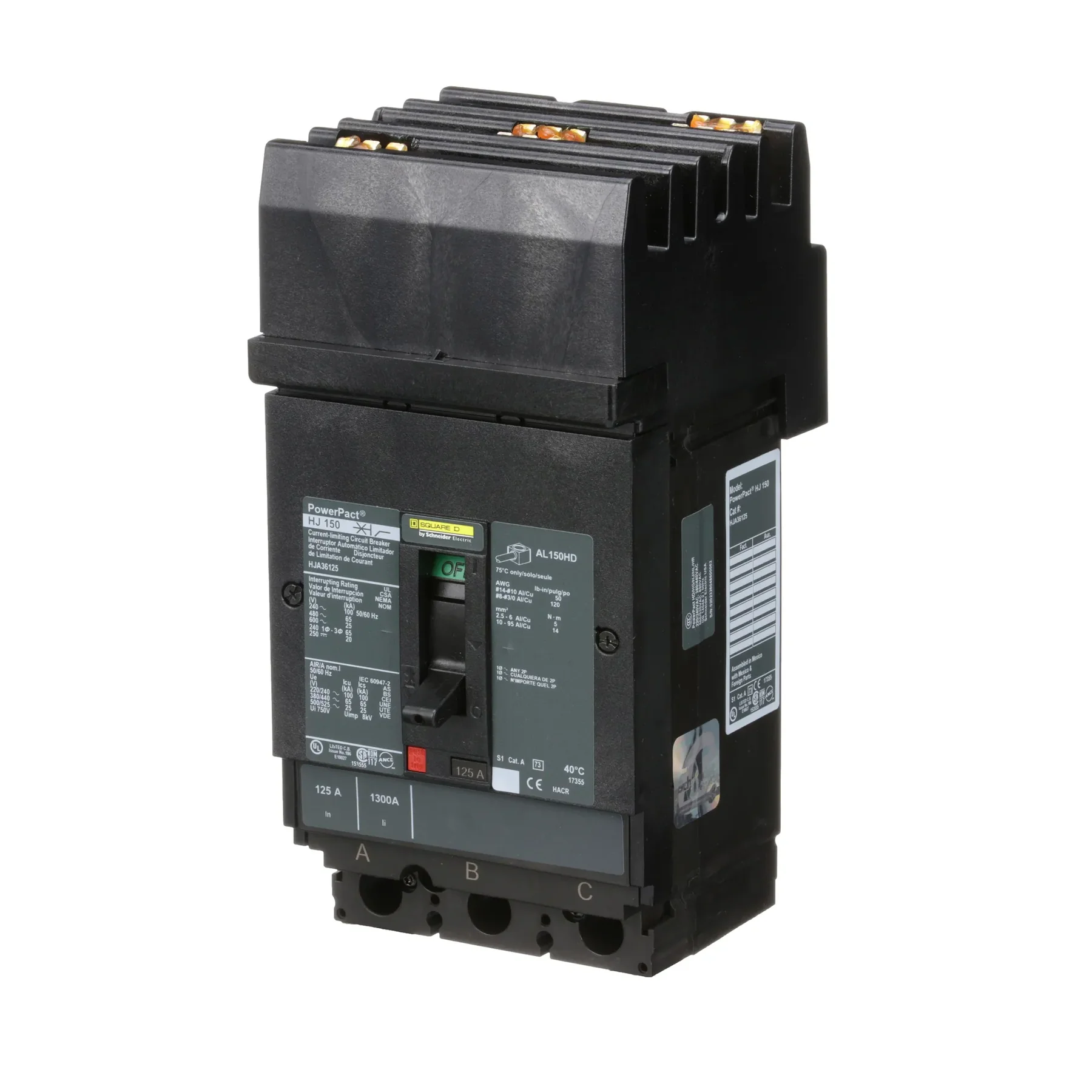

HJA36125 – Square D – Molded Case Circuit Breaker I-Line Plug-In – 125 Amp – 3 Pole – 600 Volt

SKU: HJA36125 Categories: ,

$1,199.99

Description

HJA36125 is a 3 pole 100 ampere thermal magnetic molded case circuit breaker with maximum voltage rating of 240/415 vac at 50/60hz built in trip setting of 900 to 1700 ampere comes with 5 phase connections application mainly used for power distribution used on class 612 i-line panelboard/switchboard.

Specifications

Type Thermal Magnetic- Current Limiting
Voltage Rating 600 Volt AC 50/60 Hertz- 250 Volt DC
Current Rating 125 Amp
Number of Poles 3
Interrupting Rating 25 Kiloamp at 600 Volt AC- 20 Kiloamp at 250 Volt DC
Trip Setting 900 Amp (Hold)- 1700 Amp (Trip)
Application Distribution
Used On Class 611/612 I-Line Panelboard and Switchboard
Approval UL- CSA- CE
Brand Name PowerPact™
Model HJ
Additional Information RoHS/REACH Compliant- Overall Dimension 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height- Frame Type H- Terminal Type I-Line Connection Line Lug Load- Control Type Toggle- Terminal Wire Size 14 to 3/0 AWG (Copper/Aluminum)- Continuous Current Rating 80 Percent- Phase Connection Type ABC- Operation Ambient Air Temperature Rating 28 to 158 Deg F- Applicable Standard IEC
Features/Benefits The Powerpact H-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits- H-Frame Circuit Breakers are Either Thermal-magnetic or Micrologic Electronic Trip Units- All Powerpact H-Frame Circuit Breakers are Equipped with Dual-Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product
