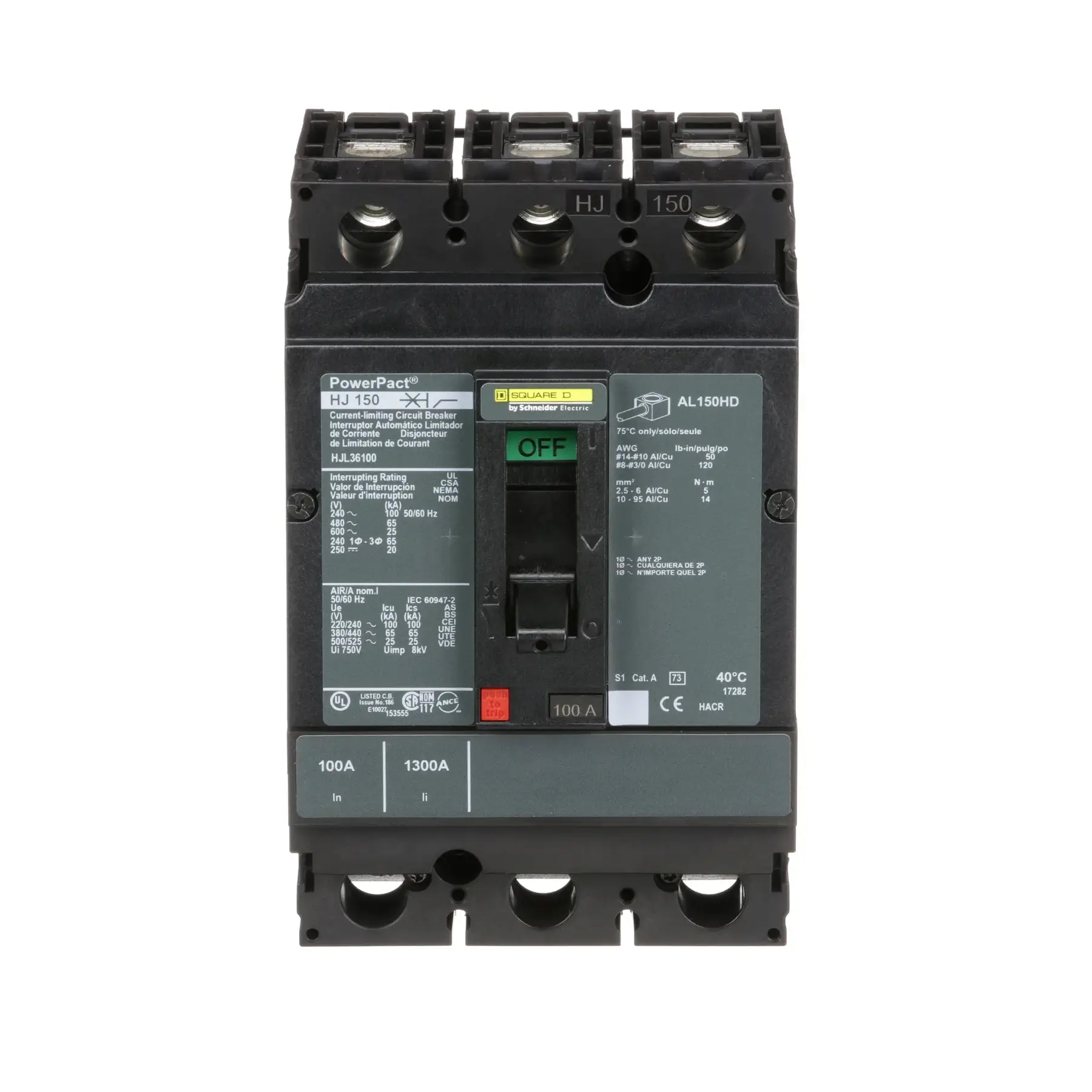

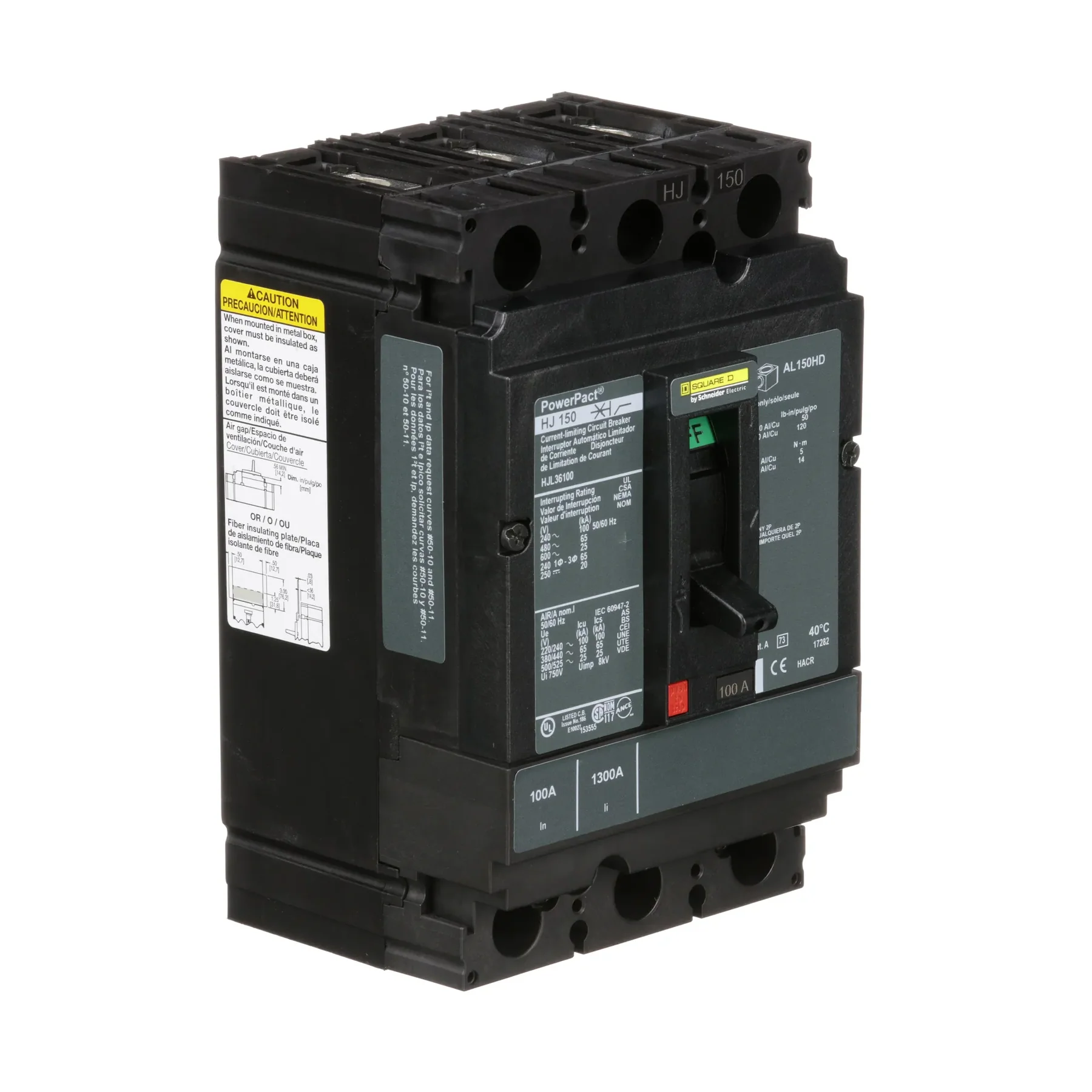

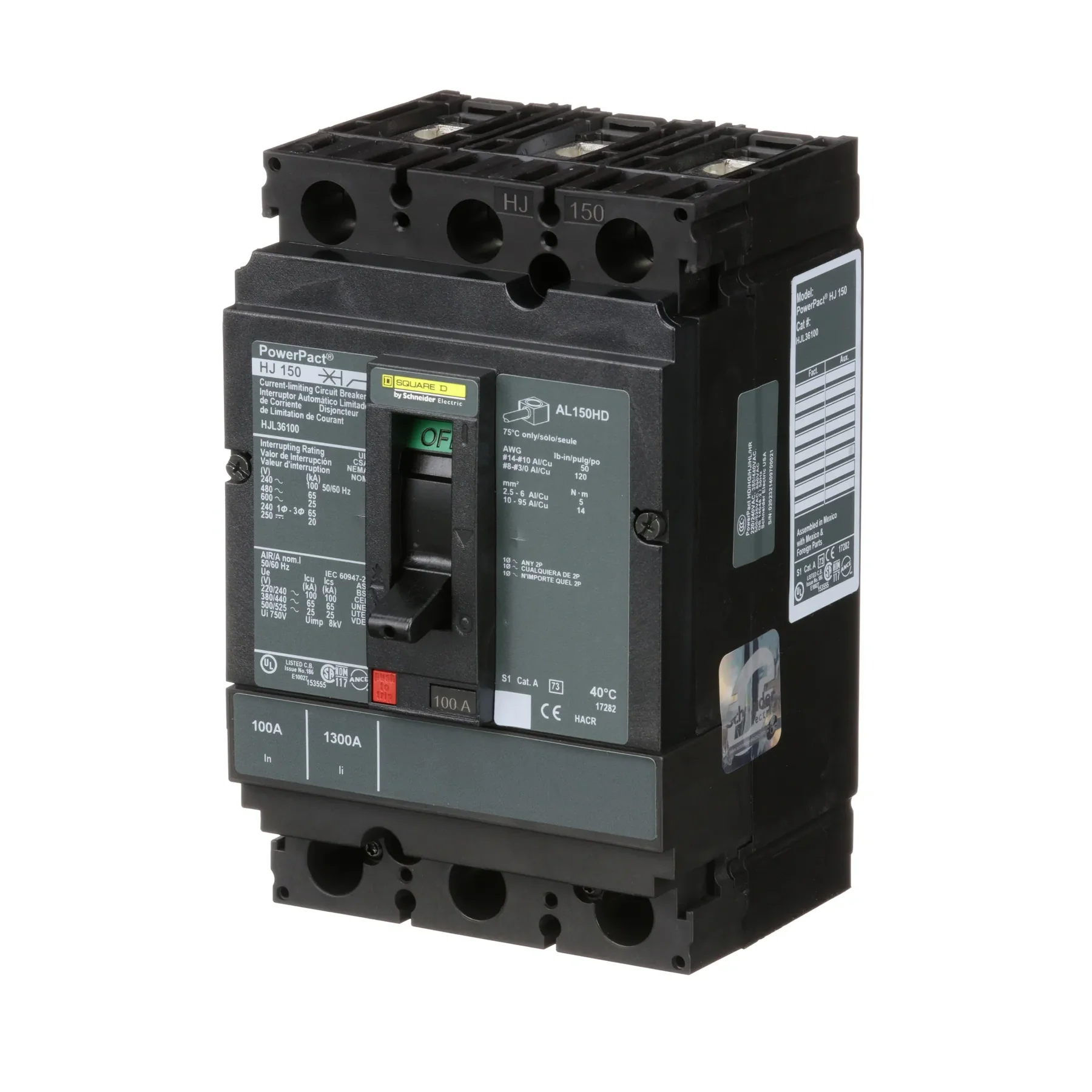

HJL36100 – Square D – Molded Case Circuit Breaker Feed-Thru – 100 Amp – 3 Pole – 600 Volt

SKU: HJL36100 Categories: ,

$934.99

Description

THERMAL MAGNETIC CURRENT LIMITING TYPE 4.09 INCH WIDTH X 3.39 INCH DEPTH X 6.42 INCH HEIGHT SIZE 600 VOLT MAX. AC VOLTAGE RATING 250 VOLT MAX. DC VOLTAGE RATING UL CSA CE APPROVAL 600 VOLT AC 50/60 HERTZ 250 VOLT DC VOLTAGE RATING 25 KILOAMP AT 600 VOLT AC 20 KILOAMP AT 250 VOLT DC INTERRUPTING RATING 100 AMP CURRENT RATING 3 POLE(S) LINE/LOAD LUG TERMINAL TYPE H FRAME TYPE POWERPACT[TM] BRAND ROHS/REACH COMPLIANT TRIP SETTING 800 AMP (HOLD) 1700 AMP (TRIP) MOUNTING TYPE UNIT CONTROL TYPE TOGGLE TERMINAL WIRE SIZE 14 TO 3/0 AWG (COPPER/ALUMINUM) CONTINUOUS CURRENT RATING 80 PERCENT OPERATION AMBIENT AIR TEMPERATURE RATING 28 TO 158 DEG F APPLICATION DISTRIBUTION APPLICABLE STANDARD NOM 003 NEMA IEC 60947-2 HJ MODEL

Specifications

Type Thermal Magnetic- Current Limiting
Frame Type H
Voltage Rating 600 Volt AC 50/60 Hertz- 250 Volt DC
Maximum AC Voltage Rating 600 Volt
Maximum DC Voltage Rating 250 Volt
Current Rating 100 Amp
Number of Poles 3
Interrupting Rating 25 Kiloamp at 600 Volt AC- 20 Kiloamp at 250 Volt DC
Terminal Type Line/Load Lug

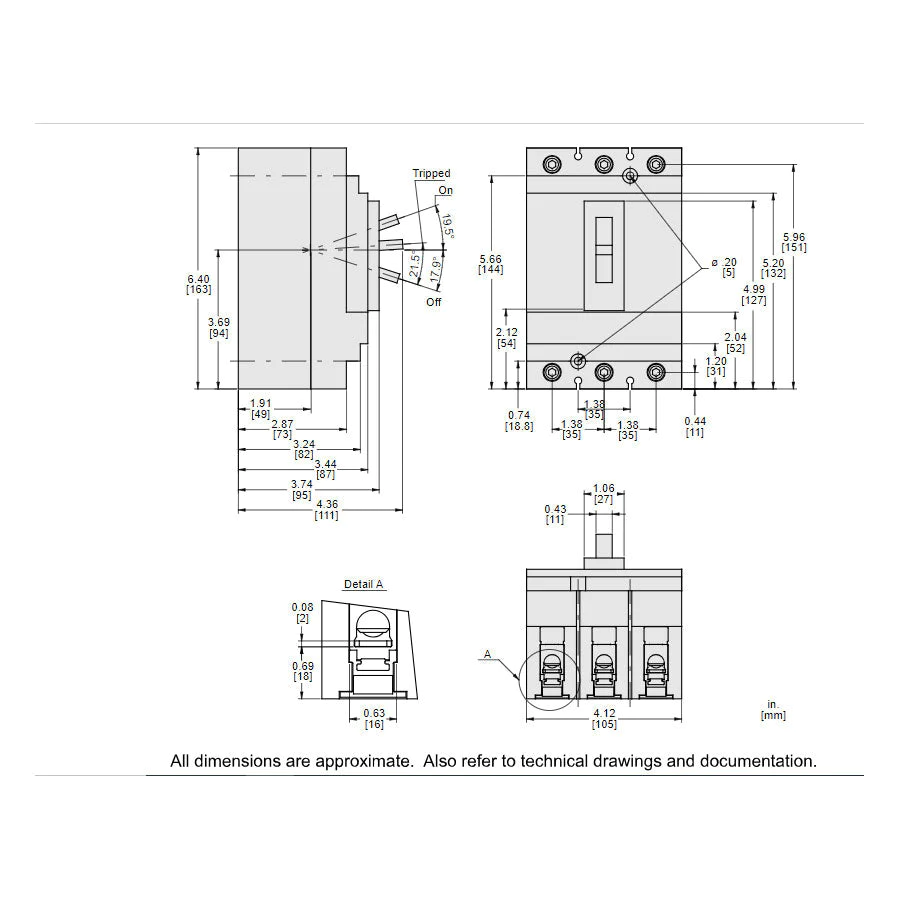

Size 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
Approval UL- CSA- CE
Brand Name PowerPact™
Model HJ
Additional Information RoHS/REACH Compliant- Trip Setting 800 Amp (Hold)- 1700 Amp (Trip)- Mounting Type Unit- Control Type Toggle- Terminal Wire Size 14 to 3/0 AWG (Copper/Aluminum)- Continuous Current Rating 80 Percent- Operation Ambient Air Temperature Rating 28 to 158 Deg F- Application Distribution- Applicable Standard NOM 003- NEMA- IEC 60947-2
Features/Benefits Powerpact H-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits- Powerpact H-Frame Circuit Breakers are Available with Either Thermal Magnetic or Micrologic Electronic Trip Protection Units- This Powerpact H-Frame Circuit Breaker Provides Thermal Magnetic Circuit Protection with a Breaking Capacity of 25 Kiloamp at 600 Volt AC- All Powerpact H-Frame Circuit Breakers are Equipped with Dual Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product

Shipping information

Free Shipping Policy
Parcel shipments with item value over $200.00 qualify for free economy shipping within the continental US. Please indicate at checkout if USPS or UPS is a required shipment method. We do not charge a handling fee or require a minimum amount on any order. Breakers & Controls Florida does not ship on customer accounts.

Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances Breakers & Controls Florida may reserve up to 5 business days to consolidate orders for complete shipment.

Warranty information

At Breakers & Controls Florida, we stand behind the quality and reliability of our products. We understand that purchasing used and obsolete breakers and controls requires confidence in their performance. Therefore, we have established the following warranty policy to ensure your satisfaction:

  1. Limited Warranty: All used and obsolete breakers and controls purchased from [Company Name] are covered by a limited warranty. This warranty guarantees that the products will be free from defects in material and workmanship under normal use and service for a specified period from the date of purchase.
  2. Warranty Period: The warranty period for used and obsolete breakers and controls may vary depending on the specific product and its condition at the time of purchase. The warranty duration will be clearly stated on the product listing or accompanying documentation. Please review the product description or contact our customer support team for the warranty period applicable to your purchase.
  3. Warranty Coverage: Our warranty covers the repair or replacement of defective parts or products at our discretion. If a covered product is found to be defective within the warranty period, we will either repair the product, replace it with an equivalent item, or provide a refund, depending on the availability of the specific product and the customer’s preference.

Additional information

Weight 4 lbs
Condition

New
