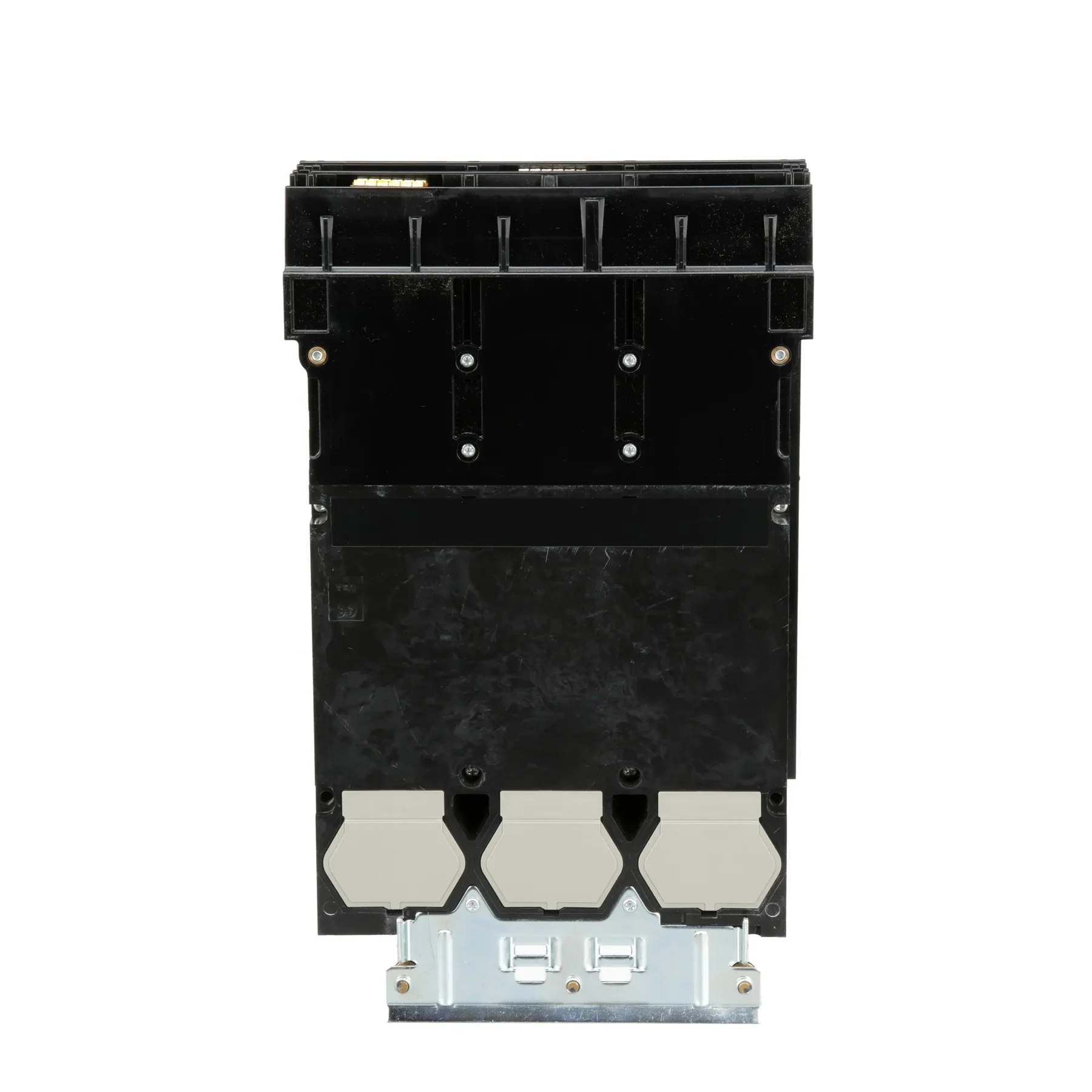

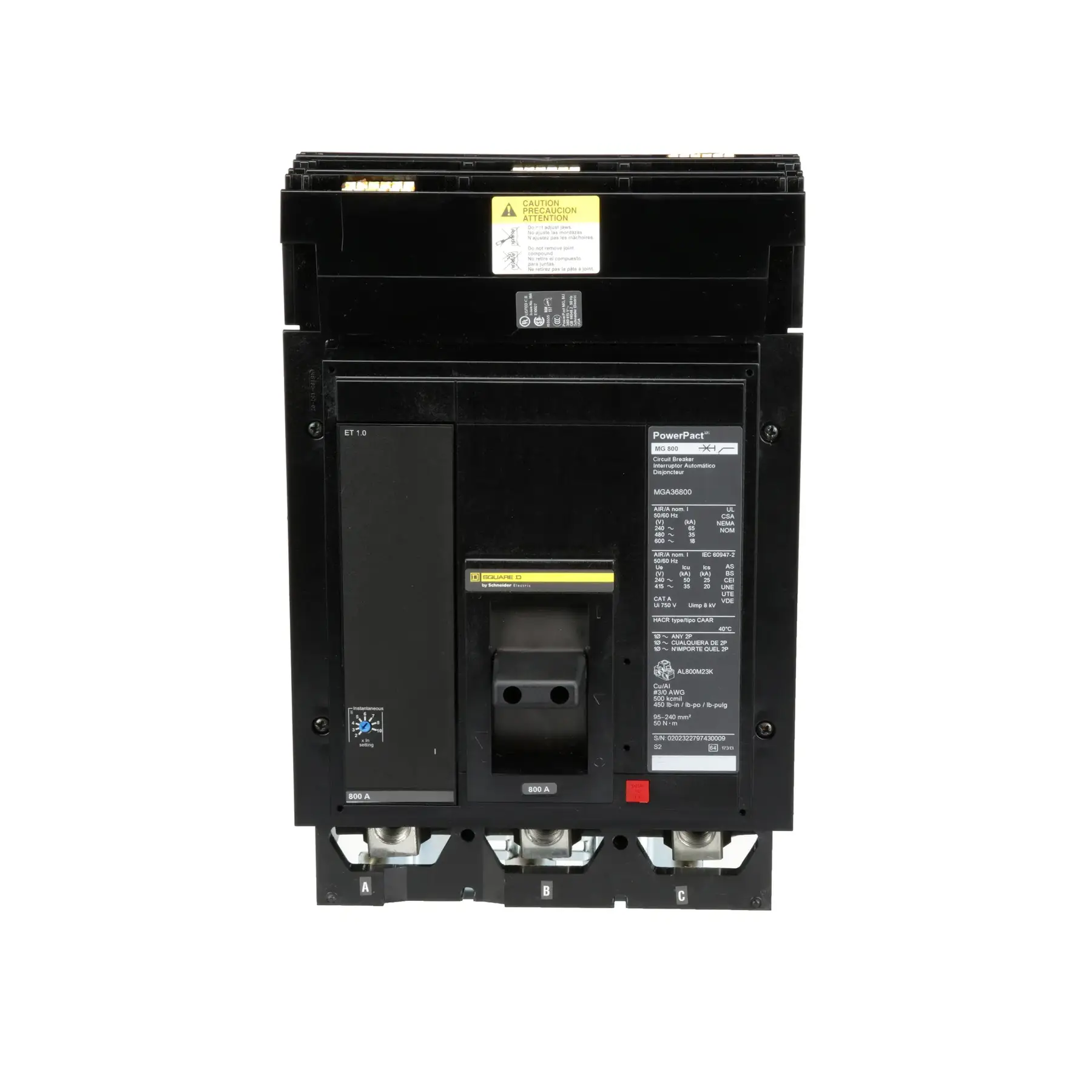

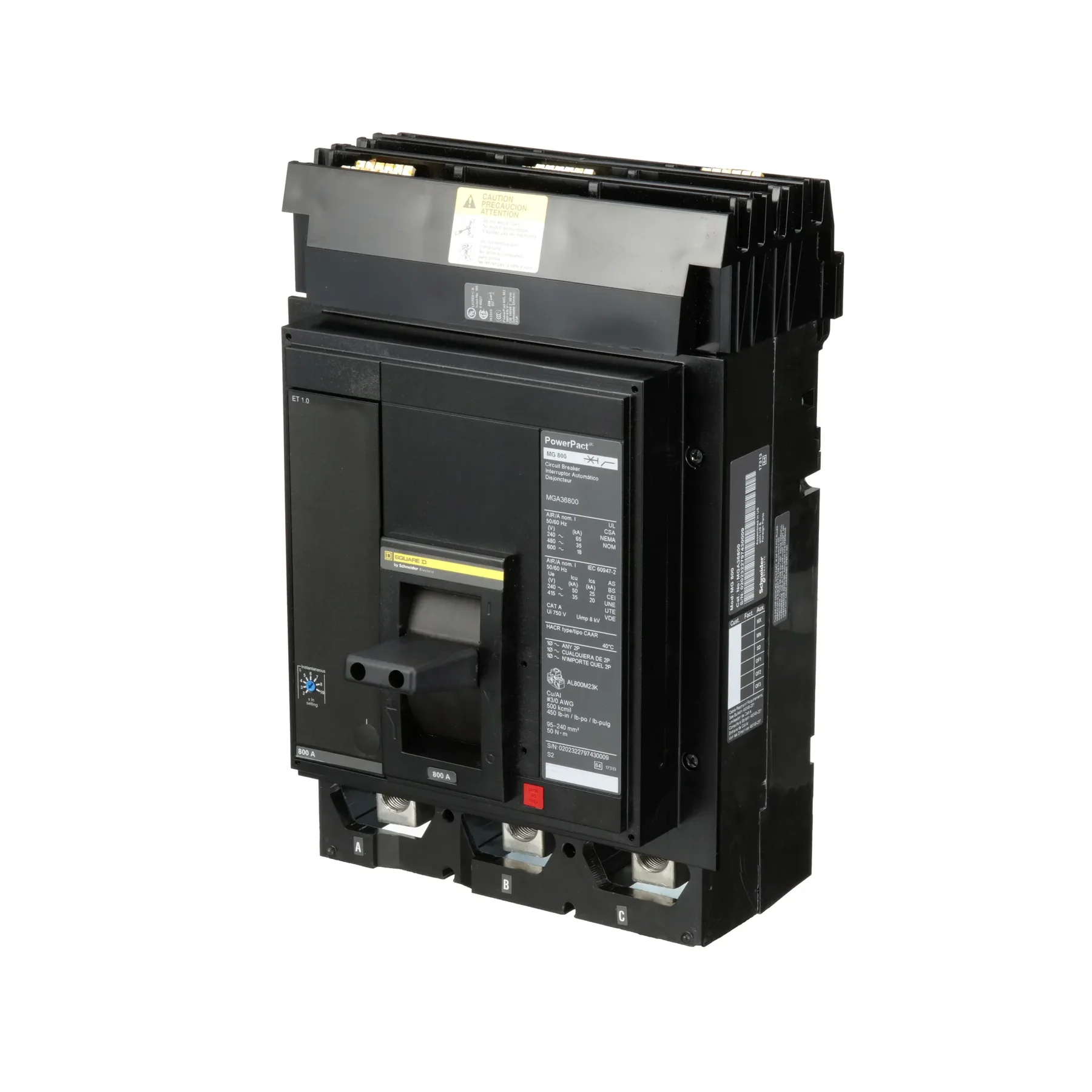

MGA36800 – Square D – Molded Case Circuit Breaker I-Line Plug-In – 800 Amp – 3 Pole – 600 Volt

SKU: MGA36800 Categories: ,

$2,999.99

Description

The Square D MGA36800 is a 3 Pole molded case circuit breaker with a current rating of 800 Amps and a voltage rating of 415VAC, 240VDC. It has an interrupting rating of 65kA at 240VAC, 35kA at 277/480VAC, 18kA at 347/600VAC. The MGA36800 features with M frame type and it is used for power distribution application.

Specifications

Type Thermal Magnetic- Basic Electronic ET 1.0
Voltage Rating 600 Volt AC 50/60 Hertz
Current Rating 800 Amp
Number of Poles 3
Interrupting Rating 65 Kiloamp at 240 Volt AC- 35 Kiloamp at 480 Volt AC- 18 Kiloamp at 600 Volt AC
Trip Setting 1600 to 8000 Amp
Application Power Distribution
Used On I-Line Panelboard And Switchboard
Approval UL- CSA
Brand Name PowerPact™
Model MG

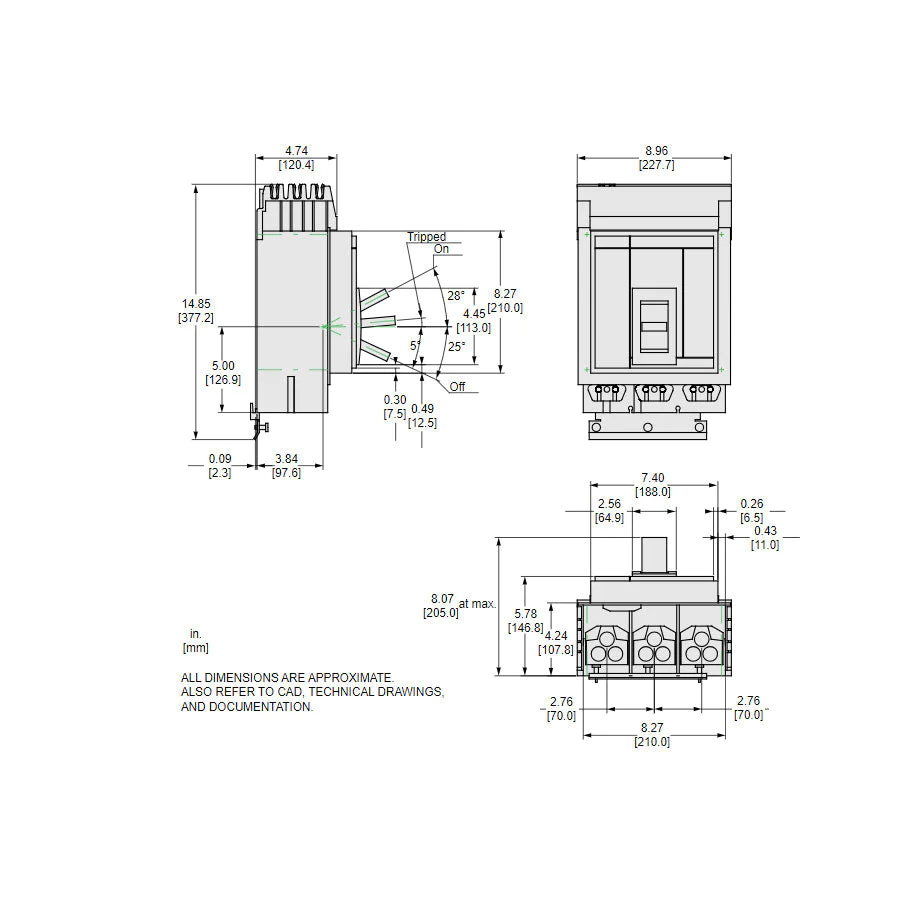

Additional Information RoHS/REACH Compliant- Overall Dimension 8.27 Inch Width x 8.05 Inch Depth x 12.86 Inch Height- Frame Type M- Terminal Type I-Line Connection Line Lug Load- Control Type Operating Handle- Terminal Wire Size (3) 3/0 AWG to 500 KCMIL (Copper/Aluminum)- Continuous Current Rating 80 Percent- Phase Connection Type ABC- Operation Ambient Air Temperature Rating -13 to 158 Deg F- Applicable Standard NOM- IEC
Features/Benefits Returnable- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product- Made in USA

Shipping information

Free Shipping Policy
Parcel shipments with item value over $200.00 qualify for free economy shipping within the continental US. Please indicate at checkout if USPS or UPS is a required shipment method. We do not charge a handling fee or require a minimum amount on any order. Breakers & Controls Florida does not ship on customer accounts.

Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances Breakers & Controls Florida may reserve up to 5 business days to consolidate orders for complete shipment.

Warranty information

At Breakers & Controls Florida, we stand behind the quality and reliability of our products. We understand that purchasing used and obsolete breakers and controls requires confidence in their performance. Therefore, we have established the following warranty policy to ensure your satisfaction:

  1. Limited Warranty: All used and obsolete breakers and controls purchased from [Company Name] are covered by a limited warranty. This warranty guarantees that the products will be free from defects in material and workmanship under normal use and service for a specified period from the date of purchase.
  2. Warranty Period: The warranty period for used and obsolete breakers and controls may vary depending on the specific product and its condition at the time of purchase. The warranty duration will be clearly stated on the product listing or accompanying documentation. Please review the product description or contact our customer support team for the warranty period applicable to your purchase.
  3. Warranty Coverage: Our warranty covers the repair or replacement of defective parts or products at our discretion. If a covered product is found to be defective within the warranty period, we will either repair the product, replace it with an equivalent item, or provide a refund, depending on the availability of the specific product and the customer’s preference.

Additional information

Weight 18 lbs
Condition

Used
