In stock

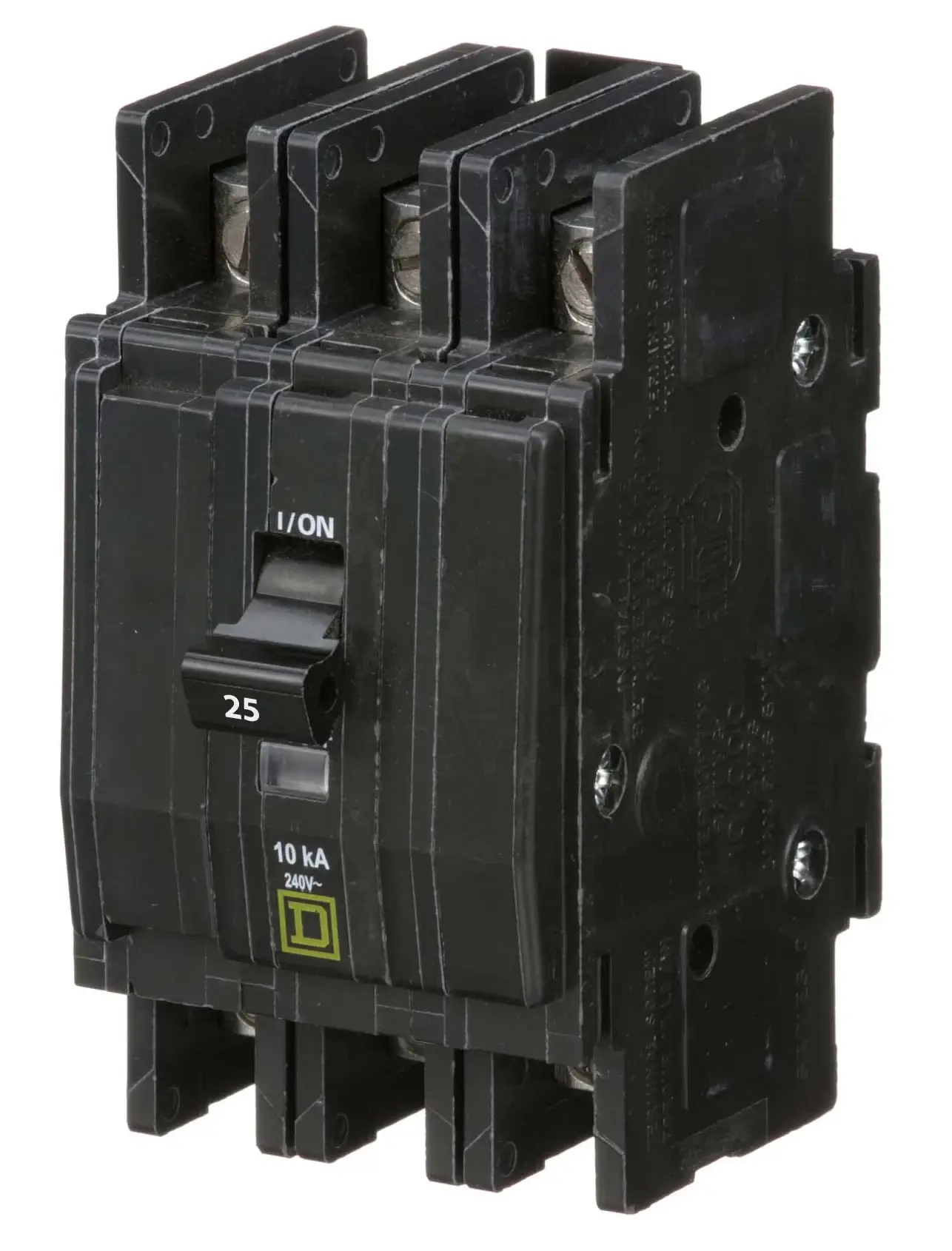

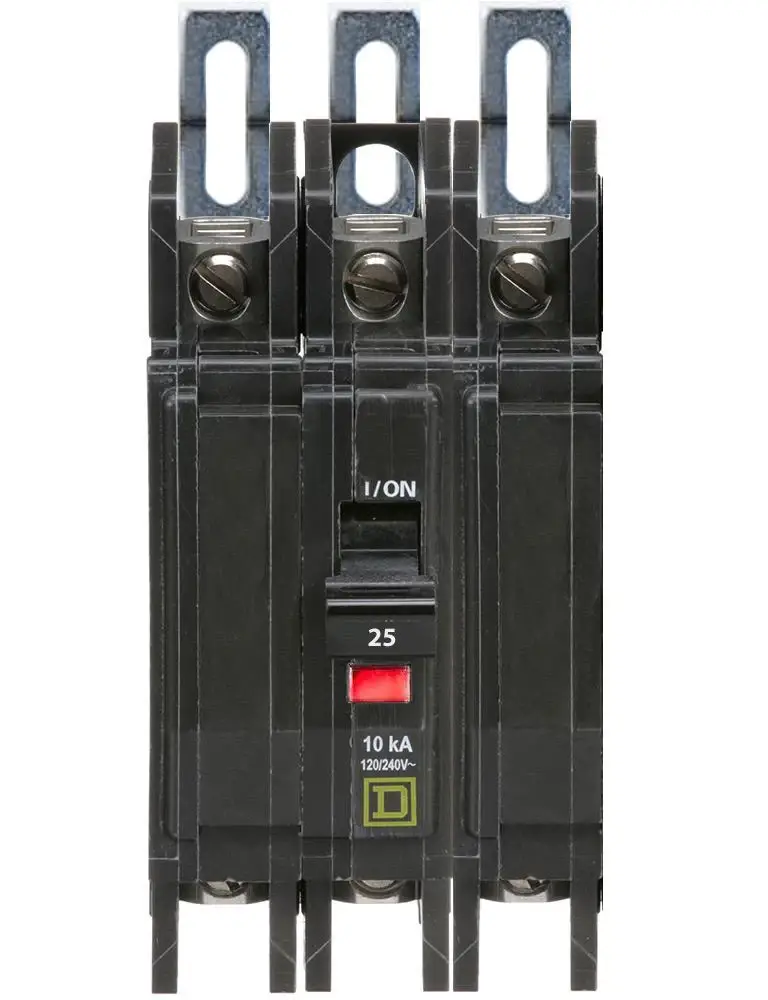

FavoriteQOU325 – Square D – 25 Amp Circuit Breaker Bolt-On – 25 Amp – 3 Pole – 240 Volt
$129.99
Description
Square D QOU series three pole 25 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 240V complete with (LI) long-time and instantaneous trip functions.
Specifications
| Type | Miniature- Standard |
| Number of Poles | 3 |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz- 48 Volt DC |
| Current Rating | 25 Amp |
| Interrupting Rating | 10 Kiloamp |
| Terminal Type | Slotted Box Lug Line/Load |
| Wire Size | 14 to 2 AWG (Copper/Aluminum) |
| Mounting | DIN Rail/Unit/Surface/Flush |
| Used On | OEM |
| Size | 2.25 Inch Width x 2.95 Inch Depth x 4.05 Inch Height |
| Approval | UL- CSA |
| Brand Name | QO™ |
| Model | QOU |
| Additional Information | RoHS/REACH Compliant- Tightening Torque Rating 45 Inch-Pound- Applicable Standard IEC |
| Features/Benefits | RoHS/REACH Compliant- Mercury-Free- Halogen-Free- Toxic Heavy Metal Free- HACR and Switching Duty Rated- Green Premium Product |
Additional information
| Weight | 2.5 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
