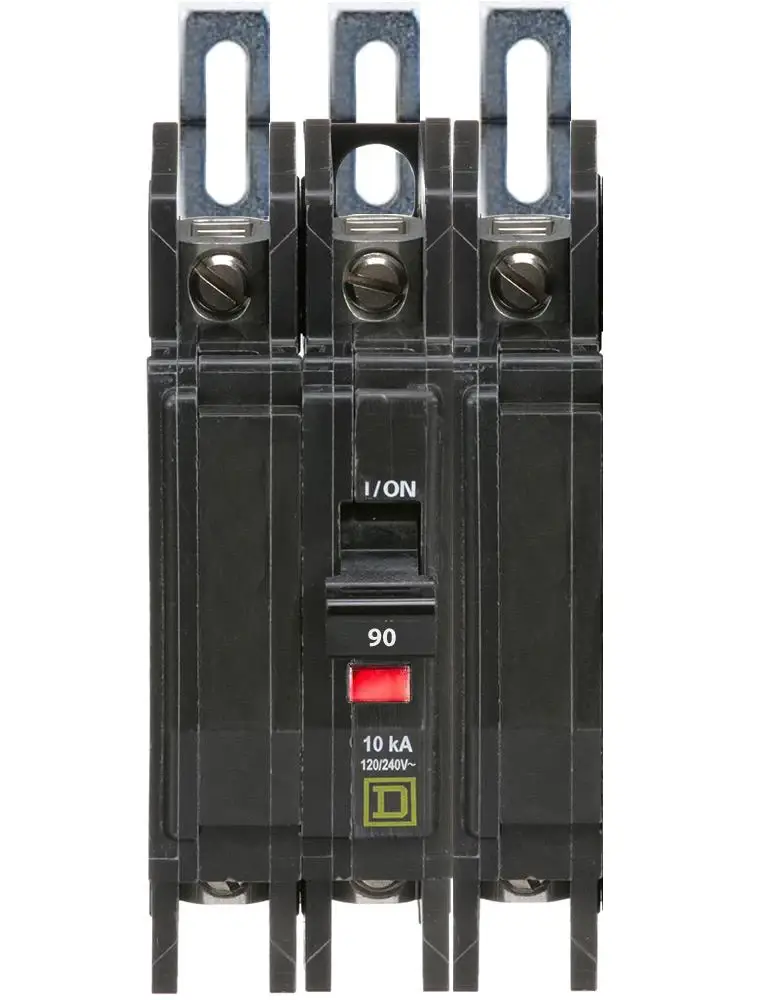

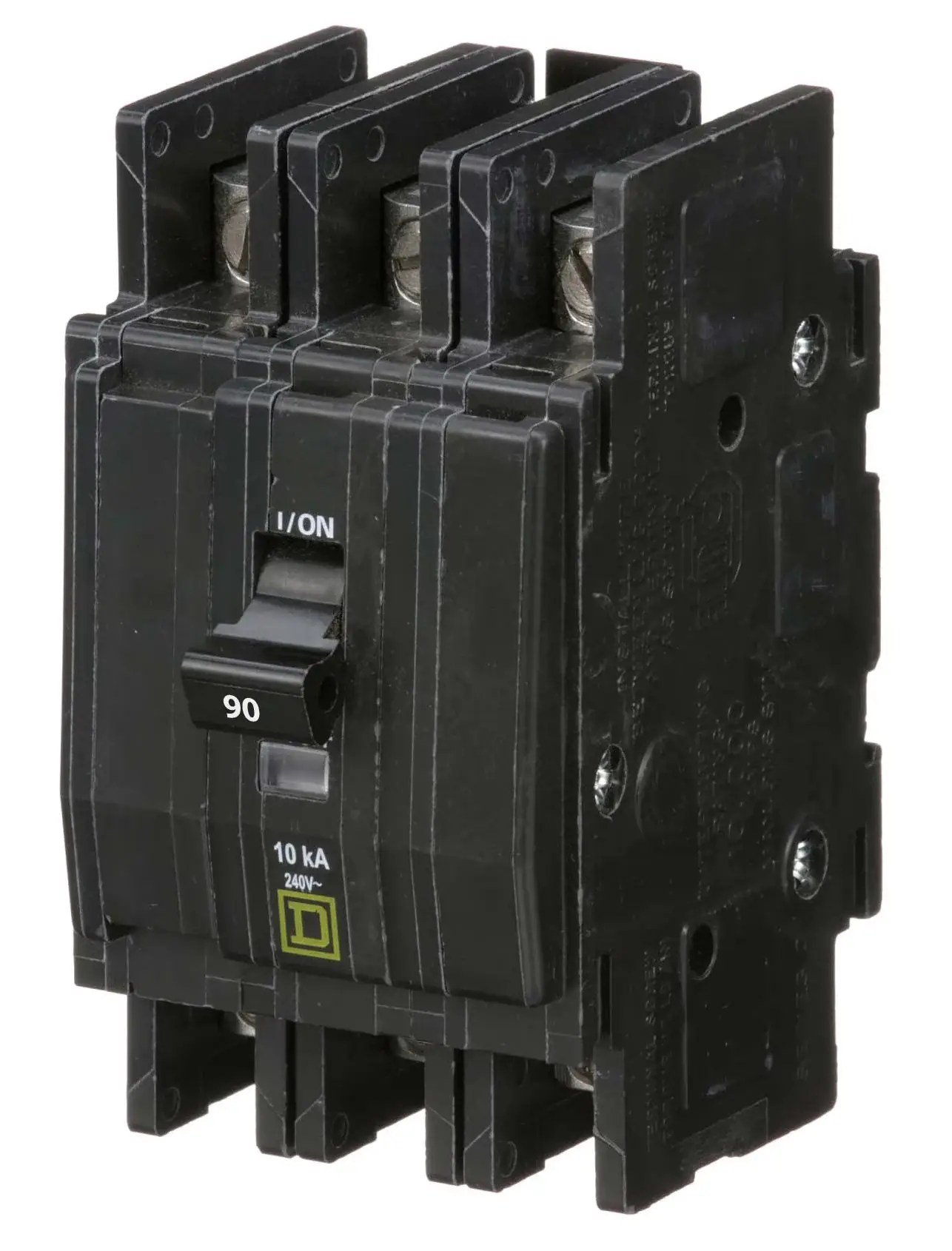

QOU390 – Square D – 90 Amp Circuit Breaker Bolt-On – 90 Amp – 3 Pole – 240 Volt

SKU: QOU390 Categories: ,

$191.99

Description

The Square D QOU390 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 120/240VAC, 48/60VDC. It has an interrupting rating of 10kA at 120/240VAC, 5kA at 48/60VDC. The QOU390 has a din rail mounting type and has a line and load lug terminal connection.

Specifications

Type Common Trip- Miniature- Standard
Number of Poles 3
Voltage Rating 120/240 Volt AC 50/60 Hertz- 60 Volt DC
Current Rating 90 Amp
Interrupting Rating 10 Kiloamp
Terminal Type Slotted Box Lug Line/Load
Wire Size 12 to 2/0 AWG (Copper/Aluminum)
Mounting DIN Rail/Unit/Surface/Flush
Used On OEM
Size 2.25 Inch Width x 2.95 Inch Depth x 4.45 Inch Height
Approval UL- CSA
Brand Name QO™
Model QOU
Additional Information RoHS/REACH Compliant- Tightening Torque Rating 45 Inch-Pound- Applicable Standard IEC
Features/Benefits Non-Reversible Line and Load Lugs- RoHS/REACH Compliant- Mercury-Free- Halogen-Free- HACR and Switching Duty Rated- Green Premium Product
